Register a guest directory

To register a guest directory for multi-tenancy, you need to configure both the home Azure Stack Hub directory and the guest directory. Configure Azure Stack Hub directory

The first step is to make your Azure Stack Hub system aware of the guest directory. In this example, the directory from Mary's company, Adatum, is called adatum.onmicrosoft.com.

1. Sign in to the Azure Stack Hub administrator portal and go to All services - Directories.

2. Select Add to start the onboarding process. Enter the guest directory name "adatum.onmicrosoft.com", and then select Add. (Step 1)

3. The guest directory appears in the list view, with a status of unregistered.

4. Only Mary has the credentials to authenticate to the guest directory, so you must send her the link to complete the registration. Select the adatum.onmicrosoft.com checkbox, and then select Register. (Step 2)

5. A new browser tab opens. Select Copy link at the bottom of the page, and provide it to Mary. (Step 3) 6. If you have the credentials for the guest directory, you can complete the registration yourself by selecting Sign in.

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/enable-multitenancy

Step 1: Connect to the Azure Resource Manager (ARM) endpoint

Compare to the steps in the note below.

Use https://adminmanagement.<region>.<domain>

Azure Resource Manager (administrator)

Adminmanagement.<region>.<fqdn>

Azure Resource Manager (user)

Management.<region>.<fqdn>

Step 2: Run the –Unregister-AzSGuestDirectoryTenant cmdlet.

Unregister a guest directory

If you no longer want to allow sign-ins to Azure Stack Hub services from a guest directory tenant, you can unregister the directory. Again, both the home Azure Stack Hub directory and guest directory need to be configured. Configure guest directory

Step 3: Instruct the global administrator of fabrikam.com to run the –unregister- AzsWithMyDirectoryTenant cmdlet.

Box 1: 3

3 registered, and one in need of an update.

Note: Update the Azure Stack Hub directories

When an Azure Stack Hub directory update is required, a status of Update Required is shown. For example:

To update the directory, select the Directory name checkbox, and then select Update.

Box 2: global administrator of ITHCSubAS2021.onmicrosoft.com

The guest directory ITHCSubAS2021.onmicrosoft.com needs an update.

Update the guest directory

An Azure Stack Hub operator should also inform the guest directory owner that they need to update their directory by using the URL shared for registration.

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/enable-multitenancy

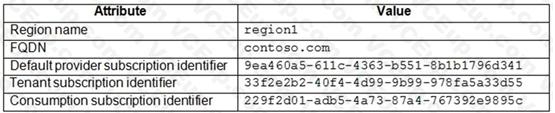

Box 1: https://management.contoso.com

Do not include the region1 in the URI.

Use management not adminmanagentment (see below).

Note: Tenant resource usage API reference

A tenant can use the tenant APIs to view the tenant's own resource usage dat a. These APIs are consistent with the Azure usage APIs. You can use the Windows PowerShell cmdlet Get-UsageAggregates to get usage data, just like in Azure.

API call

Request

The request gets consumption details for the requested subscriptions and for the requested time frame. There is no request body. Method Request URI

GET

https://{armendpoint}/subscriptions/{subId}/providers/Microsoft.Commerce/usageAggregates?reportedStartTime={reportedStartTime}&reportedEndTime={reportedEndTime}&aggregationGranularity ={granularity}&api-version=2015-06-01-preview&continuationToken={token-value}

Parameters

* Armendpoint

Azure Resource Manager endpoint of your Azure Stack Hub environment. The Azure Stack Hub convention is that the name of Azure Resource Manager endpoint is in the format https://management.{domain-name}. For example, for the development kit, the domain name is

local.azurestack.external, then the Resource Manager endpoint is https://management.local.azurestack.external. Box 2: 22f2d01-…

Use the tenant subscription identifier.

Parameters continued

* subId

Subscription ID of the user who is making the call. You can use this API only to query for a single subscription's usage. Providers can use the provider resource usage API to query usage for all tenants.

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-tenant-resource-usage-api Question No: 132

Box 1: BGP

BGP routing

Using a dynamic routing protocol like BGP guarantees that your system is always aware of network changes and facilitates administration. For enhanced security, a password may be set on the BGP peering between the TOR and the Border.

Box 2: Layer 3 uplinks with point-to-point connectivity

To integrate Azure Stack Hub to the network it requires uplinks from the Top-of-Rack switches (ToR) to the nearest switch or router, which on this documentation is referred as Border. The ToRs can be uplinked to a single or a pair of Borders.

The top of rack (TOR) switches require Layer 3 uplinks with Point-to-Point IPs (/30 networks) configured on the physical interfaces. Layer 2 uplinks with TOR switches supporting Azure Stack Hub operations isn't supported

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-border-connectivity

https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-network

Step 1: Connect to the administrator portal

Find a storage account

The list of storage accounts in the region can be viewed in Azure Stack Hub by following these steps:

1. Sign in to the administrator portal https://adminportal.local.azurestack.external.

2. Select All services > Storage > Storage accounts.

By default, the first 10 accounts are displayed. You can choose to fetch more by clicking the Load more link at the bottom of the list. Step 2: Open the Storage accounts blade.

Step 3: Select hr12943.

Once you've located the accounts you're interested in viewing, you can select the particular account to view certain details. A new pane opens with the account details. These details include the kind of account, creation time, location, and so on.

Step 4: Select Recover.

Recover a deleted account

You may be in a situation where you need to recover a deleted account.

In Azure Stack Hub, there's a simple way to do that:

Browse to the storage accounts list. For more information, see Find a storage account at the top of this article. Locate that particular account in the list. You may need to filter.

Check the state of the account. It should say Deleted.

Select the account, which opens the account details pane. (Step 3 above) On top of this pane, locate the Recover button and select it. (Step 4) Select Yes to confirm.

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-manage-storage-accounts

Add public IP addresses

Add the IP address range to Azure Stack Hub

In a browser, go to your administrator portal dashboard. For this example, we'll use

https://adminportal.local.azurestack.external.

Sign in to the Azure Stack Hub administrator portal as a cloud operator. (Step 1) On the default dashboard, find the Region management list and select the region you want to manage. For this example, we use local. Find the Resource providers tile and click on the network resource provider. (Step 2) Click on the Public IP pools usage tile. (Step 2) Click on the Add IP pool button. (Step 3) Provide a name for the IP pool. The name you choose helps you easily identify the IP pool. You can't use a special character like "/" in this field. It's a good practice to make the name the same as the address range, but that isn't required. Enter the address block you want to add in CIDR notation. For example: 192.168.203.0/24 When you provide a valid CIDR range in the Address range (CIDR block) field the Start IP address, End IP address and Available IP addresses fields will automatically populate. They're read-only and automatically generated so you can't change these fields without modifying the value in the Address range field. After you review the info on the blade and confirm that everything looks correct, select Ok to commit the change and add the address range to Azure Stack Hub.

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-add-ips

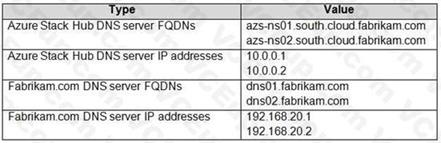

Box 1: Register-CustomDnsServer

Resolving external DNS names from Azure Stack Hub

To resolve DNS names for endpoints outside Azure Stack Hub (for example: www.bing.com), you need to provide DNS servers that Azure Stack Hub can use to forward DNS requests for which Azure Stack Hub isn't authoritative. For deployment, DNS servers that Azure Stack Hub forwards requests to are required in the Deployment Worksheet (in the DNS Forwarder field). Provide at least two servers in this field for fault tolerance. Without these values, Azure Stack Hub deployment fails.

Configure conditional DNS forwarding

Important

This only applies to an AD FS deployment.

To enable name resolution with your existing DNS infrastructure, configure conditional forwarding.

To add a conditional forwarder, you must use the privileged endpoint.

For this procedure, use a computer in your datacenter network that can communicate with the privileged endpoint in Azure Stack Hub. 1. Open an elevated Windows PowerShell session (run as administrator), and connect to the IP address of the privileged endpoint. Use the credentials for CloudAdmin authentication.

$cred=Get-Credential

Enter-PSSession -ComputerName <IP Address of ERCS> -ConfigurationName PrivilegedEndpoint - Credential $cred 2. After you connect to the privileged endpoint, run the following PowerShell command. Substitute the sample values provided with your domain name and IP addresses of the DNS servers you want to use.

Register-CustomDnsServer -CustomDomainName "contoso.com" -CustomDnsIPAddresses "192.168.1.1","192.168.1.2" Box 2: fabrikam.com The external DNS zone.

Box 3: “192.160.20.1”, “192.160.20.2”,

The IP addresses for the DNS servers in External DNS zone.

Reference:

https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-integrate-dns

Box 1: Microsoft legacy Cryptographic Service Provider (CSP) key provider Give an app access to Azure Stack Hub resources An application that deploys or configures resources through Azure Resource Manager must be represented by its own identity, known as a security principal. Just as a user is represented by a user principal, an app is represented by a service principal. Create an app registration that uses a certificate credential

When creating a certificate credential, the following requirements must be met:

* The cryptographic provider must be specified as a Microsoft legacy Cryptographic Service Provider (CSP) key provider. * The certificate format must be in PFX file, as both the public and private keys are required.

Windows servers use .pfx files that contain the public key file (TLS/SSL certificate file) and the associated private key file. * Etc.

Box 2: .pfx

Reference: https://learn.microsoft.com/en-us/azure-stack/operator/give-app-access-to-resources
