DELL D-PE-OE-23 Practice Test - Questions Answers

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

What is iDRAC?

The Integrated Dell Remote Access Controller (iDRAC) is a management solution built into Dell PowerEdge servers. It provides comprehensive, remote management capabilities, including system monitoring, configuration, and maintenance.

Default IP Address for iDRAC:

The default IPv4 IP address for iDRAC is: 192.168.0.120

Subnet Mask: 255.255.255.0

Default Gateway: Not set by default

Explanation of Options:

Option A: 192.168.1.120

Incorrect: This IP address is not the default for iDRAC.

Option B: 10.1.2.1

Incorrect: Not associated with iDRAC's default settings.

Option C: 10.1.1.1

Incorrect: Also not the default iDRAC IP address.

Option D: 192.168.0.120

Correct: This is the default IP address assigned to iDRAC interfaces.

Accessing iDRAC Using the Default IP:

Network Configuration:

Ensure your management station (laptop/PC) is configured with an IP address in the 192.168.0.x subnet, excluding 192.168.0.120.

Connecting to iDRAC:

Open a web browser and navigate to https://192.168.0.120

Accept any security warnings related to self-signed certificates.

Default Credentials:

Username: root

Password: calvin

Note: For security reasons, newer servers may require you to set a unique password upon initial setup.

Dell Operate

Reference:

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods: Knowing the default IP address is essential for initial access and configuration of the iDRAC.

System Administration (18%)

Verify health status and iDRAC license: Initial access to the iDRAC is necessary to verify system health and configure licensing options.

Conclusion:

The default IP address for the iDRAC on Dell PowerEdge servers is 192.168.0.120. This address is used for initial setup and can be changed during configuration to integrate with your network environment.

Identifying 16th Generation PowerEdge Rack Servers

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Position the server in the market landscape

Understanding Dell PowerEdge Server Generations and Models

Dell PowerEdge servers are categorized by generation (denoted as 'G') and model numbers. The 16th Generation (16G) represents the latest series of Dell servers as of 2023, featuring the newest technologies and enhancements.

Evaluation of Options:

Option A: R650

The PowerEdge R650 is a 15th Generation (15G) server.

Conclusion: Not a 16G server.

Option B: MX760C

The PowerEdge MX760c is a compute sled for the Dell PowerEdge MX7000 modular chassis.

Generation: It is part of the 16th Generation, but it is a modular blade server, not a rack server.

Conclusion: Since the question asks for rack servers, this may not be the best fit.

Option C: R760

The PowerEdge R760 is a 16th Generation rack server.

Features:

2U rack form factor

Supports latest Intel Xeon Scalable processors

Enhanced performance and scalability

Conclusion: Correct Answer.

Option D: C6620

The PowerEdge C6620 is a 15th Generation server designed for high-density compute environments.

Conclusion: Not a 16G server.

Option E: XE9680

The PowerEdge XE9680 is a 16th Generation rack server designed for extreme performance, particularly for AI and HPC workloads.

Features:

Supports up to eight GPUs

High-performance computing capabilities

Conclusion: Correct Answer.

Additional Notes:

Rack Servers vs. Modular Servers:

Rack Servers: Standalone servers that mount directly into standard server racks (e.g., R-series, XE-series).

Modular Servers: Compute modules that fit into a shared chassis (e.g., MX-series). While they can be mounted in racks, they are not considered standalone rack servers.

Dell Operate

Reference:

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature: Understanding model numbers helps identify the server generation.

Identify server features and specifications: Recognizing the characteristics of 16G servers.

Position the server in the market landscape: Knowing which servers are current and their intended workloads.

Conclusion:

The PowerEdge R760 and XE9680 are both 16th Generation rack servers. They represent the latest in Dell's server technology and are designed to meet modern data center needs.

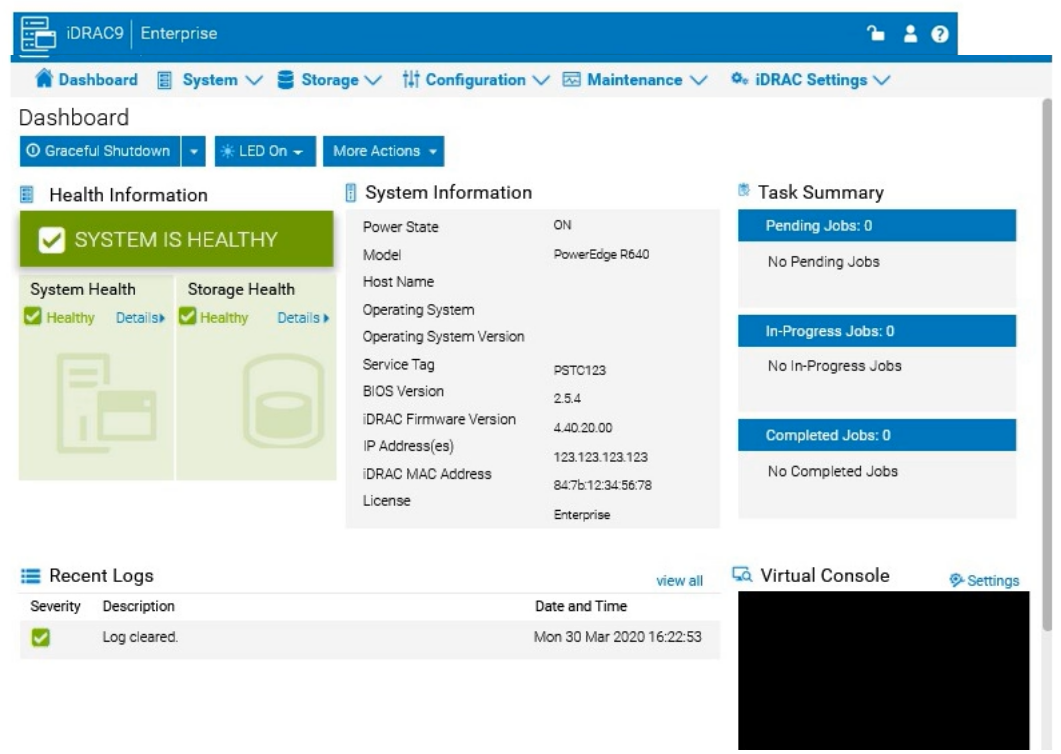

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication, depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it's a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

Dell PowerEdge servers are equipped with various LED indicators on the left control panel to provide immediate visual feedback about the server's status and component health. These indicators help in quickly identifying and troubleshooting issues without needing to access the system logs immediately.

Analyzing the Visual Indicators (Server Troubleshooting - 32%)

As per the 'Server Troubleshooting' section, one of the key skills is to 'Analyze the visual indicators on server components - system ID, PSU, and BLINK.'

Color Codes and Their Meanings

Solid Green Light: Indicates normal operation.

Blinking Green Light: Indicates activity (such as data transfer).

Solid Amber Light: Indicates a fault or error condition.

Blinking Amber Light: Indicates a critical error or failure.

Application to the PCIe Card Indicator

In this scenario, the customer notices that an indicator on the left control panel has turned solid amber. Specifically, this indicator is associated with the PCIe card.

Option A: 'PCIe card is present.'

Presence is usually indicated by a solid green light, not amber.

Option B: 'PCIe card performing a firmware update.'

Firmware updates are often indicated by blinking lights but typically not solid amber.

Option C: 'PCIe card temperature is normal.'

Normal temperature conditions would not trigger an amber light; instead, they would maintain a solid green light.

Option D: 'PCIe card experiences an error.'

A solid amber light directly correlates with an error condition in the component.

Conclusion

Given the meaning of the solid amber indicator and its association with error conditions in Dell PowerEdge servers, the correct interpretation is that the PCIe card is experiencing an error.

Dell Operate Reference

Server Components (26%): Understanding server components like PCIe cards is crucial.

Server Troubleshooting (32%): Analyzing visual indicators is a key troubleshooting step.

Analyze the visual indicators on server components: Knowing the significance of LED colors aids in swift problem identification.

Understanding the iDRAC Direct USB Port and Its Default IP Address

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Overview of iDRAC Direct USB Port

The Integrated Dell Remote Access Controller (iDRAC) provides remote management capabilities for Dell PowerEdge servers. The iDRAC Direct USB port allows administrators to connect directly to the iDRAC interface using a USB cable, facilitating quick and secure server management without needing network access.

Default IP Address for iDRAC Direct USB Port

When an administrator connects to the iDRAC Direct USB port, the connection is assigned a default IP address to establish communication between the server and the management station. The default IP address is crucial for accessing the iDRAC web interface via a browser.

The default IP address for the iDRAC Direct USB connection is 169.254.0.3.

Explanation of Options

Option A: 169.254.0.3

Correct Answe r: This is the default IP address assigned to the iDRAC Direct USB port for direct management access.

Option B: 169.254.0.4

Incorrect: This IP address is not the default for the iDRAC Direct USB port.

Option C: 192.168.1.20

Incorrect: While this is a common private IP address, it is not used by default for iDRAC Direct USB connections.

Option D: 192.168.0.20

Incorrect: Similar to Option C, this is a private IP address but not associated with the iDRAC Direct USB port.

Dell Operate Reference

Server Management and Configuration Tools (14%): Understanding different connection methods to iDRAC is essential.

Define the function of the iDRAC, login procedures, licensing, and connection methods: Knowledge of default IP addresses and connection protocols is crucial for effective server management.

Conclusion

Knowing the default IP address for the iDRAC Direct USB port allows administrators to establish a direct connection efficiently, ensuring quick access for configuration and troubleshooting tasks.

ocating Lifecycle Logs in the iDRAC UI

Server Troubleshooting (32%)

Explain the server logs and memory error

Understanding Lifecycle Logs

The Lifecycle Controller logs (Lifecycle Logs) are essential for tracking system events related to hardware configuration, firmware updates, and system health. These logs provide valuable information for troubleshooting and auditing purposes.

Accessing Lifecycle Logs in iDRAC UI

In the iDRAC web interface, administrators can navigate through various sections to access system information and logs.

To locate the Lifecycle Logs:

Log into the iDRAC Web Interface using your administrative credentials.

Navigate to the 'Maintenance' Tab:

This section is dedicated to maintenance tasks and logs.

Select 'System Event Log' or 'Lifecycle Log' under the Maintenance section to view the detailed logs.

Explanation of Options

Option A: System

Incorrect: This section provides system overview and hardware information but does not contain the Lifecycle Logs.

Option B: System Event Log

Incorrect: While this log contains events, the Lifecycle Logs are specifically found under the Maintenance section.

Option C: Diagnostics

Incorrect: This area is used for running diagnostic tests, not for accessing Lifecycle Logs.

Option D: Maintenance

Correct Answe r: The Lifecycle Logs are located under the Maintenance heading in the iDRAC

UI.

Dell Operate Reference

Server Troubleshooting (32%): Accessing and interpreting server logs is vital for diagnosing issues.

Explain the server logs and memory error: Understanding where logs are stored helps in efficient troubleshooting.

Server Management and Configuration Tools (14%): Navigating the iDRAC UI is crucial for system administration tasks.

Conclusion

By knowing that the Lifecycle Logs are located under the Maintenance section, administrators can quickly access important system event information necessary for troubleshooting and maintaining server health.

Understanding iDRAC Group Management and Compatibility

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

Scenario Analysis

The customer has acquired six Dell PowerEdge R750 servers and wants to add them to an existing iDRAC Group that currently contains R760 servers. However, they are encountering errors during this process.

Understanding Dell Server Generations

PowerEdge R750: Part of the 15th Generation (15G) servers.

PowerEdge R760: Part of the 16th Generation (16G) servers.

iDRAC Group Manager Limitations

iDRAC Group Manager allows administrators to manage multiple servers from a single interface.

Important Limitation: Servers of different generations cannot be grouped together in iDRAC Group Manager.

This is due to differences in firmware, hardware capabilities, and iDRAC features between server generations.

Impact: Attempting to add 15G servers (R750) to a group containing 16G servers (R760) will result in errors.

Evaluation of Options

Option A: R750 iDRACs firmware is out of date

Analysis: While outdated firmware can cause issues, it is not the primary reason here. Firmware updates would not resolve the incompatibility between different server generations.

Option B: R750 iDRACs are not running the same version of firmware

Analysis: Similar to Option A, firmware version mismatches can cause problems but not errors related to grouping different generations.

Option C: 15G and 16G servers cannot be in the same group

Correct Answe r: This is the primary reason for the errors encountered.

Option D: The feature requires iDRAC Enterprise

Analysis: Since the customer already has an existing iDRAC group with R760 servers, they likely have the necessary licensing.

Dell Operate Reference

Server Management and Configuration Tools (14%)

Emphasizes understanding iDRAC functionalities and limitations.

System Administration (18%)

Highlights the importance of group management and its constraints.

Conclusion

The errors occur because iDRAC Group Manager does not support grouping servers from different generations. The customer cannot add 15G servers (R750) to a group that contains 16G servers (R760).
