Refer to the exhibit. What can be determined from this show command?

Traffic below 100 KB is marked as congested

ECN is enabled for all DSCP values

There is a 10% probability that traffic is marked as congested

What are three characteristics of VLAN translation?

VLAN translation is not supported on MC-LAG port channel interfaces.

Trunk or access ports can be configured as members of any VLANs that are not used as an SVLAN.

SVLAN configuration for both Q-in-Q VLAN tunneling and VLAN translation is possible on the same interface.

VLAN translation is not supported on MC-LAG port channel interfaces.

Trunk or access ports can be configured as members of any VLANs that are not used as an SVLAN.

By default, VLAN stacking is enabled on Z9432F-ON switches.

The SVLAN header is replaced with a VNI if the provider network uses a VXLAN overlay.

SVLAN configuration for both Q-in-Q VLAN tunneling and VLAN translation is possible on the same interface.

Refer to the exhibit. Which three actions can a customer take to change interface Eth1/10 to operate in access mode for VLAN 40?

Configure the access mode for the switch port.

Remove the current access VLAN configuration.

Enter it into the relevant interface.

Configure the access mode for the switch port.

Shut down the relevant interface.

Remove the current access VLAN configuration.

Enter it into the relevant interface.

Refer to the exhibit. What is the purpose of the static route?

Provide a route to the 12.0.0.0 network.

Provide a route to the 192.168.45.0 network.

Verify that the 12.0.0.0 network is active and reachable.

Verify that devices in VLAN 45 are reachable.

An administrator for a service provider uses this command on a switch: What is the result of running the command?

Maps the VLAN traffic that an SVLAN identifies to a VNI on a VTEP

Maps the VLAN traffic that a CVLAN identifies to a VNI on a VTEP

Maps the VLAN traffic that a TPID identifies to a VNI on a VTEP

Maps the VLAN traffic that an SVLAN identifies to a VNI on a VTEP

What are the supported modes for the QSFP28 ports on an S5248F?

1x100G, 1x40 G, 2x50 G, and 4x25 G

1x100G, 1x40 G, 4x25 G, and 4x10 G

1x200G, 1x100 G, 1x40 G, and 4x25 G

1x400G, 2x200 G, 4x25 G. and 4x10 G

What are two characteristics of route maps in Enterprise SONIC?

The permit or deny clause In route maps permits or rejects the matching routes from being redistributed.

They are a series of commands that contain a matching criterion and action.

Route-map names are not case-sensitive.

The permit or deny clause In route maps permits or rejects the matching routes from being redistributed.

They are a series of commands that contain a matching criterion and action.

Each route map clause has the type values of Match. Set. and Act.

Which network devices route unencapsulated user traffic in a symmetric IRB overlay network?

Source VTEP and destination VTEP

Capability extended next hop router and leaf router

Autonomous system boundary router and source VTEP

An administrator issues The ztp enable and show ztp status commands. What two objectives are they trying to accomplish?

Administratively enable the ZTP process.

Check on the progress of the ZTP process.

Administratively enable the ZTP process.

Remove the ZTP function from the switch.

Check on the progress of the ZTP process.

Which two additional Q-in-Q VLAN tunnel configuration steps must be followed if the provider network uses a VXLAN overlay?

Map the SVLAN traffic to a VNI.

Remove the CVLAN-to-SVLAN mapping.

Configure the BGP route-target and route-distinguisher.

Enterprise SONiC Switch 1 and Switch 2 are part of a symmetric VXLAN fabric in a data center environment. Switch 1 has learned MAC addresses from its local VLANs.What role does BGP EVPN play in this scenario?

Distributes locally learned MAC addresses to Switch 2

Establishes Layer 2 connectivity between Switch 1 and Switch 2

Enables efficient communication across the VXLAN fabric

What does show interface breakout port slot/slot command display?

The breakout modes available to that port

The Error/Debug status of the breakout of the port

The breakout modes available to that port

The In Progress/Complete status of the breakout of the port

Refer to the exhibit. What type of route is shown?

Type 2 host route from another VTEP

Type 3 host route from external VTEP

Type 2 host route from another VTEP

Type 3 host route from another VTEP

Type 5 host route from another VTEP

A Layer 3 routing feature to forward traffic using multiple available paths

A routing protocol database filter supporting a maximum of four paths

A round-robin path distribution mechanism

A routing protocol with multipath support

What is a correct use-case scenario for ZTP in Enterprise SONiC?

The user wants to replace a failed unit and use an automatic script.

The user wants single pane of glass monitoring.

The user wants to replace a failed unit and use an automatic script.

The user wants multivendor switch deployment.

The user wants to configure the switch manually using the CLI.

What is the purpose of the write erase boot command option?

Delete the startup and enable zero touch provisioning.

Remove user-installed packages and tile changes.

Delete the startup configuration and the management interface configuration.

Delete the running configuration and all user accounts.

Which three actions are required to route traffic sourced from voice servers to a dedicated Internet link''

Create an ACL that selects IPs of voice servers

Attach a policy to the egress interface

Create a policy-map and attach the configured class-map and set the next-hop IP

Create a class-map and attach an ACL with the IP of the next-hop to it.

Create an ACL that selects IPs of voice servers

Attach a policy to the egress interface

Create a policy-map and attach the configured class-map and set the next-hop IP

Create a class-map and attach that ACL.

What is the impact of entering the qos-mode uniform command on a VTEP interface?

The payload DSCP value is copied to the outer header DSCP value.

The DCSP values for the local and remote VTEPs are synchronized.

The local VNI value is aligned to the VNI of the remote VTEP interface.

A uniform VNI value is configured on local and remote VTEP interfaces.

The payload DSCP value is copied to the outer header DSCP value.

Refer to the exhibits. PC1 has a valid address on the 192.168.10.0 network, and PC2 has a valid address on the 192.168.20.0 network.What happens when a ping command is issued between PC1 and PC2?

The ping is unsuccessful because there is no route from switch 1 to the 192.168.20.0 network.

The ping is successful because there is a route to 10.0.1.1, which is connected to 1(10.2.2, which is connected to PC2.

The ping is unsuccessful because there is no route to the VLAN 10 gateway address of 192.168.10.254.

The ping is successful because there are two routes from switch1 to switch2 which are connected to PC2.

The ping is unsuccessful because there is no route from switch 1 to the 192.168.20.0 network.

DELL D-SNC-DY-00 Practice Test 1 - Free Online Exam Prep & Questions

Question 1 / 40

SIMULATION

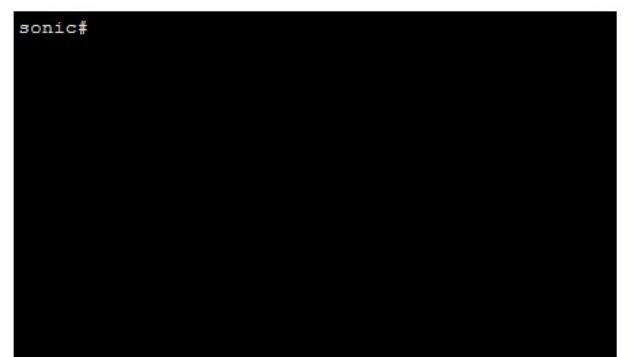

Use the simulator to perform the following configuration task.

1. Map a single-tagged CVLAN 100 to SVLAN 200 translation on PE

switch interface Eth1/1.

2. Map a double-tagged VLAN packet with an outer CVLAN 100 and an inner dot1q 200 to SVLAN 300 translation on PE switch interface

Eth1/2.

The necessary VLANs and VLAN stacking have already been configured.

DELL D-SNC-DY-00 image Question 1 22636 09162024193714000000

see the explanation for all step by step solution with all explanation

Comment (0)

Suggested answer: A

Explanation:

Here are the steps to configure the required VLAN translations on a Dell SONiC switch:

Map a Single-Tagged CVLAN 100 to SVLAN 200 on Interface Eth1/1:

sonic# configure terminal

sonic(config)# interface Ethernet1/1

sonic(config-if-Ethernet1/1)# switchport mode trunk

sonic(config-if-Ethernet1/1)# switchport vlan mapping 100 200

sonic(config-if-Ethernet1/1)# end

sonic# write memory

Map a Double-Tagged VLAN Packet with Outer CVLAN 100 and Inner dot1q 200 to SVLAN 300 on Interface Eth1/2:

sonic# configure terminal

sonic(config)# interface Ethernet1/2

sonic(config-if-Ethernet1/2)# switchport mode trunk

sonic(config-if-Ethernet1/2)# switchport vlan mapping 100 200 300

sonic(config-if-Ethernet1/2)# end

sonic# write memory

Comprehensive Detailed Step by Step Explanation with

Reference:

Enter Configuration Mode:

Access the global configuration mode using the configure terminal command.

Configure Interface Eth1/1:

Enter interface configuration mode for Ethernet1/1 using the command interface Ethernet1/1.

Set the switchport mode to trunk with the command switchport mode trunk.

Configure the VLAN translation using the switchport vlan mapping 100 200 command, which maps CVLAN 100 to SVLAN 200.

Exit the interface configuration mode by typing end.

Save the configuration with write memory.

Configure Interface Eth1/2:

Enter interface configuration mode for Ethernet1/2 using the command interface Ethernet1/2.

Set the switchport mode to trunk with the command switchport mode trunk.

Configure the double-tagged VLAN translation using the switchport vlan mapping 100 200 300 command, which maps packets with outer CVLAN 100 and inner dot1q 200 to SVLAN 300.

Exit the interface configuration mode by typing end.

Save the configuration with write memory.

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to configure VLAN translations on a Dell SONiC switch, ensuring that the specific requirements for single-tagged and double-tagged VLAN mappings are met.
