The Dell EMC XtremIO X2 Storage Array uses Data at Rest Encryption (D@RE) to encrypt data. This encryption occurs on the Self Encrypting Drives (SEDs) within the Data Availability Enclosures (DAE). The DAEs house the physical drives where the actual data is stored and encrypted1.

Introduction to Dell EMC XtremIO X2 Storage Array document2.

Dell EMC XtremIO v6.3 document1.

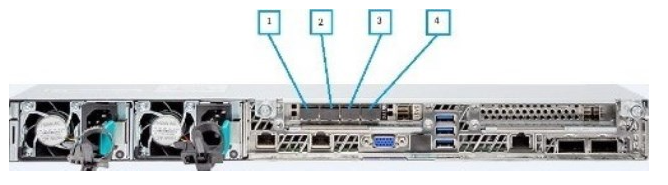

To maximize the connectivity between Storage Controllers and Fibre Channel switches, all available ports should be utilized. This ensures redundancy and maximizes throughput. The exhibit provided shows a Storage Controller with four ports labeled 1, 2, 3, and 4. Without specific design documents, the general best practice is to use all available ports for such connections, assuming the ports are configured for Fibre Channel traffic and the infrastructure supports it.

General best practices for Fibre Channel connectivity and port usage are discussed in various Dell EMC documents, such as the ''Introduction to XtremIO X2 Storage Array'' and ''Configuring Fibre Channel Storage Arrays'' documents12.

Specific port configurations and their usage would be detailed in the Dell XtremIO Design documents, which would provide definitive guidance on which ports to use for connecting to Fibre Channel switches.

To consolidate the management of an XtremIO environment, the minimum number of XtremIO Management Server (XMS) machines required depends on the compatibility of the XMS with the various XtremIO Operating System (XIOS) versions present in the environment. A single XMS can manage multiple clusters as long as the XIOS versions are within the same major release family or are compatible with the XMS version.

Given the XIOS versions listed:

Two clusters running XIOS 4.0.2-80

Two clusters running XIOS 4.0.4-41

Two clusters running XIOS 4.0.25-27

Two XtremIO X2 clusters running XIOS 6.0.1-27_X2

All the clusters running XIOS version 4.x can be managed by a single XMS because they belong to the same major release family. The XtremIO X2 clusters running XIOS 6.0.1-27_X2 would typically require a separate XMS that supports the 6.x family. However, it is possible for a single XMS to manage both 4.x and 6.x clusters if the XMS version is compatible with both, which is often the case with newer XMS versions that support a wider range of XIOS versions.

Therefore, the minimum number of XMS machines required to manage all the listed clusters, assuming compatibility, is one.

Dell community discussions on vXMS version compatibility1.

Introduction to XtremIO X2 Storage Array document, which may include details on XMS and XIOS compatibility2.

XtremIO Bulletin Volume I-A 2022 for XIOS and XMS version guidelines3.

For environments expected to grow significantly (more than 150 TB physical capacity), it is better to start with an X2-R cluster and add additional X2-R X-Bricks as needed. X2-R configurations are designed for a variety of use cases and can handle larger capacities and high-performance requirements.

MPIO (MultiPath I/O) is required for Fast I/O Failure for the AIX operating system as it helps in managing multiple paths for redundancy and failover.

The Performance Monitor (PerfMon) is a built-in tool in Windows that allows users to monitor and analyze the performance of their system in real time123456. It provides a visual display of built-in Windows performance counters, either in real time or as a way to review historical data7. You can add performance counters to Performance Monitor by dragging and dropping, or by creating custom Data

When designing an Oracle solution for a customer using XtremIO, it's important to consider the best practices for performance and efficiency.

Option OD, ''Allocate multiple LUNs per host, Use Thin formatting on the ESXi'', is a recommended best practice for Oracle environments12.

Allocating multiple LUNs per host can help distribute the I/O load more evenly across the storage system, which can improve performance1. This is particularly important in Oracle environments, where there can be a high level of concurrent I/O activity1.

Using Thin formatting on the ESXi is also recommended. Thin provisioning is a storage provisioning method that optimizes the efficient use of available space. For a thin virtual disk, ESXi provisions the entire space required for the disk's current and future activities, but the thin disk uses only as much storage space as the disk needs for its initial operations3. If the disk requires more space, it can expand into its entire provisioned space3.

The other options, while they may be part of the overall

The Dell EMC XtremIO X2 storage array offers flexible scaling options with building blocks called X-Bricks1. The system can start with a single X-Brick and scale up to 72 SSDs for a single X-Brick1. When additional performance and capacity are required, the system can be expanded by adding additional X-Bricks1.

Among the options provided, VMware is the host OS that supports both 512 bytes and 4 KB XtremIO logical block (LB) volumes23. VMware vSphere 6.7 and later versions support both 512-byte and 4K logical block sizes23. This is because VMware ESXi detects and registers the 4Kn devices and automatically emulates them as 512e3.

The other options, while they may be part of the overall process, are not specifically known to support both 512 bytes and 4 KB XtremIO logical block (LB) volumes:

Linux typically supports multiple file system block sizes of 512, 1024, 2048, and 40964. However, it's not specifically mentioned that it supports both 512 bytes and 4 KB XtremIO logical block volumes5.

IBM AIX also supports multiple file system block sizes of 512, 1024, 2048, and 40966. But again, it's not specifically mentioned that it supports both 512 bytes and 4 KB XtremIO logical block volumes7.

HP-UX does not specifically mention support for both 512 bytes and 4 KB XtremIO logical block volumes89.

Therefore, the verified answer is A. VMware, as it is the host OS that supports both 512 bytes and 4 KB XtremIO logical block (LB) volumes23.

Explore

I/O Elevators refer to the I/O scheduling algorithms used in operating systems to control how I/O operations are submitted to storage12. These algorithms, also known as elevators, determine the order in which I/O requests from different processes or devices are serviced by the underlying hardware, such as hard drives or solid-state drives (SSDs)12. The goal of these algorithms is to improve the efficiency of data access and reduce the time wasted by disk seeks3.

The other options provided are not typically referred to as I/O Elevators:

Option OB, ''The maximum number of consecutive 'sequential' I/Os allowed to be submitted to storage'', refers to a specific parameter of a storage system, not an I/O Elevator4.

Option OC, ''Setting which controls for how long the ESX host attempts to login to the iSCSI target before failing the login'', refers to a specific setting in ESXi host configuration, not an I/O Elevator567.

Option OD, ''The amount of SCSI commands (including I/O requests) that can be handled by a storage device at a given time'', refers to the command handling capacity of a storage device, not an I/O Elevator89.

Therefore, the verified answer is A. I/O scheduling algorithm which controls how I/O operations are submitted to storage, as it accurately describes what I/O Elevators are according to the Dell XtremIO Design Achievement document10 and other sources123.
