The ''Small IO Alerts'' feature in XtremIO is designed to notify administrators when a significant number of small I/O operations are detected, which could potentially impact the performance of the storage array. The threshold for these alerts is typically set to a default value that considers the architecture and performance characteristics of the system. In the case of XtremIO, the alert is triggered when I/O operations are smaller than 4 KB1. This threshold is set based on the understanding that smaller I/O sizes can lead to inefficient utilization of the storage array's resources and can be an indicator of suboptimal application behavior or configuration.

When managing multiple XtremIO X2 clusters, the XtremIO Management Server (XMS) is designed to manage multiple clusters efficiently. According to the Official Dell XtremIO Deploy Achievement document, one XMS can manage up to 16 X-Brick clusters. This capability is part of the XMS's design to provide centralized management and monitoring for large-scale deployments, allowing administrators to manage a significant number of clusters from a single interface1.

The XMS provides a comprehensive set of management features, including performance monitoring, alerting, reporting, and configuration management for all connected XtremIO clusters. It simplifies the administration of multiple clusters by providing a unified view and control over the entire XtremIO environment1.

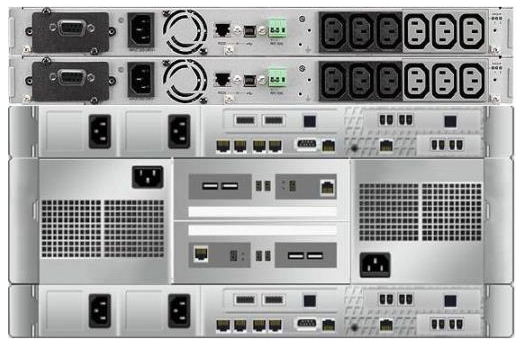

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller's left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable Explanation:connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB

Verify the Answer: Based on the information provided, the correct power cable Explanation:connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

Power on the Storage Controllers.

Power on the physical XMS server.

Power on the BBUs

Power the PDUs

To update the Install base record for Dell XtremIO in addition to the PSNT, the following data needs to be provided:

Microcode Version: This refers to the firmware version running on your XtremIO system. It's essential to have the latest microcode version reported for support and maintenance purposes.

Installation Configuration: This includes details about the XtremIO system's setup, such as cluster configuration, number of X-Bricks, and any custom settings applied during the installation.

The process of updating the Install base record typically involves:

Gathering Information: Collect the microcode version from the XtremIO Management Server (XMS) interface and document the installation configuration details.

Submitting the Data: Provide the collected information to Dell Support or through the appropriate channel as directed in the Dell XtremIO Deploy Achievement documentation.

Verification: Dell Support may verify the provided information against their records and the actual system configuration to ensure accuracy.

Record Update: Once verified, Dell Support will update the Install base record with the new information.

For detailed instructions and the official procedure, refer to the Dell XtremIO Deploy Achievement document1. It's crucial to follow the official guidelines to ensure that the Install base record is accurately updated, which can be critical for effective support and maintenance of the XtremIO system.

The likely cause of the issue where the e-mail server is not receiving expected notifications for major severity issues is that event handlers have not been defined. Event handlers in the XtremIO system are responsible for triggering actions, such as sending email notifications, when certain events or conditions are met. If these handlers are not properly defined, the system will not know to send out notifications upon the occurrence of specified events1.

To resolve this issue, the storage administration team should:

Access the XtremIO web interface.

Navigate to the event handlers section.

Define new event handlers or verify that existing ones are correctly configured to trigger email notifications for major severity issues.

Ensure that the event handlers are linked to the correct alert definitions that correspond to major severity issues.

Test the event handlers to confirm that notifications are being sent as expected.

When initializing a cluster for the first time with the create-cluster command on an XtremIO X2, the required parameter is the 'package'. This parameter specifies the software package that will be used to create the cluster. It is essential because it determines the version of the operating system and management software that will be installed on the cluster nodes.

The 'package' parameter is part of the command syntax and must be provided for the command to execute successfully. Without specifying the package, the command would not know which software to install, leading to an incomplete or failed initialization process.

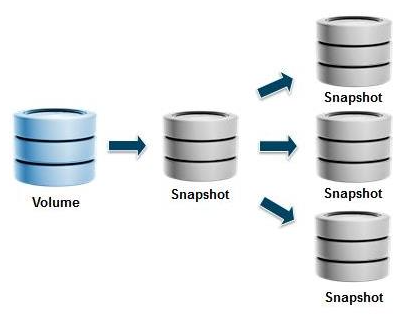

In the XtremIO environment, snapshots are treated as unique volumes that are independent of their ancestors. When a snapshot is created, it is essentially a point-in-time copy of the data from the source volume. These snapshots operate independently and do not affect the performance or data integrity of the original volume. Any changes made to a snapshot do not impact the ancestor volume, and vice versa. This allows for efficient use of storage resources and enables multiple users to work with their own copies of the database without affecting the original data.

The process of using snapshots of snapshots, also known as cascaded snapshots, is efficient in XtremIO due to the system's unique data reduction and copy data management (CDM) capabilities. Since only changes from the original are stored, it minimizes the additional storage space required for each user's copy of the database. This approach is particularly beneficial when the same process needs to be repeated daily, as it saves time and storage resources1.
