Microsoft DP-203 Practice Test - Questions Answers, Page 10

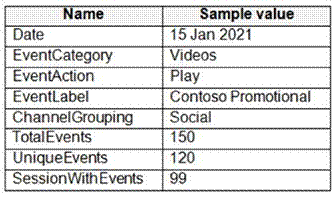

Box 1: DimEvent

Box 2: DimChannel

Box 3: FactEvents

Fact tables store observations or events, and can be sales orders, stock balances, exchange rates, temperatures, etc

Reference:

https://docs.microsoft.com/en-us/power-bi/guidance/star-schema

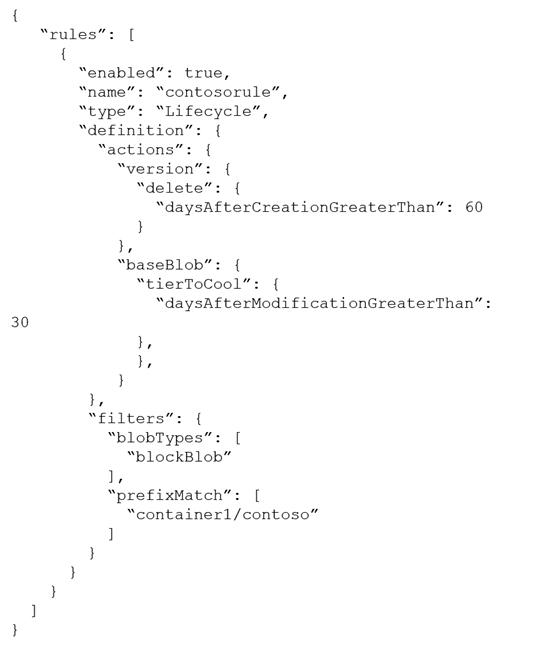

Box 1: moved to cool storage

The ManagementPolicyBaseBlob.TierToCool property gets or sets the function to tier blobs to cool storage. Support blobs currently at Hot tier.

Box 2: container1/contoso.csv

As defined by prefixMatch.

prefixMatch: An array of strings for prefixes to be matched. Each rule can define up to 10 case-senstive prefixes. A prefix string must start with a container name.

Reference:

https://docs.microsoft.com/en-us/dotnet/api/microsoft.azure.management.storage.fluent.models.managementpolicybaseblob.tiertocool

Box 1: Store the infrastructure logs in the Cool access tier and the application logs in the Archive access tier For infrastructure logs: Cool tier - An online tier optimized for storing data that is infrequently accessed or modified. Data in the cool tier should be stored for a minimum of 30 days. The cool tier has lower storage costs and higher access costs compared to the hot tier.

For application logs: Archive tier - An offline tier optimized for storing data that is rarely accessed, and that has flexible latency requirements, on the order of hours. Data in the archive tier should be stored for a minimum of 180 days.

Box 2: Azure Blob storage lifecycle management rules

Blob storage lifecycle management offers a rule-based policy that you can use to transition your data to the desired access tier when your specified conditions are met. You can also use lifecycle management to expire data at the end of its life.

Reference:

https://docs.microsoft.com/en-us/azure/storage/blobs/access-tiers-overview

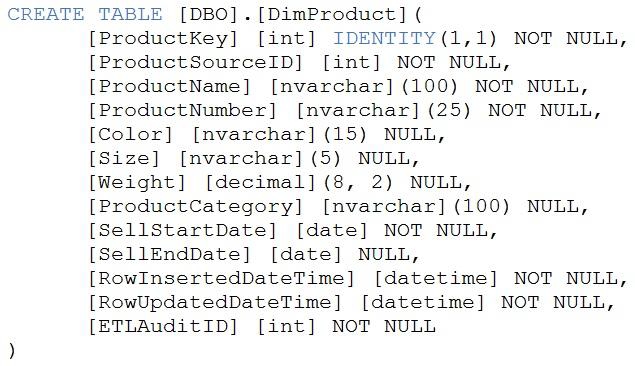

Box 1: Denormalize to a second normal form

Denormalization is the process of transforming higher normal forms to lower normal forms via storing the join of higher normal form relations as a base relation. Denormalization increases the performance in data retrieval at cost of bringing update anomalies to a database.

Box 2: New identity columns

The collapsing relations strategy can be used in this step to collapse classification entities into component entities to obtain ?at dimension tables with single-part keys that connect directly to the fact table. The single-part key is a surrogate key generated to ensure it remains unique over time.

Example:

Note: A surrogate key on a table is a column with a unique identifier for each row. The key is not generated from the table data. Data modelers like to create surrogate keys on their tables when they design data warehouse models. You can use the IDENTITY property to achieve this goal simply and effectively without affecting load performance.

Reference:

https://www.mssqltips.com/sqlservertip/5614/explore-the-role-of-normal-forms-in-dimensional-modeling/

https://docs.microsoft.com/en-us/azure/synapse-analytics/sql-data-warehouse/sql-data-warehouse-tables-identity

Box 1: partitionBy

We should overwrite at the partition level.

Example:

df.write.partitionBy("y","m","d")

.mode(SaveMode.Append)

.parquet("/data/hive/warehouse/db_name.db/" + tableName)

Box 2: ("StoreID", "Year", "Month", "Day", "Hour", "StoreID")

Box 3: parquet("/Purchases")

Reference:

https://intellipaat.com/community/11744/how-to-partition-and-write-dataframe-in-spark-without-deleting-partitions-with-no-new-data

Step 1: Create an external data source

You can create external tables in Synapse SQL pools via the following steps:

CREATE EXTERNAL DATA SOURCE to reference an external Azure storage and specify the credential that should be used to access the storage. CREATE EXTERNAL FILE FORMAT to describe format of CSV or Parquet files. CREATE EXTERNAL TABLE on top of the files placed on the data source with the same file format.

Step 2: Create an external file format object

Creating an external file format is a prerequisite for creating an external table.

Step 3: Create an external table

Reference:

https://docs.microsoft.com/en-us/azure/synapse-analytics/sql/develop-tables-external-tables

Step 1: Create an external data source that uses the abfs location Create External Data Source to reference Azure Data Lake Store Gen 1 or 2

Step 2: Create an external file format and set the First_Row option. Create External File Format.

Step 3: Use CREATE EXTERNAL TABLE AS SELECT (CETAS) and configure the reject options to specify reject values or percentages To use PolyBase, you must create external tables to reference your external data. Use reject options.

Note: REJECT options don't apply at the time this CREATE EXTERNAL TABLE AS SELECT statement is run. Instead, they're specified here so that the database can use them at a later time when it imports data from the external table. Later, when the CREATE TABLE AS SELECT statement selects data from the external table, the database will use the reject options to determine the number or percentage of rows that can fail to import before it stops the import.

Reference:

https://docs.microsoft.com/en-us/sql/relational-databases/polybase/polybase-t-sql-objects

https://docs.microsoft.com/en-us/sql/t-sql/statements/create-external-table-as-select-transact-sql

Box 1: PARTITION

RANGE RIGHT FOR VALUES is used with PARTITION.

Part 2: [TransactionDateID]

Partition on the date column.

Example: Creating a RANGE RIGHT partition function on a datetime column The following partition function partitions a table or index into 12 partitions, one for each month of a year's worth of values in a datetime column.

CREATE PARTITION FUNCTION [myDateRangePF1] (datetime)

AS RANGE RIGHT FOR VALUES ('20030201', '20030301', '20030401', '20030501', '20030601', '20030701', '20030801',

'20030901', '20031001', '20031101', '20031201');

Reference:

https://docs.microsoft.com/en-us/sql/t-sql/statements/create-partition-function-transact-sql
