Microsoft DP-203 Practice Test - Questions Answers, Page 16

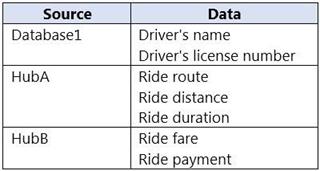

HubA: Stream

HubB: Stream

Database1: Reference

Reference data (also known as a lookup table) is a finite data set that is static or slowly changing in nature, used to perform a lookup or to augment your data streams. For example, in an IoT scenario, you could store metadata about sensors (which don’t change often) in reference data and join it with real time IoT data streams. Azure Stream Analytics loads reference data in memory to achieve low latency stream processing

Reference:

https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-use-reference-data

Box 1: LAG

The LAG analytic operator allows one to look up a “previous” event in an event stream, within certain constraints. It is very useful for computing the rate of growth of a variable, detecting when a variable crosses a threshold, or when a condition starts or stops being true.

Box 2: LIMIT DURATION

Example: Compute the rate of growth, per sensor:

SELECT sensorId,

growth = reading -

LAG(reading) OVER (PARTITION BY sensorId LIMIT DURATION(hour, 1)) FROM input

Reference:

https://docs.microsoft.com/en-us/stream-analytics-query/lag-azure-stream-analytics

Box 1: Azure Stream Analytics

Box 2: Hopping

Hopping window functions hop forward in time by a fixed period. It may be easy to think of them as Tumbling windows that can overlap and be emitted more often than the window size. Events can belong to more than one Hopping window result set. To make a Hopping window the same as a Tumbling window, specify the hop size to be the same as the window size.

Box 3: Point within polygon

Reference:

https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-window-functions

Box 1: fail until the node comes back online

We see: High Availability Enabled: False

Note: Higher availability of the self-hosted integration runtime so that it's no longer the single point of failure in your big data solution or cloud data integration with Data Factory.

Box 2: lowered

We see:

Concurrent Jobs (Running/Limit): 2/14

CPU Utilization: 6%

Note: When the processor and available RAM aren't well utilized, but the execution of concurrent jobs reaches a node's limits, scale up by increasing the number of concurrent jobs that a node can run

Reference:

https://docs.microsoft.com/en-us/azure/data-factory/create-self-hosted-integration-runtime

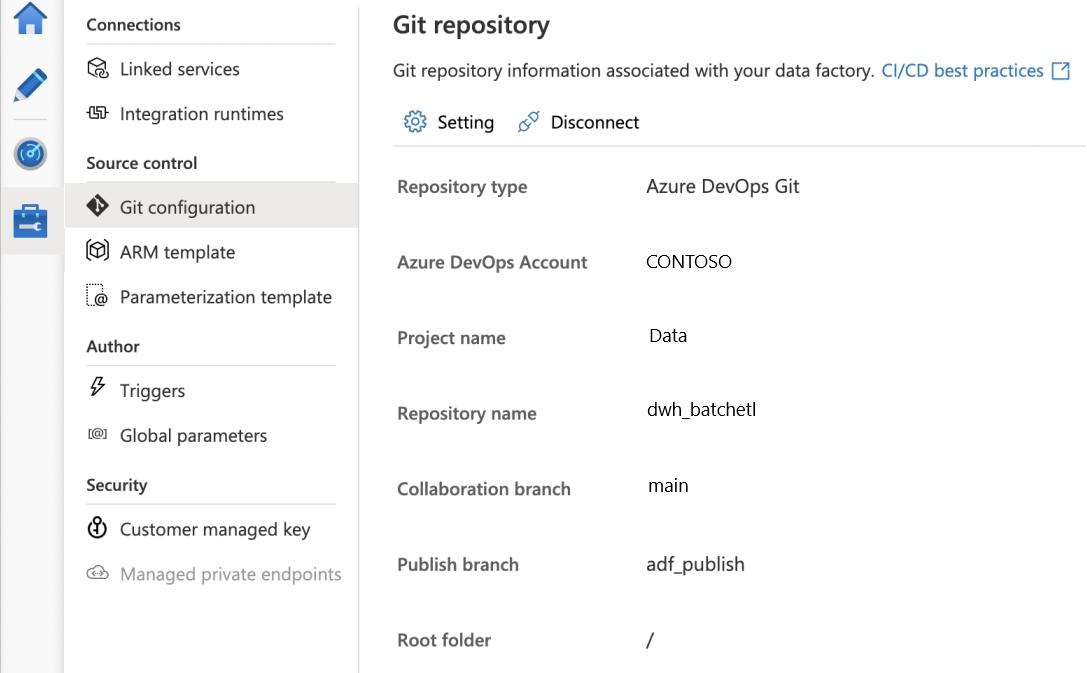

Box 1: adf_publish

The Publish branch is the branch in your repository where publishing related ARM templates are stored and updated. By default, it's adf_publish.

Box 2: / dwh_batchetl/adf_publish/contososales

Note: RepositoryName (here dwh_batchetl): Your Azure Repos code repository name. Azure Repos projects contain Git repositories to manage your source code as your project grows. You can create a new repository or use an existing repository that's already in your project.

Reference:

https://docs.microsoft.com/en-us/azure/data-factory/source-control

Box 1: timestamp by

Box 2: TUMBLINGWINDOW

Tumbling window functions are used to segment a data stream into distinct time segments and perform a function against them, such as the example below. The key differentiators of a Tumbling window are that they repeat, do not overlap, and an event cannot belong to more than one tumbling window.

Reference:

https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-window-functions

Box 1: Set the Copy method to PolyBase

While SQL pool supports many loading methods including non-Polybase options such as BCP and SQL BulkCopy API, the fastest and most scalable way to load data is through PolyBase. PolyBase is a technology that accesses external data stored in Azure Blob storage or Azure Data Lake Store via the T-SQL language.

Box 2: Set the Copy method to Bulk insert

Polybase not possible for text files. Have to use Bulk insert.

Reference:

https://docs.microsoft.com/en-us/azure/synapse-analytics/sql/load-data-overview

Box 1: Incremental load

Box 2: Tumbling window

Tumbling windows are a series of fixed-sized, non-overlapping and contiguous time intervals. The following diagram illustrates a stream with a series of events and how they are mapped into 10-second tumbling windows.

Reference:

https://docs.microsoft.com/en-us/stream-analytics-query/tumbling-window-azure-stream-analytics

Step 1: an asymmetric key

A master key should be created only once in a database. The Database Master Key is a symmetric key used to protect the private keys of certificates and asymmetric keys in the database.

Step 2: a database scoped credential

Create a Database Scoped Credential. A Database Scoped Credential is a record that contains the authentication information required to connect an external resource. The master key needs to be created first before creating the database scoped credential.

Step 3: an external data source

Create an External Data Source. External data sources are used to establish connectivity for data loading using Polybase.

Reference:

https://www.sqlservercentral.com/articles/access-external-data-from-azure-synapse-analytics-using-polybase
