Refer to the exhibit. An administrator is troubleshooting network issues on a customer's network PE1 cannot form an LDP relationship with PE2 using LDP ID 192 168.1.1. Due to this connectivity issue, the customer's routes behind both PE routers cannot be exchanged. Which action must the administrator take to correct the problem?

Configure PE1 with a static route to 192 168.1.1.

Configure PE2 to automatically select its own LDP router ID with 192.168.1.1.

Create a targeted LDP session on PE2 to override the missing routing table entry on PEL

Configure PE1 with a static route to 192 168.1.1.

Enable LDP session protection on the link that P1 uses as the next hop to PE2.

Refer to the exhibit. An engineer is troubleshooting connectivity issues on the MPLS core network. A customer connected through R4 cannot reach the OSPF domain on R5. While checking the routing table of R1, the engineer cannot see all the routes from R3 and R5. Which task must the engineer perform so that R4 is able to reach R5?

Enable OSPF peering and configure route redistribution between routers R4 and R1.

Enable route filtering between routers R1 and R3.

Enable MP-BGP peering on routers R1. R3, R4, and R5.

Enable OSPF on the Area-0 routers and configure MP-BGP between routers R1 and R3.

Refer to the exhibit An engineer is configuring service traffic from router R1 to R6 as shown. Which additional configuration must the engineer implement so that the LDP and SR domains will participate and interwork with each other?

Router2(config)# segment-routing Router2(config-sr)# mapping-server Router2(config-sr-ms)# prefix-sid-map Router2(config-sr-ms-map)# address-family ipv4 Router2(config-sr-ms-map-af)# 10.1.1.1/32 500 range 50

Router2(config)# segment-routing Router2(config-sr)# ldp mapping-server Router2(config-sr-ms)# prefix-sid-map Router2(config-sr-ms-map)# Router2(config-sr-ms-map-af)# 2.2.2.2/32 500 range 4

Router2(config)# segment-routing Router2(config-sr)# sr mapping-server Router2(config-sr-ms)# ldp-sid-map Router2(config-sr-ms-map)# address-family ipv4 Router2(config-sr-ms-map-af)# 10.1.1.1/32 500 range 50

Router2(config)# segment-routing Router2(config-sr)# mapping-server Router2(config-sr-ms)# prefix-sid-map Router2(config-sr-ms-map)# address-family ipv4 Router2(config-sr-ms-map-af)# 10.1.1.1/32 500 range 50

Router2(config)# segment-routing Router2(config-sr)# ldp mapping-server Router2(config-sr-ms)# prefix-sid-map Router2(config-sr-ms-map)# address-family ipv4 Router2(config-sr-ms-map-af)# 2.2.2.2/32 500 range 40

Refer to the exhibit. VPN users that are connected to PE routers are facing network issues. Traffic that originates from CE1 drops before reaching CE2. An engineer finds no outgoing traffic statistics on PE1 and PE2 routers toward CE devices and finds that the PE1 router is running the older software image. Which action must be implemented to resolve the issues?

Enable CEF-based forwarding on PE1 router.

Enable LDP protocol on PE1 and PE2 routers.

Advertise P1 router loopback on PE1 in OSPF.

Enable CEF-based forwarding on PE1 router.

Advertise PE2 router loopback on PE1 in OSPF.

What are the two characteristics of route reflectors? (Choose two.)

If a router received an iBGP route with the originator-ID attribute set to its owm router ID, the route is discarded.

Routes received from a route reflector Client are reflected to other clients and nonclient peers.

If a router received an iBGP route with the originator-ID attribute set to its owm router ID, the route is discarded.

Routes received from nonclient peers are reflected to route reflector clients as well as nonclient peers.

Routes received from nonclient peers are reflected to route renector cluster as well as OSPF peers.

If a route reflector receives a route with a cluster-list attribute containing a different cluster ID, the route is discarded.

Routes received from a route reflector Client are reflected to other clients and nonclient peers.

Refer to the exhibit. Refer to the exhibit After recent configuration changes to a customer's network, a network engineer notices that R2 cannot communicate with R3 Both FastEthemet interfaces on R2 and R3 are up and configured with the correct IP addresses MD5 password configured en R2 and R3 match with no issues What is the minimum change the engineer must make to enable R2 and R3 to communicate and fix the problem?

Configure a loopback interface on R2 and assign it to area 0.

Define area 2 as a NSSA on R2 and R3

Configure virtual links between RI and R3.

Configure interface F0/0 on RI and R2 to be in area O.

Refer to the exhibit. Refer to the exhibit. Customers A and C are experiencing packet drops when connecting to the application server While troubleshooting the problem the network engineer confirms that the IS-lS Level- 1/2 adjacency is up between routers A B C. and D and both customers can communicate with the database server without packet loss Which action must the engineer take to resolve the issue?

Advertise the application server subnet in the router D IS-IS database

Advertise a static default route to the router B IS-IS database.

Leak the 172, 17.10/24 route in the IS-IS databases on routers A and C.

Leak the customer A and customer C subnets in the router A IS-IS database.

Refer to the exhibit. Refer to the exhibit. Multicast traffic destined from T1 and T2 routers to RP routers works well. A network engineer observes problems with multicast traffic flows between Site-A and Site-B. Site-A users fail to receive multicast stream on Site-B via RPTY site, while Site-B users fail to receive multicast stream on Site-Avia RPTZ site. Which action must be implemented to resolve the issues?

Allow the OSPF and MSDP packets on the firewall.

Establish MDSP peering with interface IP subnet.

Configure Site-A and Site-B in 10.80.14804

Allow the OSPF and MSDP packets on the firewall.

Configure direct OSPF peering between Site-A and Ste-B

Refer to the exhibit. Refer to the exhibit. Routers CE1 and CE2 are in AS 65530. which is multihomed for Internet access. An engineer expects inbound traffic to AS 65530 to arrive from PE1. but it is coming from PE2 instead PE1 and PE2 routers are connected with CE routers through the same bandwidth Which action must be taken to correct the problem?

Set the local-preference value on router CEI to 100 or greater

On router CE2, configure inbound routes from PE2 to CE2 with a local-preference value of 50 or greater.

Configure router CEI to prepend the AS path to routes it receives from PE 1.

Set the local-preference value on router CEI to 100 or greater

On router PEI , change the origin for routes that are redistributed from CEI to CE2.

Refer to the exhibit. Refer to the exhibit. Customer A is a small media company with two offices connected by a 512 Kbps line. Their NY office is connected to several external partners by static routes on router R3. VoIP services use VoIP codec G729 Users reported poor voice quality and slow data transfer between the offices A network engineer configured ip tcp header-compression iphc-format on R2 and R3 routers Which additional action must the engineer take to fix the issue?

Configure the summary-address 10.10.0.0 255.255.240.0 command on R3 to optimize OSPF communication

Configure the ip ospf I area O command under Serial 1/1 interfaces on R2 and R3 to avoid routing loops

Change the OSPF router ID on either router so that the router IDs are unique.

Configure the summary-address 10.10.0.0 255.255.240.0 command on R3 to optimize OSPF communication

Configure the BGP routing protocol between R2 and R3 to control route propagation.

Refer to the exhibit. Refer to the exhibit While troubleshooting a networking issue an engineer identified a suboptimal communication issue on route reflector RR2 In the current environmentRouter A is a non-route-reflector client for RR1 and RR2Routers D and E are directly connected iBGP peers.Router F is not an iBGP peer of routers D and EWhich action resolves the issue?

Enable next-hop-self for BGP peering on router C.

Disable BGP Client-to-Client reflection on router RR2.

Enable next-hop-self for BGP peering on router C.

Remove the route-reflector configuration on router RR2.

Enable next-hop-self for BGP peering on router D.

What is a requirement of PIM-SM?

It requires Cisco Express Forwarding to be enabled.

It must be enabled on loopback interfaces only

It requires OSPF to be configured on the network.

Refer to the exhibit. Refer to the exhibit Networks 172.16.31.0/24 and 172 16 30.0/24 are advertised in area 34. and network 172.22 10.0/24 is advertised in area 0. A recent security review discovered that users connected to routers R1 and R2 have been making unauthorized access to an application running on network 172 16 31 0/24 An engineer determined that routers R1 and R2 are receiving updates for network 17 16 31 0/24 Which action resolves the issue?

Apply route filtering on router R4 only.

Apply route filtering on routers R3 and R4.

Apply route filtering on router R3 only.

Apply route filtering on routers RI and R2

Apply route filtering on router R4 only.

Refer to the exhibit. Refer to the exhibit. An engineer is troubleshooting an issue with this network and notices that prefixes from R3 are missing on the R1 routing table Due to repeated ASN when the 10 0 0 0'8 prefix from R3 arrives at R1, BGP automatically rejects it There is no prefix-list on R1 which blocks the traffic from R3 What should the engineer do to fix the problem so that BGP allows that prefix on R1?

Configure the allowas-in command on R1.

Configure R2 as a route reflector client of R1.

Configure the allowas-in command on R1.

Configure the next-hop-self command on R2.

Configure identical confederation ASNs on R1 and R2.

Refer to the exhibit. Refer to the exhibit A network engineer configured the redistribute connected subnets route-map filtering command on R1 to redistribute connected interfaces to the OSPF process The engineer also wants to filter out IP address 10 0 1 0/24. but the prefix still appears in the routing tables of the other routers on the network. Which action corrects the problem?

Change the deny statement in access list 2 to permit

Add a set statement to route-map sequence 20.

Change the deny statement in access list 2 to permit

Remove the subnets keyword from the redistribute connected subnets route-map filtering command.

Refer to the exhibit. Refer to the exhibit. Network connectivity between bank A and bank B has been lost Users at bank A and bank B are able to successfully reach their directly connected PE routers. All routers in OSPF area 0 are correctly advertising and learning routing updates. Which action resolves the issue?

Configure MPLS with an end-to-end label-switched path on each router.

Enable next-hop-self under the iBGP peering configuration on routers PEI and PE2

Configure the P routers to redtstnbute BGP routes within OSPF area 0.

Configure router PI to advertise the IP prefix of PEI.

Configure MPLS with an end-to-end label-switched path on each router.

Refer to the exhibit. Refer to the exhibit A network engineer installed a new router (router 3) at the regional hub running MPLS services for scalability Router 3 is connected to the 10.44 4.0,'24. 10.44 5.024. 10 44.6.0/24. and 10 44 7 0/24 subnets The new router has been configured for OSPF area 2. and it is advertising the four connected networks. The engineer noticed that the same networks are listed as interarea summary routes, and they are being flooded into each area on the area borders Which action resolves the issue?

Under the OSPF configuration on router 2, add area 2 range 10.44.4.0 255.255.252.0.

On router 3, configure an access list to filter the networks.

On router 2, configure a route map to filter the networks.

Under the OSPF configuration on router 3. add area 2 range 10.44.4.0 255.255.252.0.

Under the OSPF configuration on router 2, add area 2 range 10.44.4.0 255.255.252.0.

How does SRv6 function on the control plane?

The Ingress node of the SR domain adds a uSlD format IPv6 header to carry the SRv6 locator.

It enables SRH-capable nodes to terminate IPv6 packets at the network egress to carry the SRv6 locator.

The Ingress node of the SR domain adds a uSlD format IPv6 header to carry the SRv6 locator.

The ingress node of the SR domain swaps the SRv6 header for the IPv6 header

The egress node of SR domain imposes a new outer header

Refer to the exhibit. Refer to the exhibit An engineer is troubleshooting a networking issue with several symptomsThe shortest path from router R1 to R8 is underused and the longest path is overusedTraffic from 10.1.1 1 to 10 8 8 8 is routed on the longest pathTraffic between the R1 and the application server is experiencing packet drops and latency problems.Which action resolves the issue?

Configure a Level 2 IS-IS domain on router RI.

Configure route leaking for the IP address Of the application server on router RI.

Increase the RI to R2 link metric to 20.

Configure a Level 2 IS-IS domain on router RI.

Block the advertisement of the application server IP address to router R6.

Refer to the exhibit. Refer to the exhibit The branch office in area 10 is connected to HQ via Frame Relay uplinks with bandwidth constraints After a recent implementation of QoS on the R2 and R3 networks the system has been logging %SYS-2-MALLOCFAIL: Memory allocation of 65536 bytes failed from 0x224E321, alignment 0 messages To reduce traffic load and memory utilization on R2 and R3 the network engineer configured R1 to announce only one user subnet per location by issuing the summary address 192.168.0.0 255.255.248.0 command en R1 However, the engineer noticed that router R2 still has two routes and a summary address from HQ and R3 also has two routes from HQ Which two actions must the engineer take on R1 to fix the issue so that only one route is announced' (Choose two.)

Configure a summary route for Level 1-Level 2 devices.

Configure a summary route for Level 1 devices.

Configure the subnet range with the network command under the IS-IS process.

Configure RI as a Level 1 device.

Redistribute both routes into the ISIS process.

Configure a summary route for Level 1-Level 2 devices.

Configure a summary route for Level 1 devices.

Refer to the exhibit. Refer to the exhibit Reuters R2. R3, R4 and R5 all reside in the same area, with R1 in a different area R3 is overutilized and the engineer wants to reduce its CPU load The engineer configured router R4 to summarize routes that it receives from R5. but R3 is still receiving all of the R5 routes. Which action resolves the issue?

Configure R2 as a Level 1 router

Configure the summary routes on R5

Configure R4 as a Level I-Level 2 router

What Is a characteristic of a segment routing mapping server?

It must be placed in the core of the network.

It applies SID mappings from one IGP instance to another IGP instance.

Which difference must an engineer consider when Implementing Inter-domain and Intra-domain multicast routing on the network?

Intra-domain routing is dependent on the RP router within the same SP network, but inter-domain routing reduces the dependency on the other SP network.

Intra-domain routing allows the service provider to control incoming and outgoing multicast data streams on its network, but inter-domain routing limits the service provider's control.

Intra-domain routing uses the PIM and MBGP protocols for multicast routing, but inter-domain routing must use PIM.SSM or MSDP.

Intra-domain routing is dependent on the RP router within the same SP network, but inter-domain routing reduces the dependency on the other SP network.

Inter-domain routing supports policy routing to connect different multicast domains using PIM.SM, but intra-domain routing supports policy routing using PIM-SM only within a single domain.

Refer to the exhibit. Refer to the exhibit. A network engineer configured three new PE routers to expand the network. The new routers run in the IS-IS routing protocol and reside in the data center in the same exchange as the existing routers. However, the network is now experiencing suboptimal routing. The Layer 2 configuration and VLANs are configured correctly to provide segregation between networks, but the Level 1 routes are not being converted to Level 2 routes. Which action resolves the issue?

On Router 2. summarize internal routes between areas.

On Router 1, redistribute the routes into IGP.

On Router 1, summarize internal routes between areas.

On Router 2, redistribute the routes into IGP.

On Router 2. summarize internal routes between areas.

Refer to the exhibit. Refer to the exhibit. A network engineer just replaced five routers on this OSPF network. When the routing protocol is brought up, R5 cannot reach routes that originate on R1. The engineer verified that all connected links have established neighbor relationships. R5 reaches routes originating on R3 and R4. Which action resolves the issue?

Configure an OSPF virtual link to bridge Area 0 on routers R3 and R4.

Configure automatic neighbor discovery on RI and R5.

Configure OSPF to have a contiguous Area O.

Configure each link to be point-to-point.

What is the purpose of ACL type prefix set entries in RPL prefix sets?

They hold IPv4 or IPv6 prefix match specifications.

They hold IPv4 or IPv6 prefixes that do not match specifications.

They hold IPv4 or IPv6 prefix match specifications.

They hold IPv6 prefix match specifications.

They hold IPv4 prefixes that do not match specifications.

Refer to the exhibit. Refer to the exhibit. MPLS traffic from 192.168.4.0/24 to 192.168.5.0/24 is failing to pass over the link from R4 to R2. The engineer verified that:Cisco Express Forwarding Is enabled on all routers.All routers reach all networks via OSPF.MPLS traffic from 192.168.1.0/24 to 192.168.3.0/24 is passing normally over the link from R1 to R2.Which action resolves the issue?

On router R2, configure the mpls ip command on the SIO/O/4 interface.

On router R4, remove the mpls ip command on the s/O/O/2 interface.

On router R2, configure the mpls ip command on the SIO/O/4 interface.

On router R4, configure the mpls label protocol Idp command on all serial interfaces.

On router R2, configure the mpls label protocol Idp command on the interface.

Refer to the exhibit. Refer to the exhibit. A service provider has LDP and segment routing running in the network. Mobility traffic is carried through LDP and enterprise traffic is carried through segment routing. Which configuration must be implemented to connect the bank branch with the HUB site on routers?

Configure segment-routing sr-prefer prefix-list on CR1 and CR2 routers for 10.20.20.10/24.

Configure segment-routing Sr-prefer prefix-list on AG1 and AG2 router for 10.10.10.10/24.

Enable segment-routing Mpls Sr-prefer on CR1 and CR2 routers for 10.0.0.0/8.

Enable segment-routing Mpls Sr-prefer on AG1 and AG2 routers for 10.0.0.0/8.

Configure segment-routing sr-prefer prefix-list on CR1 and CR2 routers for 10.20.20.10/24.

Cisco 300-510 Practice Test 4 - Free Online Exam Questions 121-160

Refer to the exhibit.

Cisco 300-510 image Question 121 63879133849717289741667

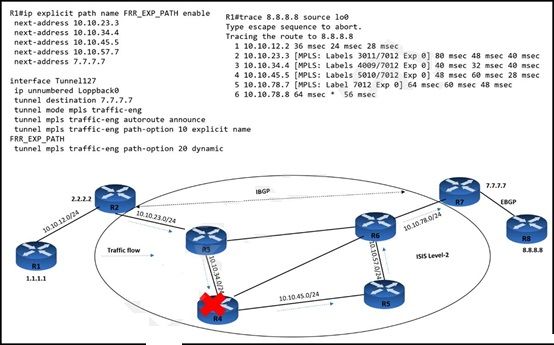

An MPLS core network has connectivity issues R4 has failed. It impacts traffic loss between R1 and R8. Customers report no access to their file servers, which delays their transformation work. Which quick action resolves the issue until R4 recovers?
