Huawei H12-224 Practice Test - Questions Answers, Page 10

Add to Whishlist

List of questions

Question 91

Report Export Collapse

Which statements about VLAN are true? (Choose three.)

The VLAN improves network security. Users on different VLANs cannot communicate with each other.
The VLAN improves network security. Users on different VLANs cannot communicate with each other.
The VLAN improves network processing efficiency. Users on different VLANs are separated from each other. Therefore, the size of a broadcast domain is reduced.
The VLAN improves network processing efficiency. Users on different VLANs are separated from each other. Therefore, the size of a broadcast domain is reduced.
Layer 2 forwarding is only based on destination MAC addresses, and is irrelevant to VLAN configuration.
Layer 2 forwarding is only based on destination MAC addresses, and is irrelevant to VLAN configuration.
The VLAN technology is a management method that controls the communication between terminals.
The VLAN technology is a management method that controls the communication between terminals.
Suggested answer: A, B, D
asked 18/09/2024
Martien de Kleijn
34 questions

Question 92

Report Export Collapse

In STP, BPDU packet is carried by ( ).

IP packet
IP packet
TCP packet
TCP packet
Ethernet frame
Ethernet frame
UDP packet
UDP packet
Suggested answer: C
asked 18/09/2024
Timothy Brown
35 questions

Question 93

Report Export Collapse

Which statements about VLAN allocation are true? (Choose three.)

The IP subnet VLAN is used to send the packets from the specified network segment or IP address over the specified VLAN.
The IP subnet VLAN is used to send the packets from the specified network segment or IP address over the specified VLAN.
The MAC address- or IP subnet-based VLAN is valid for only the untagged packets.
The MAC address- or IP subnet-based VLAN is valid for only the untagged packets.
The protocol-based VLAN has a higher priority than the IP subnet-based VLAN.
The protocol-based VLAN has a higher priority than the IP subnet-based VLAN.
The protocol-based VLAN indicates that service types on the network are bound to VLANs.
The protocol-based VLAN indicates that service types on the network are bound to VLANs.
Suggested answer: A, B, D
asked 18/09/2024
Andrew Naftel
41 questions

Question 94

Report Export Collapse

According to the STP protocol, a certain field in the BPDU identifies the root switch. That is, if the BPDU sent by a switch contains this field, this switch is considered as the root switch. What is this field?

Root Identifier
Root Identifier
Root Path Cost
Root Path Cost
Bridge Identifier
Bridge Identifier
Port Identifier
Port Identifier
Suggested answer: A
asked 18/09/2024
JAVIER MALDONADO
37 questions

Question 95

Report Export Collapse

In the network diagram, which switch will be selected as the root switch?

SWA
SWA
SWB
SWB
SWC
SWC
None of the above
None of the above
Suggested answer: A
asked 18/09/2024
Charles Hagan
39 questions

Question 96

Report Export Collapse

Which are 802.1x authentication modes? (Choose two.)

EAP relay mode
EAP relay mode
Proxy mode
Proxy mode
EAP termination mode
EAP termination mode
Remote mode
Remote mode
Suggested answer: A, C
asked 18/09/2024
MM rahn
44 questions

Question 97

Report Export Collapse

STP elects ( )

One bridge as the Root Bridge and another one as the Backup Root Bridge
One bridge as the Root Bridge and another one as the Backup Root Bridge
One bridge as the Root Bridge
One bridge as the Root Bridge
Two bridges as the Root Bridge
Two bridges as the Root Bridge
One Designated Bridge
One Designated Bridge
Suggested answer: B
asked 18/09/2024
test fdf
53 questions

Question 98

Report Export Collapse

How many port states are defined by STP?

3
3
4
4
5
5
6
6
Suggested answer: C
asked 18/09/2024
JP Brune
45 questions

Question 99

Report Export Collapse

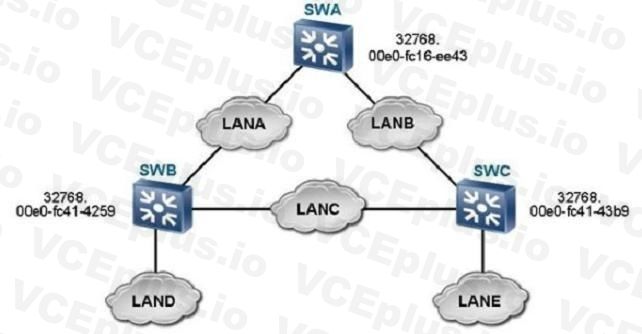

As shown in the figure, when the STP network runs properly, which device does the designated port of LANC reside?

Huawei H12-224 image Question 99 31318 09182024192138000000

SWA
SWA
SWB
SWB
SWC
SWC
None of the above
None of the above
Suggested answer: B
asked 18/09/2024
Grant Taylor
63 questions

Question 100

Report Export Collapse

Each STP switch has a unique switch ID. Which two entries does the switch ID contain?

Two-byte switch priority
Two-byte switch priority
Six-byte MAC address
Six-byte MAC address
Two-byte switch priority and six-byte MAC address
Two-byte switch priority and six-byte MAC address
Six-byte switch priority and six-byte MAC address
Six-byte switch priority and six-byte MAC address
Suggested answer: C
asked 18/09/2024
Matt Harrold
47 questions
