Question 521

(0)

Which of the following route selection mechanisms can adopt user-defined policies to determine data forwarding paths flexibly based on ACLs or packet lengths?

Question 522

(0)

What are the functions of an IGMPv2 Query message? (Choose three.)

Question 523

(0)

What are the differences between the IGMP versions? (Choose two.)

Question 524

(0)

What is the maximum number of bits that can be used for subnetting, when the network address is a Class C address?

Question 525

(0)

The most remarkable characteristic of OSPF is that it can support the link-state algorithm.

Question 526

(0)

Which of the following statements about multicast MAC addresses are true? (Choose three.)

Question 527

(0)

IGMP interface group report information Ethernet6/1/1(40.1.1.1): The preceding information shows the entry status of an IGMP interface on Ethernet 6/1/1 on a router. Assume IGMP sends the group-

Question 528

(0)

Which of the following route selection tools can be used in "multiple" routing protocols, be configured with matching conditions, and be composed of if-match and apply clauses?

Question 529

(0)

Which of the following protocols support default route advertisement by using commands? (Choose three.)

Question 530

(0)

MPLS is a switching standard defined by the IETF. Which of the following devices exist on the MPLS network? (Choose two.)

Question 521

Which of the following route selection mechanisms can adopt user-defined policies to determine data forwarding paths flexibly based on ACLs or packet lengths?

AS-path-filter

IP-prefix

Route-policy

Policy-based-route

Show Answer Comment (0)

Question 522

What are the functions of an IGMPv2 Query message? (Choose three.)

A router sends IGMPv2 Query messages to collect group memberships of receiver hosts.

A router sends IGMPv2 Query messages to elect a querier.

If a router can periodically send IGMPv2 Query messages, it indicates that the router runs properly.

Based on IGMPv2 Query messages, receiver hosts can obtain the address of a querier and unicast Report messages to the querier.

Show Answer Comment (0)

Question 523

What are the differences between the IGMP versions? (Choose two.)

IGMPv1/v2 cannot elect queriers but IGMPv3 can.

In IGMPv2/v3, members can actively leave groups, whereas in IGMPv1 members cannot actively leave groups.

IGMPv1/v2 do not support the SSM model but IGMPv3 supports.

IGMPv1/v2 do not support group-specific Query messages but IGMPv3 supports.

Show Answer Comment (0)

Question 524

What is the maximum number of bits that can be used for subnetting, when the network address is a Class C address?

Show Answer Comment (0)

Question 525

The most remarkable characteristic of OSPF is that it can support the link-state algorithm.

TRUE

FALSE

Show Answer Comment (0)

Question 526

Which of the following statements about multicast MAC addresses are true? (Choose three.)

The high-order 24 bits of a multicast MAC address are 0x01005e and the low-order 23 bits of a multicast MAC address are the same as the low-order 23 bits of a multicast IP address.

One multicast MAC address maps 32 IP multicast addresses.

Multicast MAC addresses are used at the link layer to identify receivers that are in the same multicast group.

One multicast MAC address maps only one IP multicast address.

Show Answer Comment (0)

Question 527

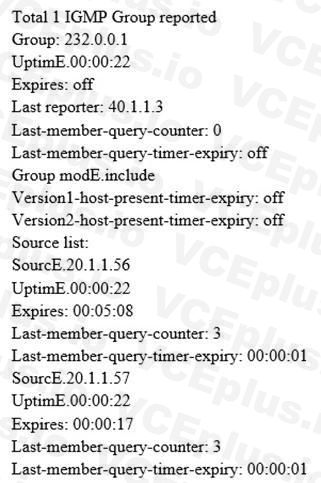

IGMP interface group report information Ethernet6/1/1(40.1.1.1):

The preceding information shows the entry status of an IGMP interface on Ethernet 6/1/1 on a router.

Assume IGMP sends the group-and-source-specific Query message. Which of the following statements is true?

IGMP respectively sends two messages: The source carried in one of the messages is 20.1.1.56 with the S flag bit not set; the source carried in the other message is 20.1.1.57, with the S flag bit set to 1.

IGMP respectively sends two messages: The source carried in one of the messages is 20.1.1.56 with the S flag bit set to 1; the source carried in the other message is 20.1.1.57, with the S flag bit not set.

IGMP sends one message carrying two sources 20.1.1.56 and 20.1.1.57, with the S flag bit set to 1.

IGMP sends one message carrying two sources 20.1.1.56 and 20.1.1.57, with the S flag bit not set.

Show Answer Comment (0)

Question 528

Which of the following route selection tools can be used in "multiple" routing protocols, be configured with matching conditions, and be composed of if-match and apply clauses?

AS-path-filter

IP-prefix

Route-policy

Community-filter

Show Answer Comment (0)
