HP HPE6-A68 Practice Test - Questions Answers, Page 4

Question list

List of questions

Question 31

(0)

Refer to the exhibit. A user who is tagged with the ClearPass roles of Role_Engineer and developer, but not testqa, connects to the network with a corporate Windows laptop. Which Enforcement Pro

Question 32

(0)

An SNMP probe is sent from ClearPass to a network access device, but ClearPass is unable to obtain profiling information. What are likely causes? (Select three.)

Question 33

(0)

Which database in the Policy Manager contains the device attributes derived by profiling?

Question 34

(0)

When a third party Mobile Device Management server is integrated with ClearPass, where is the endpoint information from the MDM server stored in ClearPass?

Question 35

(0)

Refer to the exhibit. Based on the network topology diagram shown, how many clusters are needed for this deployment?

Question 36

(0)

Refer to the exhibit. Which statements accurately describe the cp82 ClearPass node? (Select two.)

Question 37

(0)

Refer to the exhibit. A customer wants to enable Publisher redundancy. Based on the network topology diagram shown, which node should the network administrator configure as the standby Publisher

Question 38

(0)

A customer wants to implement Virtual IP redundancy, such that in case of a ClearPass server outage, 802.1x authentications will not be interrupted. The administrator has enabled a single Virtual IP

Question 39

(0)

ClearPass and a wired switch are configured for 802.1x authentication with RADIUS CoA (RFC 3576) on UDP port 3799. This port has been blocked by a firewall between the wired switch and ClearPass. W

Question 40

(0)

Which statement accurately describes configuration of Data and Management ports on the ClearPass appliance? (Select two.)

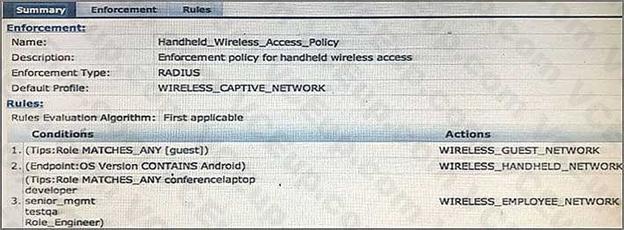

Question 31

Refer to the exhibit.

A user who is tagged with the ClearPass roles of Role_Engineer and developer, but not testqa, connects to the network with a corporate Windows laptop.

Which Enforcement Profile is applied?

WIRELESS_GUEST_NETWORK

WIRELESS_CAPTIVE_NETWORK

WIRELESS_HANDHELD_NETWORK

Deny Access

WIRELESS_EMPLOYEE_NETWORK

Show Answer Comment (0)

Question 32

An SNMP probe is sent from ClearPass to a network access device, but ClearPass is unable to obtain profiling information.

What are likely causes? (Select three.)

Only SNMP read has been configured but SNMP write is needed for profiling information.

An external firewall is blocking SNMP traffic.

SNMP is not enabled on the NAD.

SNMP community string in the ClearPass and NAD configuration is mismatched.

SNMP probing is not supported between ClearPass and NADs.

Show Answer Comment (0)

Question 33

Which database in the Policy Manager contains the device attributes derived by profiling?

Endpoints Repository

Client Repository

Local Users Repository

Onboard Devices Repository

Guest User Repository

Show Answer Comment (0)

Question 34

When a third party Mobile Device Management server is integrated with ClearPass, where is the endpoint information from the MDM server stored in ClearPass?

Endpoints repository

Onboard Device repository

MDM repository

Guest User repository

Local User repository

Show Answer Comment (0)

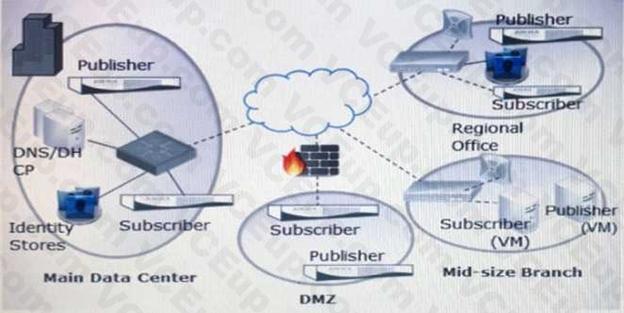

Question 35

Refer to the exhibit.

Based on the network topology diagram shown, how many clusters are needed for this deployment?

Show Answer Comment (0)

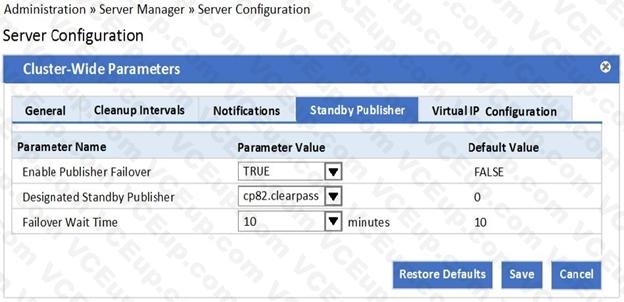

Question 36

Refer to the exhibit.

Which statements accurately describe the cp82 ClearPass node? (Select two.)

It becomes the Publisher when the primary Publisher fails.

It operates as a Publisher in the same cluster as the primary Publisher when the primary is active.

It operates as a Publisher in a separate cluster when the Publisher is active.

It operates as a Subscriber when the Publisher is active.

It stays as a Subscriber when the Publisher fails.

Show Answer Comment (0)

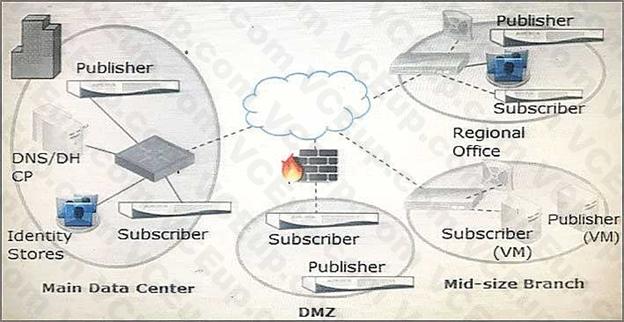

Question 37

Refer to the exhibit.

A customer wants to enable Publisher redundancy.

Based on the network topology diagram shown, which node should the network administrator configure as the standby Publisher for the Publisher in the main data center?

Subscriber in the main data center

Publisher in the regional office

Any of the other three Publishers

Publisher in the mid-size branch

Publisher in the DMZ

Show Answer Comment (0)

A customer wants to implement Virtual IP redundancy, such that in case of a ClearPass server outage, 802.1x authentications will not be interrupted. The administrator has enabled a single Virtual IP address on two ClearPass servers.

Which statements accurately describe next steps? (Select two.)

The NAD should be configured with the primary node IP address for RADIUS authentication on the 802.1x network.

A new Virtual IP address should be created for each NAD.

Both the primary and secondary nodes will respond to authentication requests sent to the Virtual IP address when the primary node is active.

The primary node will respond to authentication requests sent to the Virtual IP address when the primary node is active.

The NAD should be configured with the Virtual IP address for RADIUS authentications on the 802.1x network.

Show Answer Comment (0)

Question 39

ClearPass and a wired switch are configured for 802.1x authentication with RADIUS CoA (RFC 3576) on UDP port 3799. This port has been blocked by a firewall between the wired switch and ClearPass.

What will be the outcome of this state?

RADIUS Authentications will fail because the wired switch will not be able to reach the ClearPass server.

During RADIUS Authentication, certificate exchange between the wired switch and ClearPass will fail.

RADIUS Authentications will timeout because the wired switch will not be able to reach the ClearPass server.

RADIUS Authentication will succeed, but Post-Authentication Disconnect-Requests from ClearPass to the wired switch will not be delivered.

RADIUS Authentication will succeed, but RADIUS Access-Accept messages from ClearPass to the wired switch for Change of Role will not be delivered.

Show Answer Comment (0)
