Referring to the exhibit, the image shows a simplified diagram of an IP fabric network connecting two servers, labeled as Server A and Server B. The IP fabric is a network architecture that uses a Clos topology to provide high bandwidth, low latency, and scalability for data center networks.The IP fabric consists of spine and leaf devices that use BGP as the routing protocol and VXLAN as the overlay technology1.

A broadcast domain is a logical portion of a network where any device can directly transmit broadcast frames to other devices at the data link layer (OSI Layer 2). A broadcast frame is a frame that has a destination MAC address of all ones (FF:FF:FF:FF:FF:FF), which means that it is intended for all devices in the same broadcast domain.A broadcast domain is usually bounded by a router, which does not forward broadcast frames to other networks2.

In the exhibit, there are two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The first broadcast domain is the one that contains Server A and the leaf device that it is connected to. The second broadcast domain is the one that contains Server B and the leaf device that it is connected to. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network. Therefore, the statement C is correct in this scenario.

The following three statements are incorrect in this scenario:

A) 1. This is not true, because there are not one, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

B) 4. This is not true, because there are not four, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The spine devices and the leaf devices that are not connected to the servers are not part of the broadcast domains, because they use IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

D) 3. This is not true, because there are not three, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

IP Fabric Overview

Broadcast Domain - NetworkLessons.com

The deploy phase is the final step in the Juniper Apstra data center fabric design and deployment process. In this phase, you apply the Apstra-rendered configuration to the devices and verify the intent of the blueprint.Based on the web search results, we can infer the following actions are required during the deploy phase12:

Assign device profiles to the blueprint.This action associates a specific vendor model to each logical device in the blueprint. Device profiles contain extensive hardware model details, such as form factor, ASIC, CPU, RAM, ECMP limit, and supported features. Device profiles also define how configuration is generated, how telemetry commands are rendered, and how configuration is deployed on a device.Device profiles enable the Apstra system to render and deploy the configuration according to the Apstra Reference Design34.

Assign resources to the blueprint.This action allocates the physical devices, IP addresses, VLANs, and ASNs to the logical devices, networks, and routing zones in the blueprint. Resources can be assigned manually or automatically by the Apstra system.Assigning resources ensures that the blueprint has all the necessary elements to generate the configuration and deploy the fabric5.

Assign user roles to the blueprint.This action is not required during the deploy phase. User roles are defined at the system level, not at the blueprint level. User roles determine the permissions and access levels of different users in the Apstra system. User roles can be system-defined or custom-defined .

Assign interface maps to the blueprint.This action is not required during the deploy phase. Interface maps are defined at the design phase, not at the deploy phase. Interface maps are objects that map the logical interfaces of a logical device to the physical interfaces of a device profile. Interface maps enable the Apstra system to generate the correct interface configuration for each device in the fabric .Reference:

Deploy

Deploy Device

Device Profiles

Juniper Device Profiles

Resources

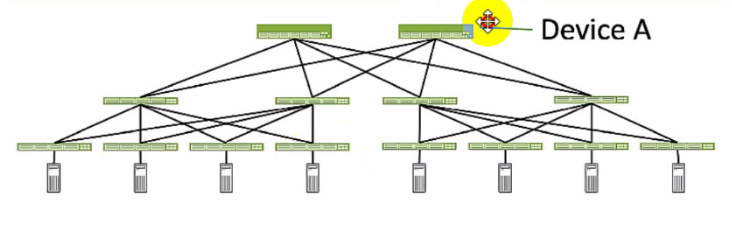

Device A serves as a spine in an IP fabric. An IP fabric is a network architecture that uses a spine-leaf topology to provide high performance, scalability, and reliability for data center networks. A spine-leaf topology consists of two layers of devices: spine devices and leaf devices. Spine devices are the core devices that interconnect all the leaf devices using equal-cost multipath (ECMP) routing. Leaf devices are the edge devices that connect to the servers, storage, or other network devices. In the exhibit, Device A is connected to four leaf devices using multiple links, which indicates that it is a spine device. The other options are incorrect because:

A) leaf is wrong because a leaf device is an edge device that connects to the servers, storage, or other network devices. In the exhibit, Device A is not connected to any servers, storage, or other network devices, but only to four leaf devices, which indicates that it is not a leaf device.

C) super spine is wrong because a super spine device is a higher-level device that interconnects multiple spine devices in a large-scale IP fabric. A super spine device is typically used when the number of leaf devices exceeds the port density of a single spine device. In the exhibit, Device A is not connected to any other spine devices, but only to four leaf devices, which indicates that it is not a super spine device.

D) server is wrong because a server device is a compute or storage device that connects to a leaf device in an IP fabric. A server device is typically the end host that provides or consumes data in the network. In the exhibit, Device A is not connected to any leaf devices, but only to four leaf devices, which indicates that it is not a server device.Reference:

IP Fabric Underlay Network Design and Implementation

IP Fabric Overview

IP Fabric Architecture

According to the Juniper documentation1, an interface map is a configuration template that maps interfaces between logical devices and physical hardware devices (represented with device profiles) while adhering to vendor specifications. An interface map can be either predefined or custom. A predefined interface map is one that ships with Apstra software and supports most qualified Juniper devices. A custom interface map is one that is created by the user to meet specific requirements. An interface map can be stored in either the global catalog or the blueprint catalog. The global catalog contains all the interface maps that are available for use in any blueprint. The blueprint catalog contains the interface maps that are imported from the global catalog and used in a specific blueprint.

When a member of your organization makes changes to a predefined interface map, the following statements are correct:

Changes to interface maps in the global catalog do not affect interface maps that have already been imported into blueprint catalogs. This means that the existing blueprints that use the original version of the interface map will not be impacted by the changes. However, if you want to use the updated version of the interface map in a new or existing blueprint, you need to import it again from the global catalog.

Any changes made to predefined interface maps are discarded when Apstra is upgraded. This means that the changes will not be preserved across different versions of Apstra software. If you want to retain a customized interface map through Apstra upgrades, you need to clone the predefined interface map, give it a unique name, and customize it instead of changing the predefined one directly.

Therefore, the correct answer is A and B. Changes to interface maps in the global catalog do not affect interface maps that have already been imported into blueprint catalogs and any changes made to predefined interface maps are discarded when Apstra is upgraded.Reference:Edit Interface Map | Apstra 4.2 | Juniper Networks

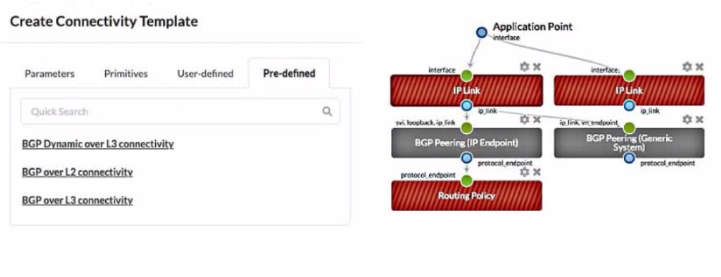

A connectivity template is a set of configuration parameters that can be applied to a device or a group of devices in a blueprint. A blueprint is a logical representation of the network design and intent. A primitive is a basic unit of configuration that can be added to a connectivity template. A primitive can be a link, a peering, a policy, or a service. In the exhibit, the red-striped primitives indicate that further configuration is required for them to be compatible with the connectivity template design. The red stripes mean that the primitive is incomplete or invalid, and it needs to be edited or deleted. For example, the IP Link primitive needs to have the interface name and IP address specified for each end of the link. The other options are incorrect because:

A) The gray-solid primitives indicate further configuration is required is wrong because the gray-solid primitives indicate that they are compatible with the connectivity template design. The gray color means that the primitive is valid and complete, and it does not need any further configuration.

B) The gray-solid primitives indicate that they are incompatible with the connectivity template design is wrong because the gray-solid primitives indicate that they are compatible with the connectivity template design, as explained above.

C) The red-striped primitives indicate that they are incompatible with the connectivity template design is wrong because the red-striped primitives indicate that further configuration is required, not that they are incompatible. The red stripes mean that the primitive is incomplete or invalid, but it can be fixed by editing or deleting it.Reference:

Connectivity Templates

Data Center Automation Using Juniper Apstra

Config Rendering in Juniper Apstra

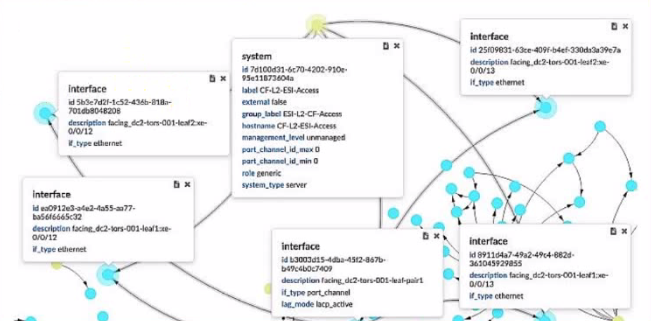

According to the Juniper documentation1, a generic system is a device that is not managed by Juniper Apstra and does not have a specific role or type assigned to it. A generic system can be used to represent a server, a firewall, a load balancer, or any other device that is not part of the fabric. In the exhibit, the device shown is a generic system, as indicated by its role, system type, and management level. Therefore, the correct answer is B. The device shown is a generic system.

According to the Juniper documentation2, a LAG is a link aggregation group that bundles multiple physical interfaces into a single logical interface. A LAG can provide increased bandwidth, redundancy, and load balancing for the network traffic. In the exhibit, the device shown has four physical interfaces that are part of a LAG, as indicated by their description and li_type. The LAG is facing the leaf pair, which are the two switches that connect to the device. Therefore, the correct answer is C. Four physical interfaces exist in a LAG facing the leaf pair.Reference:Generic Systems (Datacenter Design),Form LAG | Apstra 4.1 | Juniper Networks

In Juniper Apstra, a blueprint is a logical representation of the network design and configuration. When you create a new blueprint, you need to commit the changes to apply them to the network devices. However, committing the changes does not mean that the network is immediately updated and operational. It may take some time for the network to converge and reflect the new state of the blueprint. During this time, you may see some anomalies related to BGP in the main dashboard, which indicate that the BGP sessions are not established or stable between the devices. These anomalies are usually temporary and will disappear once the network converges and the BGP sessions are up and running. Therefore, the statement B is the most likely cause of these anomalies in this scenario.

The following three statements are less likely causes of these anomalies in this scenario:

You have misconfigured ASNs. This is possible, but not very likely, because Juniper Apstra provides ASN pools that can be automatically assigned to the devices based on their roles. You can also manually specify the ASNs for the devices, but you need to ensure that they are unique and consistent with the network design. If you have misconfigured ASNs, you may see some anomalies related to BGP, but they will not disappear after the network converges. You will need to fix the ASNs and commit the changes again to resolve the anomalies.

Spine-leaf links are incorrectly set. This is possible, but not very likely, because Juniper Apstra provides connectivity templates that can be used to define the spine-leaf links based on the interface maps. You can also manually specify the spine-leaf links, but you need to ensure that they are correct and match the physical cabling. If you have incorrectly set the spine-leaf links, you may see some anomalies related to BGP, but they will not disappear after the network converges. You will need to fix the spine-leaf links and commit the changes again to resolve the anomalies.

A generic system has not been configured. This is not relevant, because a generic system is a device that is not managed by Juniper Apstra, but is connected to the network. A generic system does not affect the BGP sessions between the devices that are managed by Juniper Apstra. If you have a generic system in your network, you need to configure it manually and ensure that it is compatible with the network design. A generic system does not cause any anomalies related to BGP in the main dashboard.

Blueprint Summaries and Dashboard

BGP Session Flapping Probe

Probe: BGP Session Monitoring

According to the Juniper documentation1, a template is a configuration template that defines a network's policy intent and structure. A template can be either rack-based or pod-based, depending on the type and number of racks and pods in the network design. A template includes the following details:

Policies: These are the parameters that apply to the entire network, such as the overlay control protocol, the ASN allocation scheme, and the underlay type.

Structure: This is the physical layout of the network, such as the type and number of racks, pods, spines, and leaves. The structure also defines the leaf-to-spine interconnection, which is the number and type of links between the leaf and spine devices. The leaf-to-spine interconnection can be either single or dual, depending on the redundancy and bandwidth requirements.

Therefore, the correct answer is A. the leaf-to-spine interconnection. This is a component that is defined in a template, as it determines the physical connectivity of the network. The speed of the links, the number of spine devices, and the definition of IP pools are not components that are defined in a template, as they are either derived from the device profiles, the resource pools, or the blueprint settings.Reference:Templates Introduction | Apstra 4.2 | Juniper Networks

In Juniper Apstra, a widget is a graphical element that displays data from an intent-based analytics (IBA) probe. A widget can be used to monitor different aspects of the network and raise alerts to any anomalies. A widget can be viewed by itself or added to an analytics dashboard.A dashboard is a collection of widgets that can be customized and organized according to the user's preference1.

The main dashboard in Juniper Apstra is the blueprint dashboard, which is the default view that shows the network information and configuration for the active blueprint. A blueprint is a logical representation of the network design and intent.The blueprint dashboard can display the system-generated dashboards, the user-generated dashboards, and the individual widgets that are relevant to the network2.

To make a widget appear on the main dashboard in Juniper Apstra, the user needs to set the Default toggle switch to On for the desired widget. This will add the widget to the blueprint dashboard, where it can be viewed along with other network information.The user can also remove the widget from the blueprint dashboard by setting the Default toggle switch to Off for the widget3. Therefore, the statement D is correct in this scenario.

The following three statements are incorrect in this scenario:

When creating the widget, select the Add to Blueprint Dashboard option. This is not true, because there is no such option when creating a widget in Juniper Apstra.The user can only select the widget type, the probe, and the display mode when creating a widget4.To add the widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget after creating it3.

On the blueprint dashboard, click on the Add Widget option. This is not true, because there is no such option on the blueprint dashboard in Juniper Apstra.The user can only view, edit, or delete the existing widgets and dashboards on the blueprint dashboard2.To add a widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget from the widgets table view3.

Widgets automatically appear on the blueprint dashboard. This is not true, because widgets do not automatically appear on the blueprint dashboard in Juniper Apstra.The user needs to manually add the widgets to the blueprint dashboard by setting the Default toggle switch to On for the widgets that they want to see on the blueprint dashboard3.The only exception is the widgets that are part of the system-generated dashboards, which are automatically created and added to the blueprint dashboard based on the state of the active blueprint2.
