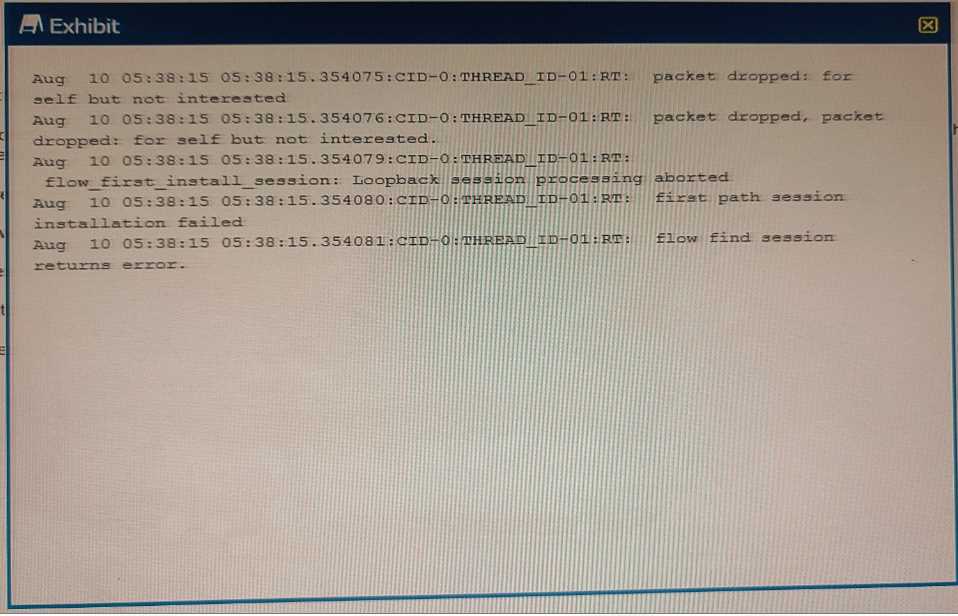

According to the security flow trace in the exhibit, the packets are dropped for self but not interested. This means that the SRX device is receiving packets destined to itself, but it does not have the corresponding service configured in the host-inbound-traffic stanza for the interface1. In this case, the service is BGP, which uses TCP port 179. Therefore, the correct action to solve the problem on the SRX device is to add BGP to the allowed host-inbound-traffic for the interface. This can be done by using the following command:

set security zones security-zone <zone-name> interfaces <interface-name> host-inbound-traffic system-services bgp

This command will allow the SRX device to accept BGP packets on the specified interface and zone. Alternatively, the command can be applied to all interfaces in a zone by using the allinterfaces option2.

Reference: 1: SRX Getting Started - Troubleshoot Security Policy 2: Configuring System Services Allowed for Host Inbound Traffic

According to the output of the command show configuration services security-intelligence url, the SRX Series device is directly enrolled with Juniper ATP Cloud. This is indicated by the URL https://cloudfeeds.argon.junipersecurity.net/api/manifest.xml, which is the default URL for Juniper ATP Cloud1. This means that the device is not enrolled with Policy Enforcer, which would use a different URL that includes the IP address of the Policy Enforcer server2. Therefore, the problem in this scenario is that the device is directly enrolled with Juniper ATP Cloud, which prevents it from being enrolled with Policy Enforcer.

To enroll the device with Policy Enforcer, the user needs to disenroll the device from Juniper ATP Cloud first. This can be done by using the following command:

delete services security-intelligence url

This command will remove the Juniper ATP Cloud URL from the device configuration and stop the device from receiving threat feeds from Juniper ATP Cloud1. After that, the user can enroll the device with Policy Enforcer by using the Security Director GUI or the SLAX script2.

Reference: 1: Configuring Juniper ATP Cloud on SRX Series Devices 2: Enrolling SRX Series Devices with Policy Enforcer

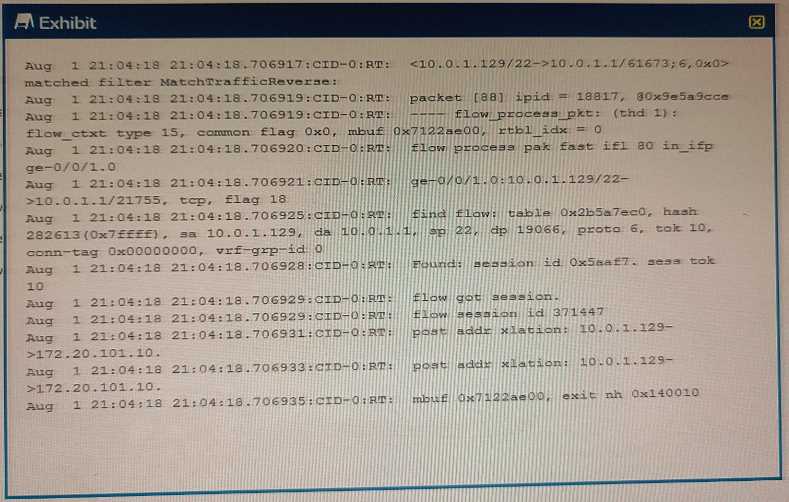

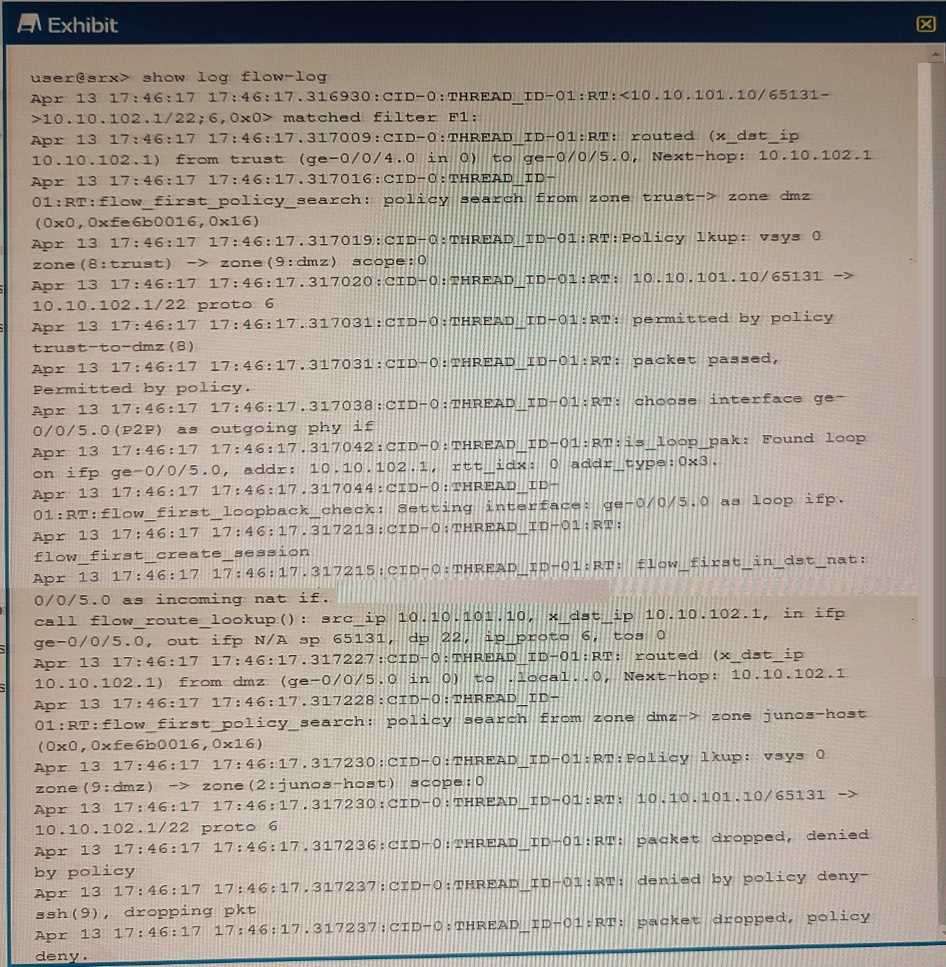

According to the exhibit, which is a security flow trace on an SRX Series device, the following statements are true:

The packet's destination is to an interface on the SRX Series device. This is indicated by the line packet dropped for self but not interested, which means that the packet is destined to the SRX device itself, but the device does not have the corresponding service configured in the host-inboundtraffic stanza for the interface1.

The packet originated within the Trust zone. This is indicated by the line zone name: Trust, which shows that the packet belongs to the Trust zone. The Trust zone is typically the zone where the internal network is connected to the SRX device2.

The packet is dropped before making an SSH connection. This is indicated by the line flow_first_inline_processing: pak(0x4a9c0d0), which shows that the packet is the first packet in the session and is processed by the firewall. The packet is dropped because it does not match any security policy or host-inbound-traffic rule1. The packet is trying to make an SSH connection, which uses TCP port 22, as shown by the line source port: 22.

The following statements are false:

The packet's destination is to a server in the DMZ zone. There is no indication of the DMZ zone in the trace output. The DMZ zone is typically the zone where the external servers are connected to the SRX device2.

The packet is allowed to make an SSH connection. The packet is not allowed to make an SSH connection, as explained above.

Reference: 1: SRX Getting Started - Troubleshoot Security Policy 2: SRX Getting Started - Configure Security Zones

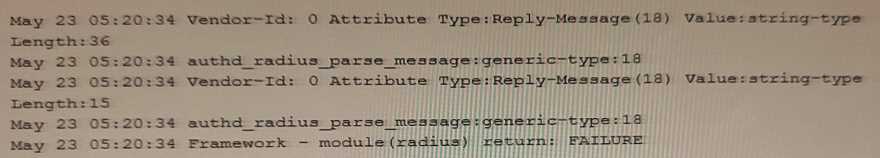

According to the output of the traceoptions file called radius, the source of the problem is that the RADIUS server IP address is unreachable. This is indicated by the line FAILURE: sendto: No route to host, which shows that the SRX device cannot send the authentication request to the RADIUS server.

This could be due to a network issue, such as a misconfigured route, a firewall blocking the traffic, or a physical link failure.

To troubleshoot this issue, the user should check the following:

The RADIUS server IP address and port are correctly configured on the SRX device. The user can verify this by using the command show configuration access radius-server1.

The SRX device can ping the RADIUS server IP address. The user can use the command ping <RADIUSserver-IP> to test the connectivity2.

The SRX device has a valid route to the RADIUS server IP address. The user can use the command show route <RADIUS-server-IP> to check the routing table3.

The SRX device and the RADIUS server are using the same shared secret key. The user can verify this by using the command show configuration access radius-server secret1.

The SRX device and the RADIUS server are using the same authentication protocol. The user can verify this by using the command show configuration access profile <profile-name>4.

The firewall policies on the SRX device and any intermediate devices are allowing the RADIUS traffic. The user can use the command show security policies from-zone <source-zone> to-zone <destination-zone> to check the firewall policies5.

Reference: 1: Configuring RADIUS Server Parameters 2: ping - Technical Documentation - Support -Juniper Networks 3: show route - Technical Documentation - Support - Juniper

Networks 4: Configuring Authentication Profiles 5: show security policies - Technical Documentation -Support - Juniper Networks

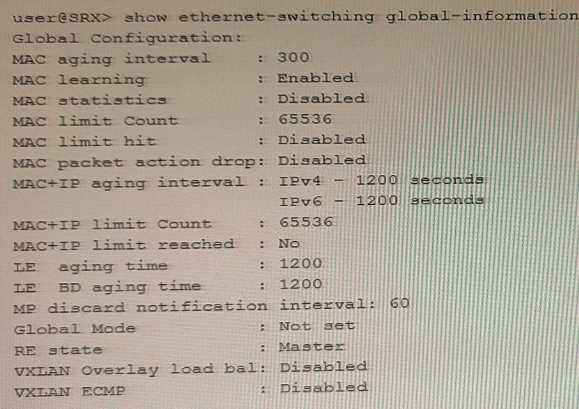

According to the exhibit, which is a configuration snippet of the SRX Series device, the global mode for the device is set to switching mode. This means that the device is operating as a Layer 2 switch and does not apply any security policies to the traffic between hosts in the same broadcast domain1.

Therefore, the traffic between two hosts in the same broadcast domain are not matching any security policies.

To solve this problem, the user should change the global mode to transparent bridge mode. This means that the device will operate as a Layer 2 transparent bridge and apply security policies to the traffic between hosts in the same broadcast domain2. This will allow the user to enforce security policies based on the source and destination IP addresses, ports, and protocols of the traffic.

To change the global mode to transparent bridge mode, the user should use the following command:

set protocols l2-learning global-mode transparent-bridge

This command will set the global mode for the SRX Series device as Layer 2 transparent bridge mode. After changing the mode, the user must reboot the device for the configuration to take effect2.

Reference: 1: global-mode (Protocols) 2: Configuring Layer 2 Transparent Mode

According to the Juniper documentation, filter-based forwarding (FBF) is a technique that allows the

SRX Series device to forward packets based on firewall filter rules, rather than the default routing table1. FBF can be used to implement policy-based routing, load balancing, or traffic engineering2.

To deploy FBF on the SRX Series device for incoming traffic sourced from the 10.10.100.0/24 network, the following steps are required:

You must create a forwarding-type routing instance. A forwarding-type routing instance is a special type of routing instance that is used for FBF. It does not have any interfaces or routing protocols associated with it, but it has its own routing table that can be populated by static routes, RIB groups, or routing policies3. You can create a forwarding-type routing instance by using the following command:

set routing-instances <instance-name> instance-type forwarding You must create and apply a firewall filter that matches on the source address 10.10.100.0/24 and then sends this traffic to your routing instance. A firewall filter is a set of rules that can match on various packet attributes, such as source and destination addresses, ports, protocols, and so on. You can use the then routing-instance action to specify the routing instance that the packet should be forwarded to4. You can create and apply a firewall filter by using the following commands:

set firewall family inet filter <filter-name> term <term-name> from source-address 10.10.100.0/24 set firewall family inet filter <filter-name> term <term-name> then routing-instance <instance-name> set interfaces <interface-name> unit <unit-number> family inet filter input <filtername> You must create a RIB group that adds interface routes to your routing instance. A RIB group is a mechanism that allows you to import routes from one routing table to another. You can use a RIB group to add the interface routes of the ingress interface to the routing table of the forwarding-type routing instance. This will ensure that the SRX device can forward the packets to the correct next hop based on the destination address5. You can create a RIB group by using the following commands:

set routing-options rib-groups <rib-group-name> import-rib inet.0 set routing-options rib-groups <rib-group-name> import-rib <instance-name>.inet.0 set routing-instances <instance-name> routingoptions instance-import <rib-group-name>

The following steps are not required or incorrect:

You do not need to create a VRF-type routing instance. A VRF-type routing instance is a type of routing instance that is used for virtual routing and forwarding. It allows you to create multiple logical routers on the same physical device, each with its own interfaces, routing protocols, and routing tables. VRF-type routing instances are typically used for VPNs, MPLS, or network segmentation. However, they are not necessary for FBF, which can be achieved with a forwardingtype routing instance.

You do not need to create and apply a firewall filter that matches on the destination address 10.10.100.0/24 and then sends this traffic to your routing instance. This would be redundant and unnecessary, as the destination address of the incoming traffic is already determined by the routing table of the forwarding-type routing instance. Moreover, this would create a loop, as the traffic would be sent back to the same routing instance that it came from.

Reference: 1: Filter-Based Forwarding Overview 2: Configuring Filter-Based Forwarding 3: forwarding (Routing Instances) 4: routing-instance (Firewall Filter Action) 5: Configuring RIB Groups : [vrf (Routing Instances)]

According to the Juniper documentation, the best VPN type for connecting two remote sites to the corporate headquarters site while ensuring that all traffic is secured and sent directly between sites is IPsec ADVPN. ADVPN stands for Auto Discovery VPN, which is a feature that allows the SRX Series devices to dynamically establish IPsec tunnels between remote sites without requiring a full mesh configuration1. IPsec ADVPN uses NHRP (Next Hop Resolution Protocol) to discover the optimal path between two remote sites and create a shortcut tunnel that bypasses the hub device2. This reduces the latency and bandwidth consumption of the traffic and improves the performance and scalability of the VPN.

To configure IPsec ADVPN on the SRX Series devices, the following steps are required:

Configure the hub device as an NHRP server and assign it a unique NHRP network ID and a public IP address3.

Configure the spoke devices as NHRP clients and register them with the hub device using the same NHRP network ID and the hub's public IP address3.

Configure the IPsec VPN parameters on the hub and spoke devices, such as the IKE and IPsec proposals, policies, and gateways4.

Configure the routing protocols on the hub and spoke devices, such as OSPF or BGP, to advertise the routes between the sites.

Once the IPsec ADVPN is configured, the hub and spoke devices will establish IPsec tunnels with each other and exchange NHRP information. When a spoke device needs to send traffic to another spoke device, it will send an NHRP resolution request to the hub device, which will reply with the public IP address of the destination spoke device. The source spoke device will then initiate a shortcut IPsec tunnel with the destination spoke device and send the traffic directly to it2.

The following VPN types are not suitable for this scenario:

Hub-and-spoke IPsec VPN: This type of VPN requires that all traffic between the remote sites go through the hub device, which adds latency and consumes bandwidth. It also does not scale well as the number of remote sites increases.

Layer 2 VPN: This type of VPN allows the remote sites to extend their Layer 2 networks over a Layer 3 network, such as the internet. It is typically used for data center interconnection or service provider networks. However, it does not provide any security or encryption for the traffic, and it may not be compatible with the existing network infrastructure.

Full mesh Layer 3 VPN with EBGP: This type of VPN allows the remote sites to exchange Layer 3 routing information over a Layer 3 network, such as the internet, using EBGP (External Border Gateway Protocol). It is typically used for enterprise networks or service provider networks.

However, it requires that each remote site has a unique AS (Autonomous System) number and a public IP address, and that each remote site establishes a BGP session with every other remote site.

This can be complex and cumbersome to configure and maintain, and it may not provide any security or encryption for the traffic.

Reference: 1: Auto Discovery VPN Overview 2: Understanding Auto Discovery VPN 3: Configuring NHRP on the Hub and Spoke Devices 4: Configuring IPsec VPN on the Hub and Spoke Devices :

[Configuring Routing Protocols on the Hub and Spoke Devices] : [Hub-and-Spoke VPNs Overview] :

[Layer 2 VPNs Feature Guide for Security Devices] : [Layer 3 VPNs Feature Guide for Security Devices]

According to the Juniper documentation, the steps to detect domain generation algorithms (DGA) on an SRX Series firewall are as follows:

Define a security-metadata-streaming policy under [edit services]. A security-metadata-streaming policy is a configuration that enables the SRX Series firewall to collect and stream security metadata, such as DNS queries and responses, to Juniper ATP Cloud for analysis. Juniper ATP Cloud uses machine learning models and known pre-computed DGA domain names to provide domain verdicts, which helps in-line blocking and sinkholing of DNS queries on SRX Series firewalls1. You can define a security-metadata-streaming policy by using the following command:

set services security-metadata-streaming policy <policy-name>

Attach the security-metadata-streaming policy to a security zone. A security zone is a logical grouping of interfaces that have similar security requirements. You can attach the security-metadatastreaming policy to a security zone by using the following command:

set security zones security-zone <zone-name> services security-metadata-streaming policy <policyname>

The following steps are not required or incorrect:

Define an advanced-anti-malware policy under [edit services]. An advanced-anti-malware policy is a configuration that enables the SRX Series firewall to scan files for malware using Juniper ATP Cloud. It is not related to DGA detection2.

Attach the advanced-anti-malware policy to a security policy. A security policy is a configuration that defines the rules for permitting or denying traffic between security zones. It is not related to DGA detection3.

Reference: 1: Configuring Security Metadata Streaming 2: Configuring Advanced Anti-Malware Policies 3: Configuring Security Policies

In Juniper ATP Cloud, a threat prevention policy allows you to define how the system should handle an infected host. Two of the available actions are:

Close the connection: This action will close the connection between the infected host and the destination to which it is trying to connect. This will prevent the host from communicating with the destination and will stop any malicious activity.

Quarantine the host: This action will isolate the infected host from the network by placing it in a quarantine VLAN. This will prevent the host from communicating with other devices on the network, which will prevent it from spreading malware or exfiltrating data.

Sending a custom message is used to notify the user and administrator of the action taken. Drop the connection silently is not an action available in Juniper ATP Cloud.

According to the Juniper documentation, the threat prevention policy in Juniper ATP Cloud is a configuration that defines the actions and notifications for different threat levels of the traffic. The threat levels are based on the verdicts returned by Juniper ATP Cloud after analyzing the files, URLs, and domains. The threat levels range from 1 to 10, where 1 is the lowest and 10 is the highest1.

The threat prevention policy allows the user to specify different actions for different threat levels.

The actions can be applied to the traffic or to the infected host. The actions available for the traffic are:

Permit: Allows the traffic to pass through the SRX Series device without any interruption.

Block: Blocks the traffic and sends a reset packet to the client and the server.

Drop: Drops the traffic silently without sending any reset packet.

Redirect: Redirects the traffic to a specified URL, such as a warning page or a sinkhole server.

The actions available for the infected host are:

None: Does not take any action on the infected host.

Quarantine: Quarantines the infected host by applying a firewall filter that blocks all outbound traffic from the host, except for the traffic to Juniper ATP Cloud or the specified redirect URL.

Custom: Executes a custom script on the SRX Series device to perform a user-defined action on the infected host, such as sending an email notification or triggering an external system.

Therefore, the two different actions available in a threat prevention policy to deal with an infected host are:

Block: This action will block the traffic from or to the infected host and send a reset packet to the client and the server. This will prevent the infected host from communicating with the malicious server or spreading the malware to other hosts.

Quarantine: This action will quarantine the infected host by blocking all outbound traffic from the host, except for the traffic to Juniper ATP Cloud or the redirect URL. This will isolate the infected host from the network and allow the user to remediate the infection.

The following actions are not available or incorrect:

Send a custom message: This is not an action available in the threat prevention policy. However, the user can use the custom action to execute a script that can send a custom message to the infected host or the administrator.

Drop the connection silently: This is an action available for the traffic, not for the infected host. It will drop the traffic without sending any reset packet, which may not be effective in stopping the infection or notifying the user.

Reference: 1: Configuring Threat Prevention Policies
