MuleSoft MCD - Level 2 Practice Test - Questions Answers, Page 4

To get response data from the external API after it completes processing, the developer should expose an HTTP callback API in Mule and register it with the external system. This way, the external API can invoke the callback API with the response data when it is ready, instead of making the Mule application wait for a long time or poll for a response repeatedly.

Reference: https://docs.mulesoft.com/mule-runtime/4.3/http-listener-ref#callback

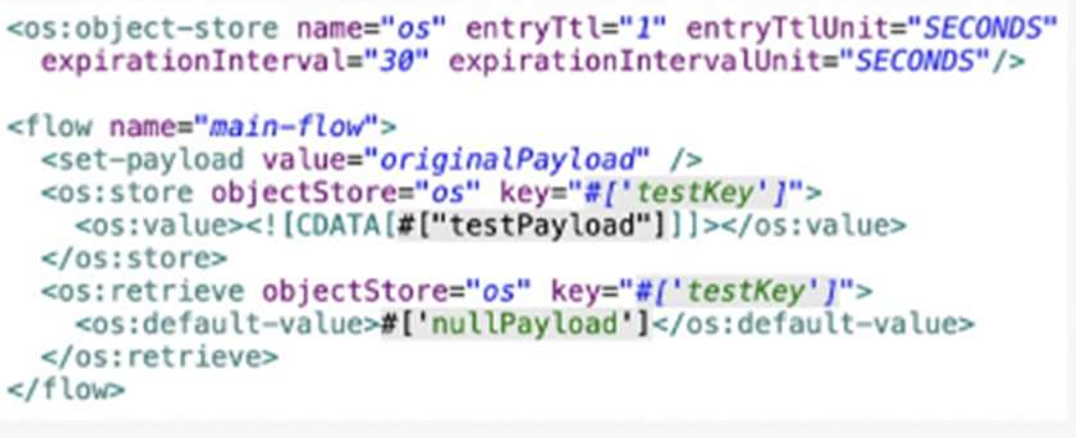

The result of the flow is nullPayload if processing between os:store and os:retrieve takes 10 seconds. This is because the entry TTL of the object store is one second, which means that any stored value expires after one second and is removed from the object store. The expiration interval of 30 seconds only determines how often the object store checks for expired values, but it does not affect the TTL. Therefore, when os:retrieve tries to get the value after 10 seconds, it returns nullPayload because the value has already expired and been removed.

Reference: https://docs.mulesoft.com/object-store/osv2-faq#how-does-the-time-to-live-work

To unit test modules created with XML SDK, the developer needs to use the MUnit Extensions Maven plugin. This plugin allows testing XML SDK modules using MUnit by adding a dependency to the module under test and using a custom processor tag to invoke it.

Reference: https://docs.mulesoft.com/mule-sdk/1.1/xml-sdk#testing

When working with correlation IDs, the HTTP Listener generates correlation IDs unless a correlation ID is received in the HTTP request. In that case, it propagates the received correlation ID throughout the flow execution. Correlation IDs are used to track events across different flows or applications.

Reference: https://docs.mulesoft.com/mule-runtime/4.3/about-mule-message#message-attributes

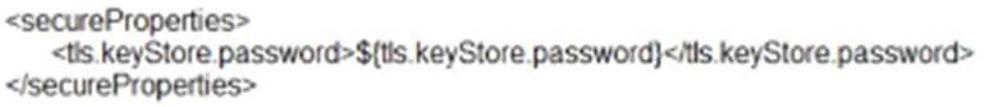

The result of the Mule Maven Plugin configuration of the value of property its,keystorePassword in CloudHub 2.0 is that Runtime Manager masks the value. This means that Runtime Manager hides or obscures the value from anyone who views it in Runtime Manager or Anypoint Platform.

Reference: https://docs.mulesoft.com/runtime-manager/runtime-manager-agent-for-mule4#properties-tab

To configure a common-global-handler flow that can be reused across all of the organization's deployed applications, the developer should create a Mule Plugin project, create a common-global-error-handler flow inside the plugin project, and use this plugin as a dependency in all Mule applications. This way, the developer can import the common-global-error-handler flow in any application that needs it and avoid duplicating the error handling logic.

Reference: https://docs.mulesoft.com/mule-runtime/4.3/error-handling#global-error-handler

To validate the data before posting to the target system, the developer should add the JSON module dependency and add the validate-schema operation in the flow, configured to reference the schema. The JSON module provides a validate-schema operation that validates a JSON payload against a JSON schema and throws an error if the payload is invalid.

Reference: https://docs.mulesoft.com/json-module/1.1/json-validate-schema

To invoke multiple HTTP APIs in parallel and roll back failed requests in sequence, the developer should use a Scatter-Gather router as a central Saga orchestrator for all API requests with compensating actions for failing routes. A Scatter-Gather router executes multiple routes concurrently and aggregates the results. A Saga orchestrator coordinates a series of actions across different services and handles failures by executing compensating actions. Therefore, using a Scatter-Gather router as a Saga orchestrator allows invoking multiple HTTP APIs in parallel and rolling back any failed requests in sequence.

Reference: https://docs.mulesoft.com/mule-runtime/4.3/scatter-gather-concept https://docs.mulesoft.com/mule-runtime/4.3/saga

To use the OAuth 2.0 Authorization Code grant type for authentication, the HTTP Connector configuration requires the following properties: token URL, authorization URL, client ID, client secret, and local callback URL. The token URL is the endpoint of the authorization server that provides access tokens. The authorization URL is the endpoint of the authorization server that initiates the user consent flow. The client ID and client secret are the credentials of the Mule application registered with the authorization server. The local callback URL is the endpoint of the Mule application that receives the authorization code from the authorization server.

Reference: https://docs.mulesoft.com/http-connector/1.6/http-authentication#oauth-2-0
