Fortinet NSE4_FGT-7.2 Practice Test - Questions Answers, Page 17

A ZTNA rule is a policy that enforces access control and applies security profiles to protect traffic between the client and the access proxy1. A ZTNA rule defines the following parameters1:

Incoming interface: The interface that receives the client request.

Source: The address and user group of the client.

ZTNA tag: The tag that identifies the domain that the client belongs to.

ZTNA server: The server that hosts the access proxy.

Destination: The address of the application that the client wants to access.

Action: The action to take for the traffic that matches the rule. It can be accept, deny, or redirect.

Security profiles: The security features to apply to the traffic, such as antivirus, web filter, application control, and so on.

A ZTNA rule does not redirect the client request to the access proxy. That is the function of a policy route that matches the ZTNA tag and sends the traffic to the ZTNA server2.

A ZTNA rule does not define the access proxy. That is done by creating a ZTNA server object that specifies the IP address, port, and certificate of the access proxy3.

FortiGate Infrastructure 7.2 Study Guide (p.177): 'A ZTNA rule is a proxy policy used to enforce access control. You can define ZTNA tags or tag groups to enforce zero-trust role-based access. To create a rule, type a rule name, and add IP addresses and ZTNA tags or tag groups that are allowed or blocked access. You also select the ZTNA server as the destination. You can also apply security profiles to protect this traffic.'

'If you use multiple source or destination interfaces, or the any interface in a firewall policy, you cannot separate policies into sections by interface pairs---some would be triplets or more. So instead, policies are then always displayed in a single list (By Sequence).'

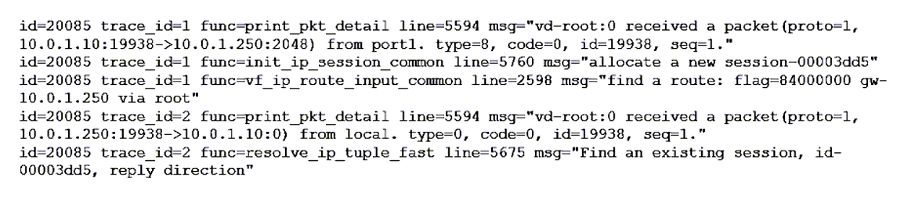

The debug flow output shows the result of a diagnose command that captures the traffic flow between the source and destination IP addresses1. The debug flow output reveals the following information about the traffic flow1:

The protocol is 1, which means that the traffic uses ICMP protocol2. ICMP is a protocol that is used to send error messages and test connectivity between devices2.

The session state is 0, which means that a new traffic session was created3. A session is a data structure that stores information about a connection between two devices3.

The policy ID is 1, which means that the traffic matched the firewall policy with ID 14. A firewall policy is a rule that defines how FortiGate processes traffic based on the source, destination, service, and action parameters4.

The action is 0, which means that the traffic was allowed by the firewall policy. An action is a parameter that specifies what FortiGate does with the traffic that matches a firewall policy.

Therefore, two conclusions that can be made from the debug flow output are:

The debug flow is for ICMP traffic.

A new traffic session was created.

FortiGate Infrastructure 7.2 Study Guide (p.127-128): 'As previously stated, collector agent-based polling mode has three methods (or options) for collecting login information. The order on the slide from left to right shows most recommend to least recommended: (WMI, WinSecLog, and NetAPI)'

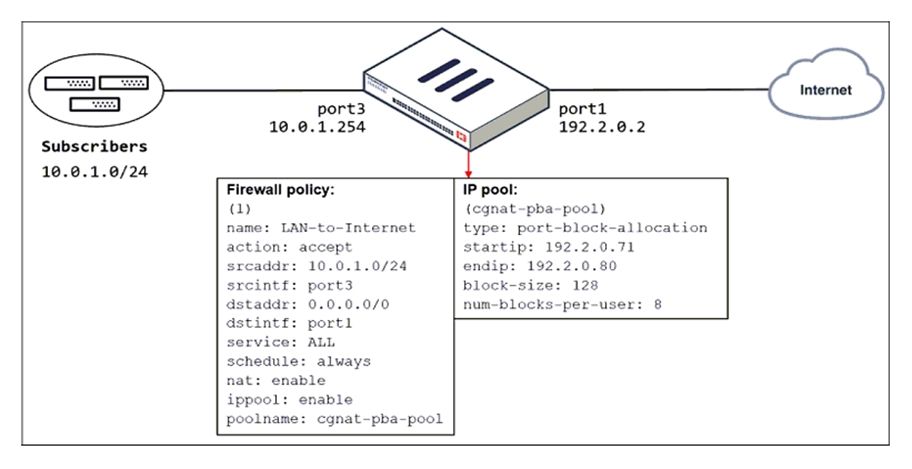

FortiGate Security 7.2 Study Guide (p.109): 'FortiGate allocates port blocks on a first-come, first-served basis.' 'For logging purposes, when FortiGate allocates a port block to a host, it generates a system event log to inform the administrator.'

FortiGate Security 7.2 Study Guide (p.279): 'To apply the video filter profile, proxy-based firewall polices currently allow you to enable the video filter profile. You must enable full SSL inspection on the firewall policy.'

https://docs.fortinet.com/document/fortigate/7.2.4/administration-guide/860867/filtering-based-on-fortiguard-categories

https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/351998/creating-automation-stitches

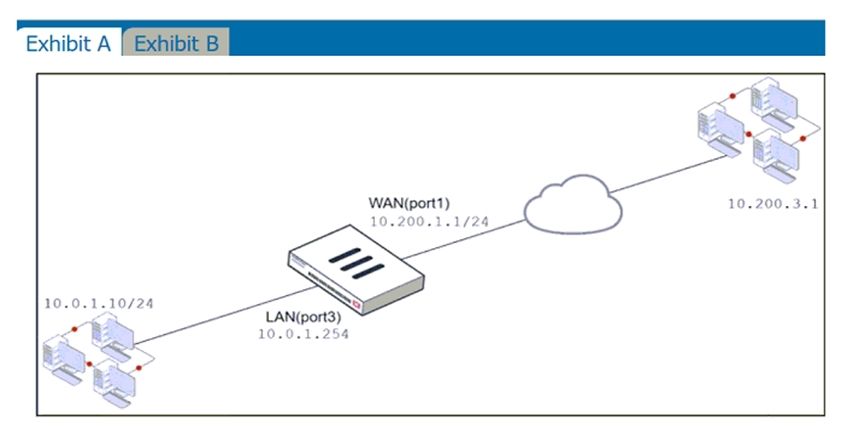

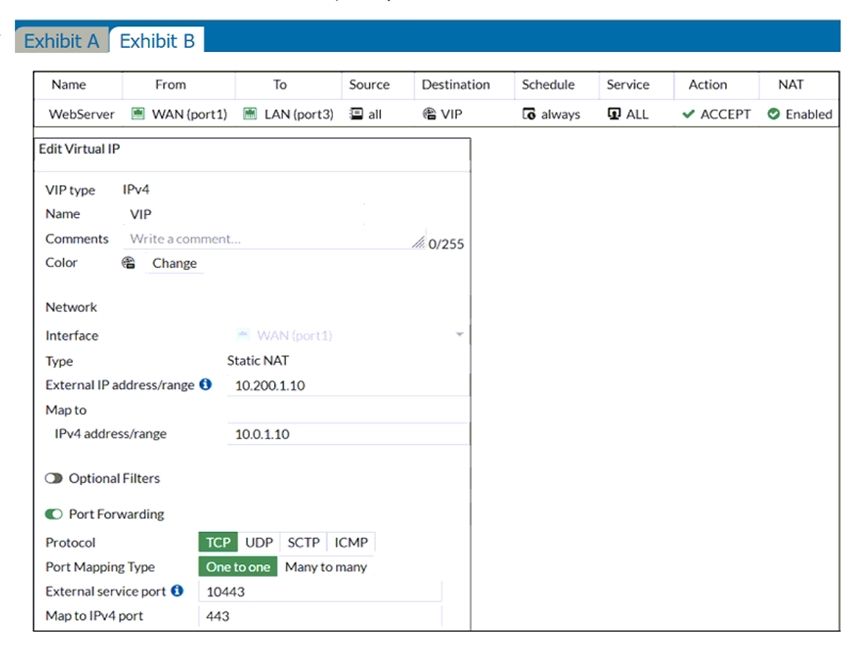

The host 10.200.3.1 sends a TCP SYN packet on port 10443 to 10.200.1.10, which is the external IP address of the VIP object named VIP in Exhibit B1. The VIP object maps the external IP address and port to the internal IP address and port of the server 10.0.1.10 and 443, respectively1. The VIP object also enables NAT, which means that the source address of the packet will be translated to the IP address of the outgoing interface2.

The firewall policy ID 1 in Exhibit B allows traffic from WAN (port1) to LAN (port3) with the destination address of VIP and the service of HTTPS1. The policy also enables NAT, which means that the source address of the packet will be translated to the IP address of the outgoing interface2.

Therefore, after FortiGate forwards the packet to the destination, the source address, destination address, and destination port of the packet will be 10.200.3.1, 10.0.1.10, and 443, respectively.

You can find more information about VIP objects and firewall policies in the Fortinet Documentation
