NSE5_FSM-6.3: Fortinet NSE 5 - FortiSIEM 6.3

Rule Evaluation in FortiSIEM: Rules in FortiSIEM are evaluated periodically to check if the defined conditions or subpatterns are met.

Frequency Field: The Frequency field in a rule determines the interval at which the rule's subpattern will be evaluated.

Evaluation Interval: This defines how often the system will check the incoming events against the rule's subpattern to determine if an incident should be triggered.

Impact on Performance: Setting an appropriate frequency is crucial to balance between timely detection of incidents and system performance.

Examples:

If the Frequency is set to 5 minutes, the rule will evaluate the subpattern every 5 minutes.

This means that every 5 minutes, the system will check if the conditions defined in the subpattern are met by the incoming events.

Reference: FortiSIEM 6.3 User Guide, Rules and Incidents section, which explains the Frequency field and how it impacts the evaluation of subpatterns in rules.

Data Collection Status: FortiSIEM displays various icons to indicate the status of data collection for different devices.

Pause Icon: The pause icon specifically indicates that data collection is paused, but this can happen due to several reasons.

Common Cause for Pausing: One common cause for pausing data collection is an issue such as a change of password, which prevents the system from authenticating and collecting data.

Exhibit Analysis: In the provided exhibit, the presence of the pause icon next to the device suggests that data collection has encountered an issue that has caused it to pause.

Reference: FortiSIEM 6.3 User Guide, Device Management and Data Collection Status Icons section, which explains the different icons and their meanings.

Incident Management in FortiSIEM: FortiSIEM tracks incidents and their occurrences to help administrators manage and respond to recurring issues.

Performance Rule Triggering: When a performance rule, such as one for high CPU usage, is repeatedly triggered, FortiSIEM updates the corresponding incident rather than creating a new one each time.

Incident Table Updates:

Incident Count: The Incident Count value increases each time the rule is triggered, indicating how many times the incident has occurred.

First Seen and Last Seen Times: These timestamps are updated to reflect the first occurrence and the most recent occurrence of the incident.

Reference: FortiSIEM 6.3 User Guide, Incident Management section, explains how FortiSIEM handles recurring incidents and updates the incident table accordingly.

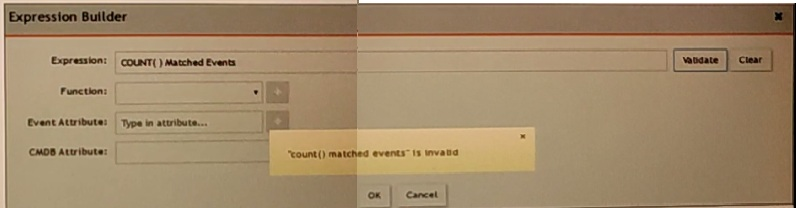

Expression Builder in FortiSIEM: The Expression Builder is used to create expressions for analyzing event data.

Correct Syntax: The correct syntax for counting matched events is COUNT(Matched Events).

Function: COUNT is a function that takes a parameter, in this case, 'Matched Events,' to count the number of occurrences.

Common Errors: Incorrect syntax, such as reversing the order or using parentheses improperly, can lead to invalid expressions.

Reference: FortiSIEM 6.3 User Guide, Expression Builder section, which explains the correct syntax and usage for creating valid expressions for event analysis.

WMI Method: Windows Management Instrumentation (WMI) is a set of specifications from Microsoft for consolidating the management of devices and applications in a network.

Log Collection: WMI is used to collect various types of logs from Windows devices.

Security Logs: Contains records of security-related events such as login attempts and resource access.

Application Logs: Contains logs generated by applications running on the system.

System Logs: Contains logs related to the operating system and its components.

Comprehensive Data Collection: By using WMI, FortiSIEM can gather a wide range of event logs that are crucial for monitoring and analyzing the security and performance of Windows devices.

Reference: FortiSIEM 6.3 User Guide, Data Collection Methods section, which details the use of WMI for collecting event logs from Windows devices.
