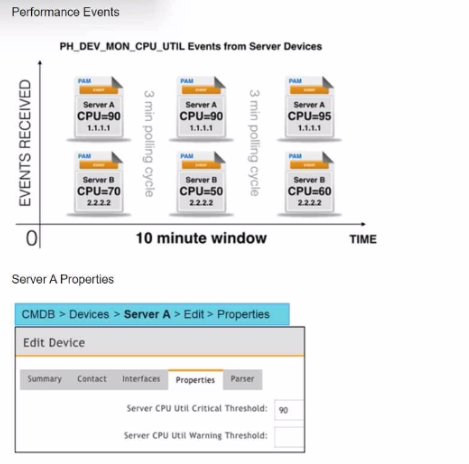

Event Collection Overview: The exhibits show three events collected over a 10-minute period from two servers, Server A and Server B.

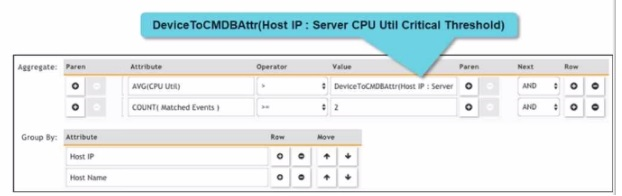

Rule Subpattern Settings: The rule subpattern specifies two conditions:

AVG(CPU Util) > DeviceToCMDBAttr(Host IP : Server CPU Util Critical Threshold): This checks if the average CPU utilization exceeds the critical threshold defined for each server.

COUNT(Matched Events) >= 2: This requires at least two matching events within the specified period.

Server A Analysis:

Events: Three events (CPU=90, CPU=90, CPU=95).

Average CPU Utilization: (90+90+95)/3 = 91.67, which exceeds the critical threshold of 90.

Matched Events Count: 3, which meets the condition of being greater than or equal to 2.

Incident Generation: Server A meets both conditions, so it generates one incident.

Server B Analysis:

Events: Three events (CPU=70, CPU=50, CPU=60).

Average CPU Utilization: (70+50+60)/3 = 60, which does not exceed the critical threshold of 90.

Matched Events Count: 3, but since the average CPU utilization condition is not met, no incident is generated.

Conclusion: Based on the rule subpattern, Server A will generate one incident, and Server B will not generate any incidents.

Reference: FortiSIEM 6.3 User Guide, Event Correlation Rules and Incident Management sections, which explain how incidents are generated based on rule subpatterns and event conditions.

FortiSIEM Architecture: In FortiSIEM, collectors gather data from various sources and send this data to supervisors and workers within the FortiSIEM architecture.

Communication Requirements: For collectors to effectively send data to the FortiSIEM system, specific communication channels must be open.

Port Usage: The primary port used for secure communication between the collectors and the FortiSIEM infrastructure is HTTPS (port 443).

Network Configuration: When configuring collectors in geographically separated sites, the HTTPS port must be open for the collectors to communicate with both the supervisor and the worker upload settings addresses. This ensures that the collected data can be securely transmitted to the appropriate processing and analysis components.

Reference: FortiSIEM 6.3 Administration Guide, Network Ports section details the necessary ports for communication within the FortiSIEM architecture.

License Renewal Process: When renewing a FortiSIEM license, it is essential to provide the system ID, which uniquely identifies the FortiSIEM instance.

Commands to Retrieve System ID:

phgetHWID: This command retrieves the hardware ID of the FortiSIEM appliance.

Usage: Run the command phgetHWID in the CLI to obtain the hardware ID.

phgetUUID: This command retrieves the universally unique identifier (UUID) for the FortiSIEM system.

Usage: Run the command phgetUUID in the CLI to obtain the UUID.

Verification: Both phgetHWID and phgetUUID are valid commands for retrieving the necessary system IDs required for license renewal.

Reference: FortiSIEM 6.3 Administration Guide, Licensing section details the commands and procedures for obtaining system identification information necessary for license renewal.

Incident Creation in FortiSIEM: Incidents in FortiSIEM are created based on specific patterns and conditions defined within the system.

Group By Function: The 'Group By' section in the 'Edit SubPattern' window specifies how the data should be grouped for analysis and incident creation.

Impact of Grouping: The way data is grouped affects the number of incidents generated. Each unique combination of the grouped attributes results in a separate incident.

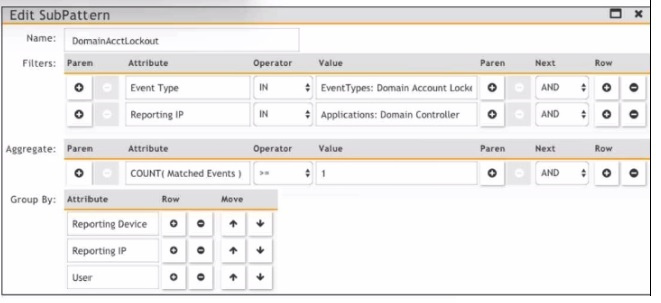

Exhibit Analysis: In the provided exhibit, the 'Group By' section lists 'Reporting Device,' 'Reporting IP,' and 'User.' This means incidents will be created for each unique combination of these attributes.

Reference: FortiSIEM 6.3 User Guide, Rule and Pattern Creation section, which details how grouping impacts incident generation.

Data Collection Status: FortiSIEM displays various icons to indicate the status of data collection for different devices.

Pause Icon: The pause icon specifically indicates that data collection is paused, but this can happen due to several reasons.

Common Cause for Pausing: One common cause for pausing data collection is an issue such as a change of password, which prevents the system from authenticating and collecting data.

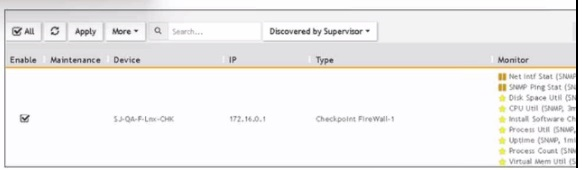

Exhibit Analysis: In the provided exhibit, the presence of the pause icon next to the device suggests that data collection has encountered an issue that has caused it to pause.

Reference: FortiSIEM 6.3 User Guide, Device Management and Data Collection Status Icons section, which explains the different icons and their meanings.

Grouping Attributes in Reports: When creating reports in FortiSIEM, certain attributes can be grouped to summarize and organize the data.

Unique Attributes: Attributes that are unique for each event cannot be grouped because they do not provide a meaningful aggregation or summary.

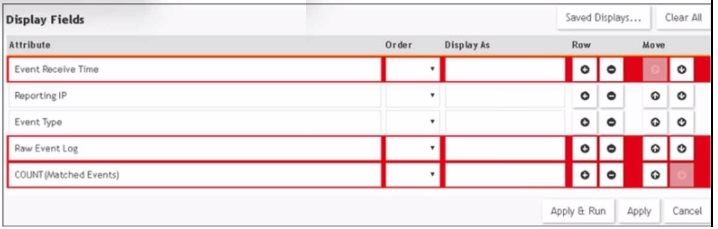

Red Highlighting Explanation: The red highlighting in the exhibit indicates attributes that cannot be grouped together due to their unique nature. These unique attributes include Event Receive Time, Reporting IP, Event Type, Raw Event Log, and COUNT(Matched Events).

Attribute Characteristics:

Event Receive Time is unique for each event.

Reporting IP and Event Type can vary greatly, making grouping them impractical in this context.

Raw Event Log represents the unprocessed log data, which is also unique.

COUNT(Matched Events) is a calculated field, not suitable for grouping.

Reference: FortiSIEM 6.3 User Guide, Reporting section, explains the constraints on grouping attributes in reports.

Event Type Population: In FortiSIEM, the Event Type field is populated based on specific identifiers within the raw message or event log.

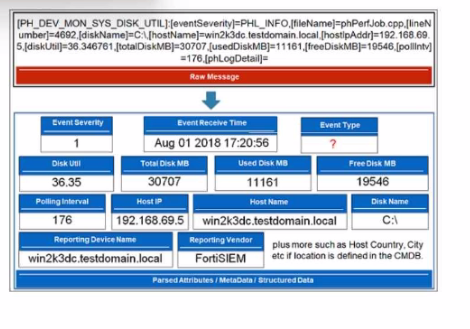

Raw Message Analysis: The exhibit shows a raw message with various components, including PH_DEV_MON_SYS_DISK_UTIL, PHL_INFO, phPerfJob, and diskUtil.

Primary Event Identifier: The PH_DEV_MON_SYS_DISK_UTIL at the beginning of the raw message is the primary identifier for the event type. It categorizes the type of event, in this case, a system disk utilization monitoring event.

Event Type Field: FortiSIEM uses this primary identifier to populate the Event Type field, providing a clear categorization of the event.

Reference: FortiSIEM 6.3 User Guide, Event Processing and Event Types section, details how event types are identified and populated in the system.

Process Monitoring in FortiSIEM: FortiSIEM can monitor critical processes on managed devices, such as an SMTP process on a Linux server.

Event Generation: When a critical process stops, FortiSIEM generates an event to alert administrators.

Event Types: Specific event types correspond to different monitored conditions. For a stopped process, the event type PH_DEV_MON_PROC_STOP is used.

Reasoning: The name PH_DEV_MON_PROC_STOP (Device Monitoring Process Stop) is a generic event type used by FortiSIEM to indicate that any monitored process, including SMTP, has stopped.

Reference: FortiSIEM 6.3 User Guide, Event Types section, explains the predefined event types and their usage in different monitoring scenarios.

Offline Licensing in FortiSIEM: FortiSIEM provides mechanisms for offline licensing to accommodate environments without direct internet access.

License Tool Command: The command ./phLicenseTool --collect license_req.dat is used to collect license information necessary for offline registration.

Procedure Analysis: The exhibit shows the output of this command, which indicates the collection of license information to a file named license_req.dat.

Offline License Registration: This collected data file is then typically uploaded to the FortiSIEM support portal or provided to the FortiSIEM support team for processing and generating a license file.

Reference: FortiSIEM 6.3 Administration Guide, Licensing section, details the procedures for both online and offline license registration, including the use of the phLicenseTool for offline scenarios.
