Fortinet NSE6_FAZ-7.2 Practice Test - Questions Answers, Page 3

The process logfiled in FortiGate units with an SSD disk is responsible for buffering logs when FortiAnalyzer is unreachable. If the connection to FortiAnalyzer is lost and the memory log buffer is full, logfiled allows logs to be buffered on disk. These logs are then sent to FortiAnalyzer once the connection is restored. This reliable logging mechanism ensures that logs are not lost during periods when FortiAnalyzer is not reachable, thereby maintaining log integrity and continuity.

Reference: FortiOS 7.4.1 Administration Guide, 'Log Buffering' and 'Reliable Logging' sections.

To restrict administrative access on FortiAnalyzer, two effective methods are using administrator profiles and configuring trusted hosts. Administrator profiles allow for defining the level of access and permissions for different administrators, controlling what each administrator can see and do within the FortiAnalyzer unit. Configuring trusted hosts enhances security by limiting administrative access to specified IP addresses, ensuring that administrators can only connect from approved locations or networks, thus preventing unauthorized access from outside specified subnets or IP addresses.

Reference: FortiAnalyzer 7.4.1 Administration Guide, 'Administrators' and 'Trusted hosts' sections.

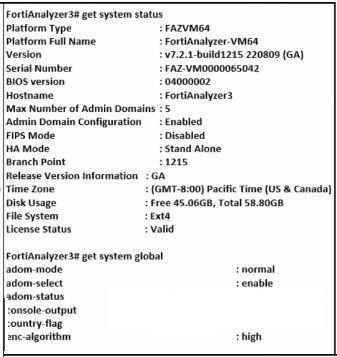

Based on the provided exhibit, which shows partial outputs of the system status and global settings for FortiAnalyzer devices, the devices cannot be configured as peers in an HA (High Availability) cluster. This is indicated by the HA Mode status being set to 'Stand Alone' for the displayed FortiAnalyzer device. For devices to be part of an HA cluster, they would need to have compatible HA configurations, and usually, they should not be in 'Stand Alone' mode. Additionally, the exhibit only shows information for one FortiAnalyzer, so it cannot be determined if there is another device ready to form an HA cluster with it.

For FortiAnalyzer reports, an output profile must be configured before reports can be generated and sent to an external server or system. This output profile determines how the reports are distributed, whether by email, uploaded to a server, or any other supported method. The options such as auto-cache, saving reports in CSV format, or reports availability across different ADOMs are separate features/settings and not directly related to the requirement of having an output profile for report generation.

The command diagnose debug application oftpd 8 is used to obtain detailed debug output for the OFTP (Over the FortiGate Protocol) daemon on FortiAnalyzer. This protocol is responsible for the communication and log transfer between FortiGate devices and FortiAnalyzer. By using this debug level, administrators can find information including the IP addresses of devices that are sending logs to FortiAnalyzer.

Reference: FortiOS 7.4.1 Administration Guide, 'Diagnostic commands' section.

To monitor the activities performed by any administrator, including a rogue one, on the FortiAnalyzer, you should use the FortiView feature. FortiView provides a comprehensive overview of the activities and events happening within the FortiAnalyzer environment, including administrator actions, making it the appropriate tool for tracking unauthorized or suspicious activities.

Reference: FortiAnalyzer 7.4.1 Administration Guide, 'System Settings > Fabric Management' section.

The configuration displayed in the exhibit indicates that the FortiAnalyzer is set up with a cluster virtual IP address of 192.168.101.222 assigned to interface port1. This setup is typically used for the FortiAnalyzer to receive logs on that interface when operating in a High Availability (HA) configuration. The exhibit does not provide enough information to conclude whether this FortiAnalyzer will be the primary unit in the HA cluster or the duration for the failover trigger; it only confirms the interface configuration for log reception.

Reference: Based on the FortiAnalyzer 7.4.1 Administration Guide, the similar configurations for HA and log reception are discussed, which would be relevant for understanding the settings in FortiAnalyzer 7.2.

Link aggregation is a method used to combine multiple network connections in parallel to increase throughput and provide redundancy in case one of the links fail. This feature is used in network appliances, including FortiAnalyzer, to add redundancy to the network connections, ensuring that there is a backup path for traffic if the primary path becomes unavailable.

Reference: The FortiAnalyzer 7.4.1 Administration Guide explains the concept of link aggregation and its relevance to

On FortiAnalyzer, analytics logs refer to the logs that have been processed, indexed, and then stored in the SQL database. This process allows for efficient data retrieval and analytics. Unlike basic log storage, which might involve simple compression and storage in a file system, analytics logs in FortiAnalyzer undergo an indexing process. This enables advanced features such as quick search, report generation, and detailed analysis, making it easier for administrators to gain insights into network activities and security incidents.

Reference: FortiAnalyzer 7.2 Administrator Guide - 'Log Management' and 'Data Analytics' sections.
