Fortinet NSE7_LED-7.0 Practice Test - Questions Answers, Page 4

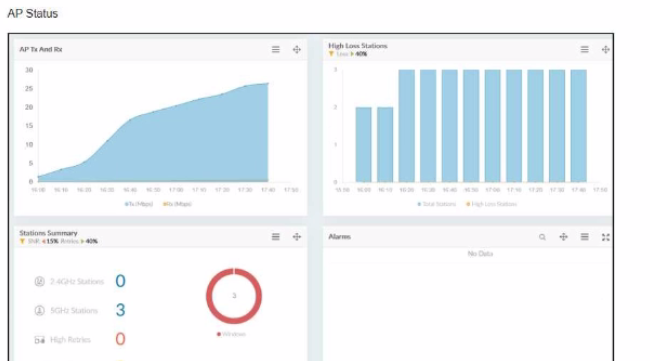

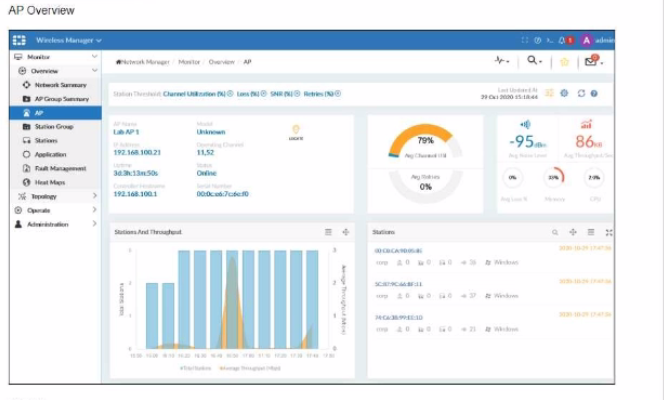

According to the exhibits, the AP 2.4 GHz interface is currently configured on channel 6, which is overlapping with other nearby APs on channels 4 and 8. This can cause interference and reduce the wireless performance. Therefore, changing the AP 2.4 GHz channel to 1 would improve the wireless connection, as it would avoid the overlapping channels and use a non-overlapping channel instead. Option A is false because changing the AP 2.4 GHz channel to 11 would still overlap with other nearby APs on channels 9 and 13. Option C is false because changing the AP 2.4 GHz channel to 9 would still overlap with other nearby APs on channels 6, 8, and 11. Option D is false because changing the AP 2.4 GHz channel to 13 would still overlap with other nearby APs on channels 9 and 11.

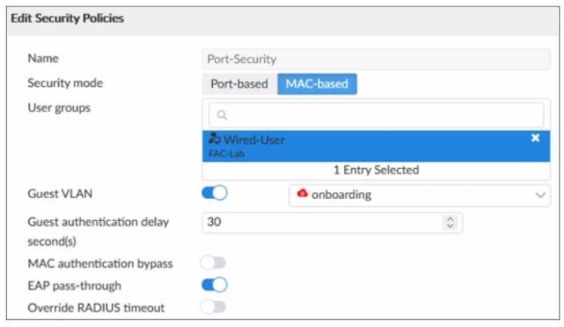

According to the FortiSwitch Administration Guide, ''If a device does not support 802.1X authentication, you can configure the switch to assign the device to an onboarding VLAN. The onboarding VLAN is a separate VLAN that you can use to provide limited network access to non-802.1X devices.'' Therefore, option C is true because it describes the behavior of FortiSwitch when the security profile shown in the exhibit is assigned to all ports. Option A is false because FortiSwitch can authenticate multiple devices connected to the same port using MAC-based or MAB-EAP modes. Option B is false because FortiSwitch will not try to authenticate non-802.1X devices using the device MAC address as the username and password, but rather use MAC authentication bypass (MAB) or EAP pass-through modes. Option D is false because all EAP messages will be terminated on FortiGate, not FortiSwitch, when using 802.1X authentication.

According to the FortiSwitch Administration Guide, ''MAC-based 802.1X security mode allows you to authenticate each device connected to a port using its MAC address as the username and password.'' Therefore, option B is true because it describes the MAC-based 802.1X security mode available on FortiSwitch. Option D is also true because FortiSwitch can grant different access levels to each device connected to the port based on the user group and security policy assigned to them. Option A is false because FortiSwitch does not authenticate a single device and open the port to other devices connected to the port, but rather authenticates each device individually. Option C is false because MAC-based 802.1X security mode can be used in conjunction with MAC authentication bypass (MAB) or EAP pass-through modes, which are fallback options for non-802.1X devices.

According to the FortiGate Administration Guide, ''FortiGate can learn the FortiManager IP address or FQDN for zero-touch provisioning from a DNS server using A or AAAA records. The DNS server must be configured to resolve the hostname fortimanager.fortinet.com to the IP address or FQDN of the FortiManager device.'' Therefore, option D is true because it describes the method for FortiGate to learn the FortiManager IP address or FQDN for zero-touch provisioning. Option A is false because LDAP is not used for zero-touch provisioning. Option B is false because TFTP is not used for zero-touch provisioning. Option C is false because DHCP options 240 and 241 are not used for zero-touch provisioning.

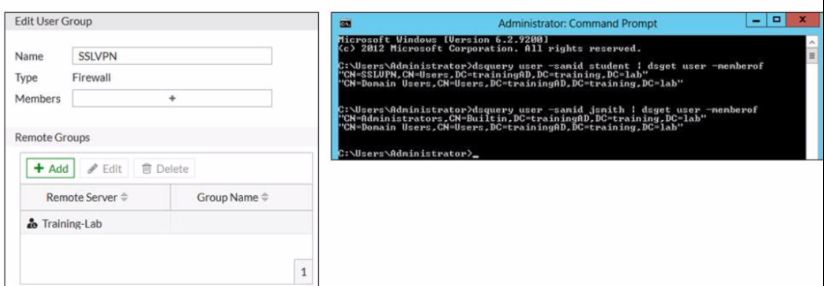

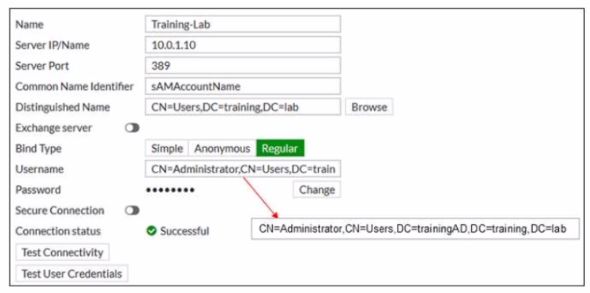

According to the exhibits, the LDAP server configuration on FortiGate has the Distinguished Name set to ''dc=training,dc=lab''. However, according to the output of the dsquery command on the Windows AD server, the Distinguished Name of the domain should be ''dc=trainingAD,dc=training,dc=lab''. Therefore, option C is true because the Distinguished Name on FortiGate is configured incorrectly and does not match the actual Distinguished Name of the domain. Option A is false because the Common Name Identifier on FortiGate is configured correctly as ''cn''. Option B is false because the Bind Type on FortiGate is configured correctly as ''Regular''. Option D is false because the Username on FortiGate is configured correctly as ''cn=admin,cn=users,dc=trainingAD,dc=training,dc=lab''.

According to the FortiGate Administration Guide, ''EAP-TLS is the most secure EAP method. It requires a digital certificate on both the server end and the client end. The server and client authenticate each other using their certificates.'' Therefore, option D is true because it describes the EAP method that requires the use of a digital certificate on both the server end and the client end. Option A is false because EAP-TTLS only requires a digital certificate on the server end, not the client end. Option B is false because PEAP also only requires a digital certificate on the server end, not the client end. Option C is false because EAP-GTC does not require a digital certificate on either the server end or the client end.
