Salesforce Certified MuleSoft Integration Architect I Practice Test - Questions Answers, Page 10

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitionsAPI client* An application component * that accesses a service * by invoking an API of that service - by definition of the term API over HTTPAPI consumer* A business role, which is often assigned to an individual * that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIsAPI implementation* An application component * that implements the functionality

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

* Option B shouldn't be used unless extremely needed, if RAML is changed, client needs to accommodate changes. Question is about minimizing impact on Client. So this is not a valid choice.

* Option C isn't valid as Business can't stop for consumers acknowledgment.

* Option D again needs Client to accommodate changes and isn't viable option.

* Best choice is A where RAML definition isn't changed and underlined functionality is changed without any dependency on client and without impacting client.

High availability is about up-time of your application

A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well

B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.

C) High availability can be achieved by below two models for on-premise MuleSoft implementations.

1) Mule Clustering -- Where multiple Mule servers are available within the same cluster environment and the routing of requests will be done by the load balancer. A cluster is a set of up to eight servers that act as a single deployment target and high-availability processing unit. Application instances in a cluster are aware of each other, share common information, and synchronize statuses. If one server fails, another server takes over processing applications. A cluster can run multiple applications. ( refer left half of the diagram)

In given scenario, it's mentioned that 'data cannot be shared among of different instances'. So this is not a correct choice.

2) Load balanced standalone Mule instances -- The high availability can be achieved even without cluster, with the usage of third party load balancer pointing requests to different Mule servers. This approach does not share or synchronize data between Mule runtimes. Also high availability achieved as load balanced algorithms can be implemented using external load balancer. ( refer right half of the diagram)

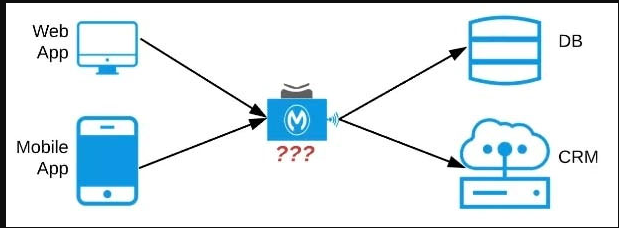

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

Correct answer is Workers are randomly distributed across available AZs within that region. This ensure high availability for deployed mule applications Mulesoft documentation reference :

https://docs.mulesoft.com/runtime-manager/cloudhub-hadr

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

.<region>.cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. <region> is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp.<region>.cloudhub.io redirects to

http://mule-worker-myApp.<region>.cloudhub.io:8081

HTTPS traffic to https://myApp.<region>.cloudhub.io redirects to

https://mule-worker-myApp.<region>.cloudhub.io:8082

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-json-threat
