Salesforce Certified MuleSoft Integration Architect I Practice Test - Questions Answers, Page 7

SLAs and non-functional requirements to access the backend systems. Only this option actually speaks to design parameters and reqs.*Below two are technical implementations and not the part of design: - Snapshots of the Mule application's flows, including their error handling - The credentials to access the backend systems and contact details for the administrator of each system*List of consumers is not relevant to the design

As the stakeholders are semitechnical users , preferred option is Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth

* On Error Propagate halts execution and sends error to the client. In this scenario it's mentioned that 'processing of other rows must not be affected' so Option B and C are ruled out.

* Scatter gather is used to club multiple responses together before processing. In this scenario, we need sequential processing. So option A is out of choice.

* Correct answer is For Each scope & On Error Continue scope Below requirement can be fulfilled in the below way

1) Using For Each scope , which will send each row from csv file sequentially. each row needs to be sent sequentially as requirement is to send the message in exactly the same way as it is mentioned in the csv file

2) Also other part of requirement is if any processing step for a row fails then it should log an error but should not affect other record processing . This can be achieved using On error Continue scope on these set of activities. so that error will not halt the processing. Also logger needs to be added in error handling section so that it can be logged.

* Attaching diagram for reference. Here it's try scope, but similar would be the case with For Each loop.

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

https://docs.mulesoft.com/access-management/external-identity

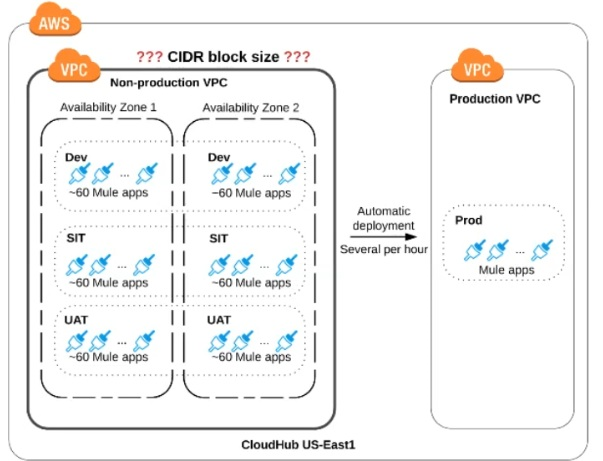

Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP * For zero downtime deployment, each worker in CloudHub needs additional IP addresses * A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) * The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 * The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .

Other IP's are insufficient.

If the size of the stream exceeds the maximum, a STREAM_MAXIMUM_SIZE_EXCEEDED error is raised.

* Organization should continue to use SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching.

* Reason is that Anypoint exchange is not full fledged version repositories like GitHub.

* But at same time it is tightly coupled with Mule assets

Below Anypoint Connectors support transactions JMS -- Publish -- Consume VM -- Publish -- Consume Database -- All operations
