Salesforce Certified MuleSoft Platform Architect I Practice Test - Questions Answers

The number of API specifications in RAML or OAS format publishedto Anypoint Exchange >> The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.>> It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints>> Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.

When there is one CloudHub deployment of the API implementation to three CloudHub workers that must share the cache state. Key details in the scenario:>> Use the CloudHub Object Store via the Object Store connectorConsidering above details:>> CloudHub Object Stores have one-to-one relationship with CloudHub Mule Applications.>> We CANNOT use an application's CloudHub Object Store to be shared among multiple Mule applications running in different Regions or Business Groups or Customer-hosted Mule Runtimes by using Object Store connector.>> If it is really necessary and very badly needed, then Anypoint Platform supports a way by allowing access to CloudHub Object Store of another application using Object Store REST API. But NOT using Object Store connector.So, the only scenario where we can use the CloudHub Object Store via the Object Store connector to persist the cache's state is when there is one CloudHub deployment of the API implementation to multiple CloudHub workers that must share the cache state.

When server-side load-balanced TLS mutual authentication isrequired between API implementations and API clients Fact/ Memory Tip: Although there are many benefits of CloudHub Dedicated Load balancer, TWO important things that should come to ones mind for considering it are:>> Having URL endpoints with Custom DNS names on CloudHub deployed apps>> Configuring custom certificates for both HTTPS and Two-way (Mutual) authentication.Coming to the options provided for this question :>> WeCANNOT use DLB to perform cross-region load balancing between separate deployments of the same Mule application.>> We can have mapping rules to have more than one DLB URL pointing to same Mule app. But vicevera (More than one Mule app having same DLB URL) is NOT POSSIBLE>> It is true that DLB helps to setup custom DNS names for Cloudhub deployed Mule apps but NOT true for apps deployed to Customer-hosted Mule Runtimes.>> It is true to that we can load balance API invocations across multiple CloudHub workers using DLB but it is NOT A MUST. We can achieve the same (load balancing) using SLB (Shared Load Balancer) too. We DO NOT necessarily require DLB for achieve it.So the only right option that fits the scenario and requires us to use DLB is when TLS mutual authentication is required between API implementations and API clients.

Data on past API invocations to help identify anomalies and usagepatterns across various APIs API Invocation metrics provided by Anypoint Platform:>> Does NOT provide any Return Of Investment (ROI) related information. So the option suggesting it is OUT.>> Does NOT provide any information w.r.t how APIs are reused, whether there is effective usage of APIs or not etc...>> Does NOT prodive any prediction information as such to help us proactively identify any future policy violations.So, the kind of data/information we can get from such metrics is on past API invocations to help identify anomalies and usage patterns across various APIs.

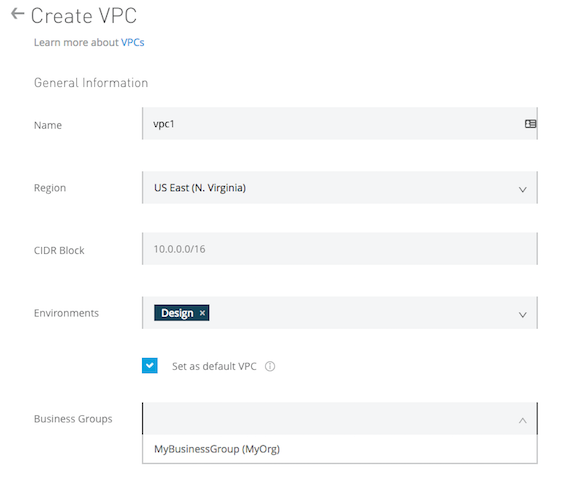

Traffic between Mule applications deployed to an Anypoint VPC andon-premises systems can stay within a private network >> The private IP address range of an Anypoint VPC is NOT automatically chosen by CloudHub. It is chosen by us at the time of creating VPC using thr CIDR blocks.CIDR Block: The size of the Anypoint VPC in Classless Inter-Domain Routing (CIDR) notation.For example, if you set it to 10.111.0.0/24, the Anypoint VPC is granted 256 IP addresses from 10.111.0.0 to 10.111.0.255.Ideally, the CIDR Blocks you choose for the Anypoint VPC come from a private IP space, and should not overlap with any other Anypoint VPC's CIDR Blocks, or any CIDR Blocks in use in your corporate network.

that each CloudHub environment requires a separate Anypoint VPC. Once an Anypoint VPC is created, we can choose a same VPC by multiple environments. However, it is generally a best and recommended practice to always have seperate Anypoint VPCs for Non-Prod and Prod environments.>> We use Anypoint VPN to link the underlying AWS VPC to an on-premises (non AWS) private network. NOT VPC Peering.Only true statement in the given choices is that the traffic between Mule applications deployed to an Anypoint VPC and on-premises systems can stay within a private network.https://docs.mulesoft.com/runtime-manager/vpc-connectivity-methods-concept

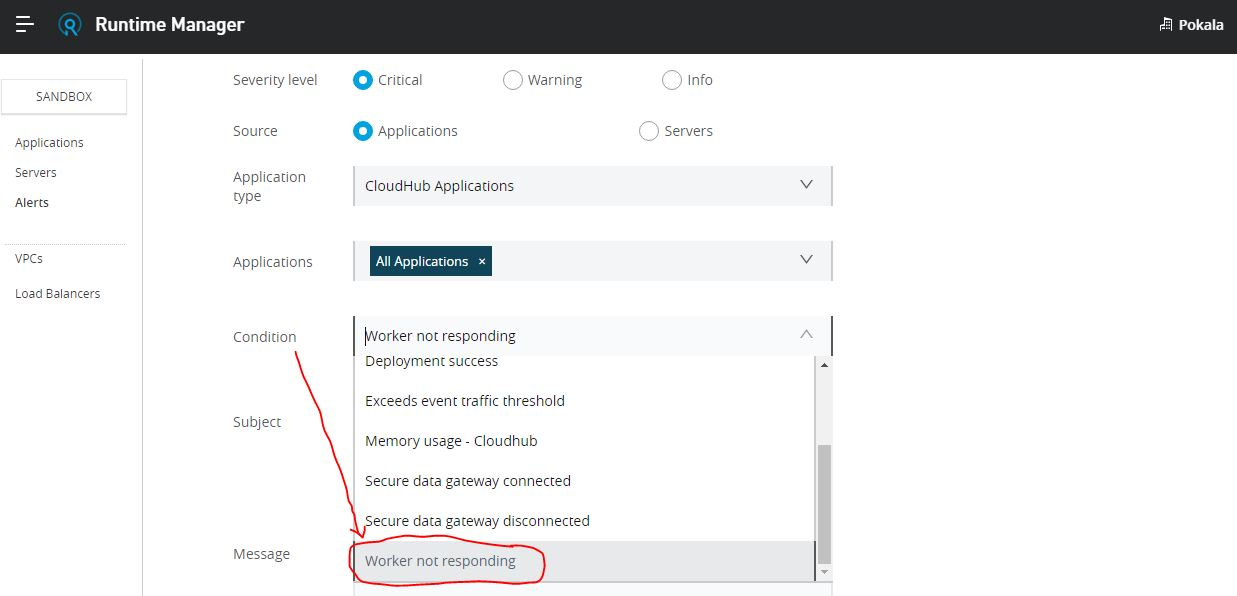

Configure a ''Worker not responding'' alert in Anypoint Runtime Manager. >>All the options eventually helps to generate the alert required when the application stops responding.>>However, handling exceptions within calling API and then raising alert from API client is inappropriate and silly. There could be many API clients invoking the API implementation and it is not ideal to have this setup consistently in all of them. Not a realistic way to do.>>Implementing a health check/ heartbeat with in the API and calling from outside to detmine the health sounds OK but needs extra setup for it and same time there are very good chances of generating false alarms when there are any intermittent network issues between external tool calling the health check API on API implementation. The API implementation itself may not have any issues but due to some other factors some false alarms may go out.>>Creating an alert in API Manager when the API receives no requests within a specified time period would actually generate realistic alerts but even here some false alarms may go out when there are genuinely no requests fromAPI clients.The best and right way to achieve this requirement is to setup an alert on Runtime Manager with a condition 'Worker not responding'. This would generate an alert ASSOONAS the workers become unresponsive.

Bottom of FormTop of Form

Implement required changes to the Process API implementation sothat, whenever possible, the Process API's RAML definition remains unchanged. Key requirement in the question is:>> Approach that minimizes the impact of this change on API clientsBased on above:>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API's RAML definition remains unchanged.

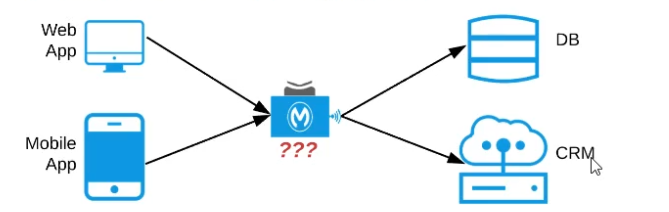

Separate Experience APIs for the mobile and web app, but acommon Process API that invokes separate System APIs created for the database and CRM system As per MuleSoft's API-led connectivity:>> Experience APIs should be built as per each consumer needs and their experience.>> Process APIs should contain all the orchestration logic to achieve the business functionality.>> System APIs should be built for each backend system to unlock their data.

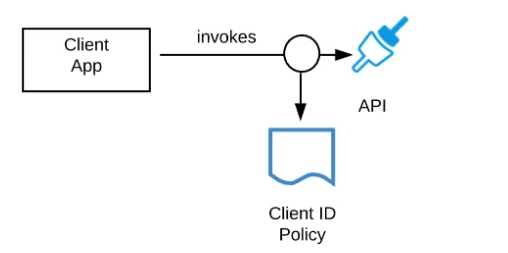

The client ID and secret obtained from Anypoint Exchange for theAPI instance in the STAGING environment >> We CANNOT use the client ID and secret of Anypoint Platform account or any individual environments for accessing the APIs>> As the type of policy that is enforced on the API in question is 'Client ID Enforcment Policy', OAuth token based access won't work.Right way to access the API is to use the client ID and secret obtained from Anypoint Exchange for the API instance in a particular environment we want to work on.Managing API instance Contracts on API Managerhttps://docs.mulesoft.com/api-manager/1.x/request-access-to-api-taskhttps://docs.mulesoft.com/exchange/to-request-accesshttps://docs.mulesoft.com/api-manager/2.x/policy-mule3-client-id-based-policies
