Refer to Exhibit.

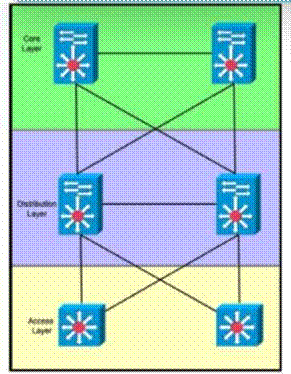

Refer to the exhibit. An engineer Is designing a multicampus Layer 3 Infrastructure using EIGRP as the routing protocol. The design must provide quick replies to queries In the event of a downlink, prevent unnecessary queries, and ensure that traffic does not unnecessarily transit the access layer.
Which two actions must the engineer take for the network design? (Choose two.)
Configure core layer switches as stub routers.
Configure distribution layer switches to summarize routes to the core layer.
Configure access layer switches as stub routers.
Configure access layer and core layer switches as stub routers.
Configure access layer switches to summarize routes to the distribution layer.
Refer to Exhibit.

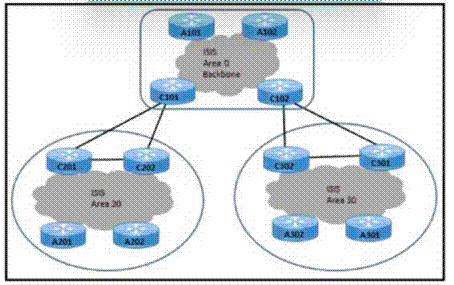

Refer to the exhibit. An architect is designing a hierarchical ISIS solution for a customer with these requirements:
Routers will double In all areas within the next 24 months.
Link flaps within areas 20 and 30 must not impact the backbone area.
Traffic originating from A201 and A302 routers must connect to application servers in the backbone.
Which design must the architect select?
C201 Level 1/2, A301 Level 1/2 and A102 Level 1/2
C101 Level 1/2. A201 Level 1, and A101 Level 2
C102 Level 2. A202 Level 2, and A102 Level 1
C302 Level 2. A302 Level 1/2. and A101 Level 2
Which WAN connectivity technology is optimal for edge computing compared to others and why?
Due to low latency, high bandwidth, and closest proximity to the user. 4G/5G connectivity is the optimal WAN technology for edge computing compared to L3 VPN MPLS connectivity, which offers native separation and security with close proximity to the data center.
Due to high bandwidth, separation and security, and proximity to the data center network. DWDM Is the optimal WAN technology lor edge computing compared to 4G/5G connectivity, which offers native separation and security with close proximity to the data center.
Due to low latency, high bandwidth, and closest proximity to the user, L3 VPN MPLS connectivity is the optimal WAN technology for edge computing compared to 4G/5G connectivity, which offers native separation and security with close proximity to the data center.
Due to low cost, high bandwidth, low latency, and closest proximity to the edge of the network, Mero Ethernet is the optimal WAN technology for edge computing compared to MPLS, which offers native separation and security with close proximity to the data center.
What is the purpose of a TLOC extension in a Cisco SD-WAN network fabric?
to facilitate WAN Edge router redundancy within a site
to identify the physical interface where a WAN Edge router connects to the WAN transport network
to expand the number of colors that are potentially applied to a network transport interface
to aggregate multiple physical interfaces into a single logical Interface
Refer to Exhibit.
Refer to the exhibit. A network engineer with an employee ID: 4384:99:754 must design a BGP solution based on these conditions:
Traffic sessions occur between the branches and the data center.
Branch B has limited resources to process routing updates.
HQ must filter out all prefixes from branch A to R4.
Which outbound route filtering (ORF) solution must the engineer choose?
Use a prefix list with the 192.168.10.0/24 subnet for ORF on R4.
Use a prefix list with the 10.10.10.0/24 subnet for ORF on R2
Use a prefix list with the 10.10.10.0/24 subnet for ORF on R5.
Use a prefix list with the 192.168.10.0/24 subnet for ORF on R2.
Which information update is carried by OMP and enables the Cisco SD-WAN to build a secure overlay fabric on top of any public or private transport without regard for the actual link IP?
TLOC
RLOC
LISP PITR
DTLS
An engineer must design a management network for a customer's enterprise network. The design must:
provide the ability to grant and revoke access privileges allow only protocols SSH, NTP, FTP, and SNMP restrict access to management Interfaces
Which solution must the engineer choose to meet the requirements?
in-band
enterprise internal private
out-of-band
mGRE
Refer to Exhibit.

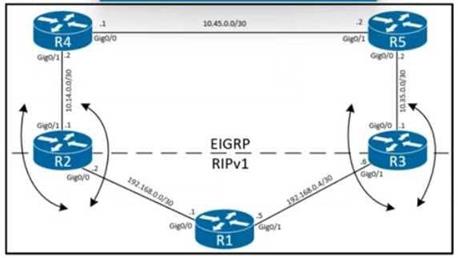

Refer to the exhibit. An engineer Is designing a redistribution solution for a customer. The customer recently acquired another company and decided to integrate the new network running RlPv1 with the company's existing network. Which redistribution technique must the engineer select to ensure the multipoint two-way redistribution does not cause routing loops?
distribute-lists inbound under the EIGRP process denying RIPv1 learned prefixes
distribute-lists outbound under the EIGRP process denying RIPv1 learned prefixes
distribute-lists outbound under the RIPv1 process denying EIGRP learned prefixes
distribute-lists inbound under the RIPv1 process denying EIGRP learned prefixes
Refer to Exhibit.

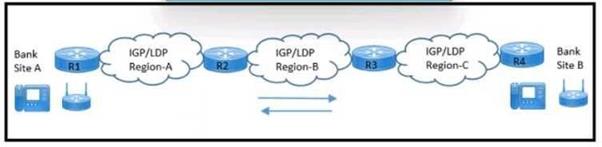

Refer to the exhibit. An architect must design a solution to connect bank site A with bank site B and support:
network operation center monitoring end-to-end L3VPN and L2VPN traffic company adding thousands of routes in the next two years
Which two BGP solutions must the design include? (Choose two.)
Establish full mesh IBGP peering with ail routers in different IGP domains.
Redistribute different IGP domain routes in a BGP IPv4 routing instance.
Transport site routes using a BGP VPNv4 address family on the PE routers.
Apply BGP policies on all routers to filter out ABR and PE loopback IP addresses.
Connect multiple IGP'LDP domains using a BGP IPv4 unicast family on the ABR.
Refer to Exhibit.

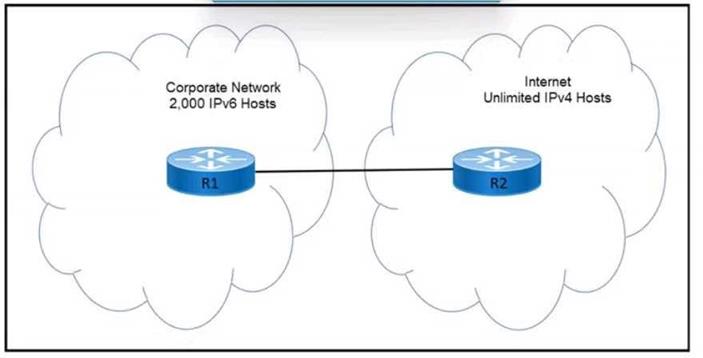

Refer to the exhibit. An engineer must design an address translation solution to provide Internet connectivity for the corporate network. The design Is restricted to the 172.16.168.0/22 subnet.
Which solution must the engineer choose?
stateful NAT64
stateless NAT64
stateful NAT66
stateless NAT66
