Cisco 300-730 Practice Test - Questions Answers, Page 7
Add to Whishlist
List of questions
Question 61
An engineer has integrated a new DMVPN to link remote offices across the internet using Cisco IOS routers. When connecting to remote sites, pings and voice data appear to flow properly, and all tunnel stats show that they are up.
However, when trying to connect to a remote server using RDP, the connection fails. Which action resolves this issue?
Adjust the MTU size within the routers.
Add RDP port to the extended ACL.
Replace certificate on the RDP server.
Change DMVPN timeout values.
Question 62
Where must an engineer configure a preshared key for a site-to-site VPN tunnel configured on a Cisco ASA?
isakmp policy
group policy
crypto map
tunnel group
Question 63
A network engineer has been tasked with configuring SSL VPN to provide remote users with access to the corporate network. Traffic destined to the enterprise IP range should go through the tunnel, and all other traffic should go directly to the Internet. Which feature should be configured to achieve this?
U-turning
hairpinning
split-tunnel
dual-homing
Question 64
A network engineer must design a remote access solution to allow contractors to access internal servers. These contractors do not have permissions to install applications on their computers. Which VPN solution should be used in this design?
IKEv2 AnyConnect
Clientless
Port forwarding
SSL AnyConnect
Question 65

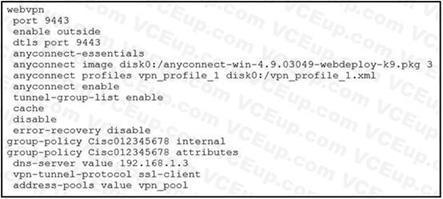

Refer to the exhibit.
Which type of Cisco VPN is shown for group Cisc012345678?
Cisco AnyConnect Client VPN
DMVPN
Clientless SSLVPN
GETVPN
Question 66
Which command shows the smart default configuration for an IPsec profile?
show run all crypto ipsec profile
ipsec profile does not have any smart default configuration
show smart-defaults ipsec profile
show crypto ipsec profile default
The following table lists the commands that are enabled with the IKEv2 Smart Defaults feature, alongwith the default values....Device# show crypto ipsec profile defaultIPSEC profile defaultSecurity association lifetime: 4608000 kilobytes/3600 secondsResponder-Only (Y/N): NPFS (Y/N): NTransform sets={default: { esp-aes esp-sha-hmac },}https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_ike2vpn/configuration/xe-3s/sec-flex-vpn-xe-3s-book/sec-cfg-ikev2-flex.htm
Question 67

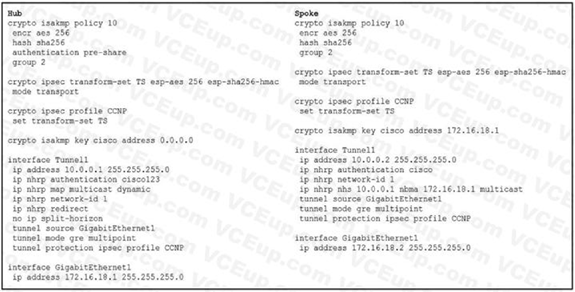

Refer to the exhibit.
The DMVPN spoke is not establishing a session with the hub. Which two actions resolve this issue?
(Choose two.)
Change the spoke nhs to 172.16.18.1 and the nbma to 10.0.0.1.
Change the transform set to mode tunnel.
Change the ISAKMP policy authentication on the spoke to pre-shared.
Change the ISAKMP key address on the spoke to 0.0.0.0.
Change the nhrp authentication key on the spoke to cisco123.
Question 68

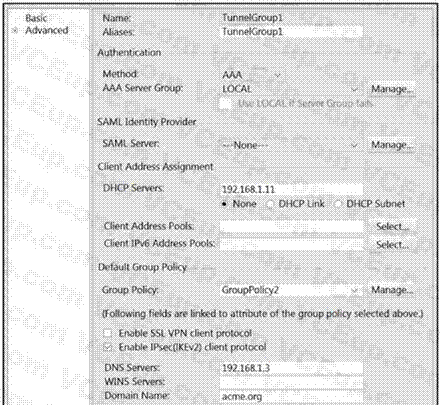

Refer to the exhibit.
A network engineer is configuring a remote access SSLVPN and is unable to complete the connection using local credentials. What must be done to remediate this problem?
Enable the client protocol in the Cisco AnyConnect profile.
Configure a AAA server group to authenticate the client.
Change the authentication method to local.
Configure the group policy to force local authentication.
Question 69
Which two NHRP functions are specific to DMVPN Phase 3 implementation? (Choose two.)
registration reply
redirect
resolution reply
registration request
resolution request
NHRP redirect is a function that allows the hub to inform the source spoke of a better path to reach thedestination spoke, by sending an NHRP redirect message containing the IP address of the destinationspoke.This triggers the source spoke to send an NHRP resolution request to the destination spoke, inorder to establish a direct spoke-to-spoke tunnel1.NHRP resolution reply is a function that allows the destination spoke to respond to the NHRP resolutionrequest from the source spoke, by sending an NHRP resolution reply containing its own IP address andthe IP address of the source spoke.This confirms the establishment of the direct spoke-to-spoke tunnel,and also allows the destination spoke to create a reciprocal tunnel to the source spoke2.These two functions are specific to DMVPN Phase 3, because they enable spoke-to-spokecommunication without requiring a dynamic routing protocol or going through the hub.In DMVPN Phase1 and Phase 2, NHRP registration request, registration reply, and resolution request are also used, butthey have different purposes and effects3.
Question 70
A network engineer must implement an SSLVPN Cisco AnyConnect solution that supports 500 concurrent users, ensures all traffic from the client passes through the ASA, and allows users to access all devices on the inside interface subnet
(192.168.0.0/24). Assuming all other configuration is set up appropriately, which configuration implements this solution?

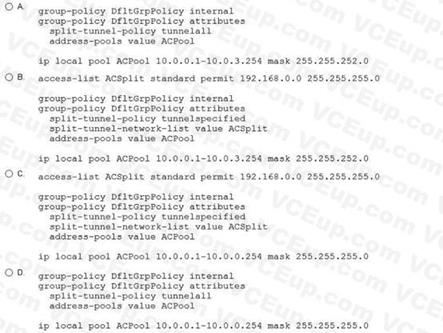

Option A
Option B
Option C
Option D
ensures all traffic from the client passes through the ASA' that is one of the requirements. Meaning alltraffic should pass through the tunnel, I know they mention 192.168.0.0 network but that is just toconfuse
