An enterprise network has two core routers that connect to 200 distribution routers and uses fullmesh IBGP peering between these routers as its routing method. The distribution routers are experiencing high CPU utilization due to the BGP process. Which design solution is the most cost effective?
Implement route reflectors on the two core routers
Increase the memory on the core routers
Implement e BGP between the core and distribution routers
Increase the memory on the distribution routers
Increase bandwidth between the core routers
You want to mitigate failures that are caused by STP loops that occur before UDLD detects the failure or that are caused by a device that is no longer sending BPDUs. Which mechanism do you use along with UDLD?
Root guard
BPDU guard
Loop guard
BPDU filtering
A multicast network is sing Bidirectional PIM. Which two combined actions achieve high availability so that two RPs within the same network can act in a redundant manner? (Choose two)
Use two phantom RP addresses
Manipulate the administration distance of the unicast routes to the two RPs
Manipulate the multicast routing table by creating static mroutes to the two RPs
Advertise the two RP addresses in the routing protocol
Use anycast RP based on MSDP peering between the two RPs
Control routing to the two RPs through a longest match prefix
Which purpose of a dynamically created tunnel interface on the design of IPv6 multicast services Is true?
first-hop router registration to the RP
multicast client registration to the RP
multicast source registration to the RP
transport of all IPv6 multicast traffic
Refer to the exhibit.
ACME Mining has four data centers in Santiago. Cape Town. Mumbai, and Beijing, full-mesh connected via a 400 Mb/s EVP-LAN They want to deploy a new mission-critical application with these requirements: cluster heartbeat 2 Mb/s continuous (250 KB/s) cluster heartbeat one-way maximum latency 100 ms

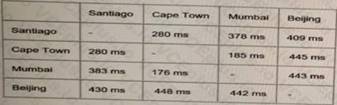

These are the current ping tests results between the four data centers:
Which hosting data center pair can host the new application?
Mumbai and Beijing
Santiago and Cape Town
Santiago and Mumbai
Cape Town and Mumbai
Cape Town and Beijing
Santiago and Beijing
How can EIGRP topologies be designed to converge as fast as possible in the event of a point-topoint link failure?
Limit the query domain by use of distribute lists.
Build neighbor adjacencies in a triangulated fashion.
Build neighbor adjacencies in squared fashion.
Limit the query domain by use of summarization.
Limit the query domain by use of default routes.
Which effect of using ingress filtering to prevent spoofed addresses on a network design is true?
It reduces the effectiveness of DDoS attacks when associated with DSCP remarking to Scavenger.
It protects the network Infrastructure against spoofed DDoS attacks.
It Classifies bogon traffic and remarks it with DSCP bulk.
It filters RFC 1918 IP addresses.
Which relationship between IBGP and the underlying physical topology is true?
iBGP full mesh requirement does not dictate any specific network topology.
iBGP can worn only on a ring network topology with a link-state protocol like OSPF or IS-IS
iBGP full mesh requires an underlying fully meshed network topology.
iBGP does not work on a ring network topology even with an underlying IGP.
How many fully established neighbour relationships exist on an Ethernet with five routers running OSPF as network type broadcast?
5
6
7
10
20
Refer to the exhibit.
Traffic was equally balanced between Layer 3 links on core switches SW1 and SW2 before an introduction of the new video server in the network. This video server uses multicast to send video streams to hosts and now one of the links between core switches is over utilized Which design solution solves this issue?
Add more links between core switches.
Aggregate links Layer 2 link aggregation.
Apply a more granular load- balancing method on SW1.
Apply a more granular load-balancing method on SW2.
Filter IGMP joins on an over -utilized link.
