Question 211

(0)

Refer to the exhibit. Based on the image shown above, and assuming that the default scheduler of the Nokia 7750 SR is on an IOM2 card, in which order will packets be scheduled?

Question 212

(0)

When using an egress port scheduler, which scheduling loop priority are orphaned queues serviced on?

Question 213

(0)

Assume all transmitted frames on a SONET port are 1500 bytes and that the average frame overhead has been configured as 10%. If the total bandwidth of all queues, excluding overhead, needs to be gua

Question 214

(0)

Which of the following statements about port schedulers is TRUE?

Question 215

(0)

What type of unwanted packet drops can the proper configuration of a queue's burst-limit parameter prevent?

Question 216

(0)

Which of the following statements about the default scheduler in the Nokia 7750 SR is TRUE?

Question 217

(0)

Refer to the exhibit. Given the scheduler-policy parameters shown, and assuming the offered rate of each queue is 10 Mbps, what are the operational PIR and CIR for queue 3?

Question 218

(0)

Which of the following statements about the token buckets of a policer is TRUE?

Question 219

(0)

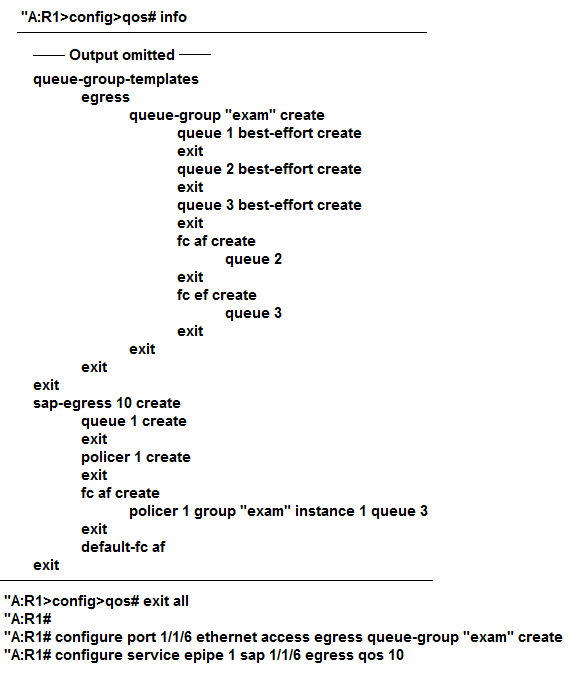

According to the SAP-egress policy configured and applied, which queue will AF traffic use?

Question 220

(0)

Which of the following is NOT a valid configuration value for a queue's CIR parameter within a SAP-ingress policy?

Question 211

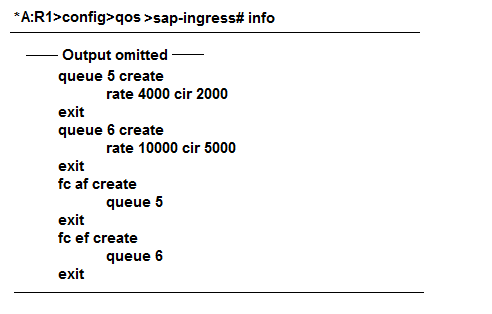

Refer to the exhibit.

Based on the image shown above, and assuming that the default scheduler of the Nokia 7750 SR is on an IOM2 card, in which order will packets be scheduled?

Queue 6 within-CIR packets, then queue 5 within-CIR packets, then queue 5 and queue 6 above-CIR packets in round-robin.

Queue 6 within-CIR packets, then queue 5 within-CIR packets, then queue 5 and queue 6 above-CIR packets in biased round-robin.

Queue 6 within-CIR packets, then queue 5 within-CIR packets, then queue 6 above-CIR packets, and finally queue 5 above-CIR packets.

Queue 6 and queue 5 within-CIR packets in biased round-robin, then queue 5 and queue 6 above-CIR packets in round-robin.

Show Answer Comment (0)

Question 212

When using an egress port scheduler, which scheduling loop priority are orphaned queues serviced on?

1st

8th

9th

17th

Show Answer Comment (0)

Assume all transmitted frames on a SONET port are 1500 bytes and that the average frame overhead has been configured as 10%. If the total bandwidth of all queues, excluding overhead, needs to be guaranteed at 55 Mbps, how much bandwidth should be configured for the egress port scheduler applied on that port?

55 Mbps / 1.1 = 50 Mbps

55 Mbps

55 Mbps + 55 Mbps * 0.1 / 1.1 = 60 Mbps

55 Mbps * 1.1 = 60.5 Mbps

Show Answer Comment (0)

Question 214

Which of the following statements about port schedulers is TRUE?

A port scheduler can only be implemented on a network egress port when queue-groups are configured for that port.

A port scheduler can be implemented on an access ingress port.

A port scheduler can be implemented without HQoS on an access egress port.

A port scheduler can be implemented on a network ingress port.

Show Answer Comment (0)

Question 215

What type of unwanted packet drops can the proper configuration of a queue's burst-limit parameter prevent?

Packet drops in the local queue resulting from traffic congestion.

Packet drops on the downstream nodes resulting from traffic congestion.

Packet drops in the local queue resulting from traffic bursts.

Packet drops on the downstream nodes resulting from traffic bursts.

Show Answer Comment (0)

Question 216

Which of the following statements about the default scheduler in the Nokia 7750 SR is TRUE?

A queue will be serviced as expedited if all of the forwarding classes mapped to it are expedited, regardless of its configured type.

A queue will be serviced as best-effort if all of the forwarding classes mapped to it are best-effort, regardless of its configured type.

A queue will be serviced as expedited if at least one of the forwarding classes mapped to it is expedited, regardless of its configured type.

A queue will be serviced as expedited if its type is configured as expedited, regardless of the forwarding classes mapped to it.

Show Answer Comment (0)

Question 217

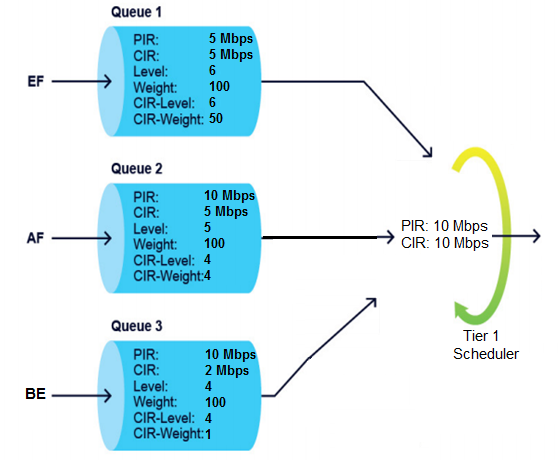

Refer to the exhibit.

Given the scheduler-policy parameters shown, and assuming the offered rate of each queue is 10 Mbps, what are the operational PIR and CIR for queue 3?

PIR = 4 Mbps, CIR = 1 Mbps

PIR = 1 Mbps, CIR = 1 Mbps

PIR = 10 Mbps, CIR = 1 Mbps

PIR = 5 Mbps, CIR = 1.25 Mbps

PIR = 1.25 Mbps, CIR = 1.25 Mbps

Show Answer Comment (0)
