Nokia 4A0-107 Practice Test - Questions Answers, Page 21

Question list

List of questions

Question 201

(0)

A profile-mode queue is configured with the following attributes: MBS = 10 KB, CBS = 5 KB and High-Priority- Only = 30%. Assume there is no CBS overbooking, and the slope-policy is disabled. If the

Question 202

(0)

Refer to the exhibit. According to the SAP-ingress QoS policy shown, which of the following statements about packets processed by policer 6 is TRUE?

Question 203

(0)

How is buffer memory allocated per forwarding complex on a Nokia FP3-based IMM?

Question 204

(0)

Forwarding sub-classes are configured in the context of which QoS policy type?

Question 205

(0)

Which of the following is NOT a factor when deciding if a packet can be accepted into a queue?

Question 206

(0)

Which of the following parameters is taken into account FIRST when a CFHP arbiter allocates bandwidth among its children policers?

Question 207

(0)

Which of the following is an example of something that CAN be done with hierarchical policing (CFHP) but CANNOT be done with standalone policers?

Question 208

(0)

When we select the adaptation rule ''min'', how are the operational CIR/PIR rates of a queue calculated?

Question 209

(0)

If two queues complete for bandwidth in a hierarchical scheduler environment, which parameter is used by their parent scheduler to determine the priority with which each queue can use bandwidth abov

Question 210

(0)

How many tiers of schedulers can be supported in hierarchical scheduling on the Nokia 7750 SR?

Question 201

A profile-mode queue is configured with the following attributes: MBS = 10 KB, CBS = 5 KB and High-Priority- Only = 30%. Assume there is no CBS overbooking, and the slope-policy is disabled. If the current queue depth is 8 KB, what will happen to an in-profile packet?

It will be discarded because the high-priority-only threshold is exceeded.

It will be stored in the queue's reserved buffer space and become out-of-profile.

It will be stored in the queue's reserved buffer space and remain in-profile.

It will contend for shared buffer space with packets from other queues.

Show Answer Comment (0)

Question 202

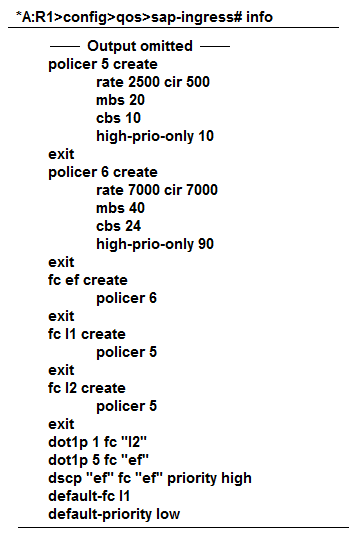

Refer to the exhibit.

According to the SAP-ingress QoS policy shown, which of the following statements about packets processed by policer 6 is TRUE?

All forwarded packets will be in-profile

Packets forwarded above CIR will be marked out-of-profile and the rest will be in-profile

Excess packets that arrive within a burst larger than CBS will be forwarded as out-of-profile

All forwarded packets will be out-of-profile

Show Answer Comment (0)

Question 203

How is buffer memory allocated per forwarding complex on a Nokia FP3-based IMM?

512 MB ingress, 512 MB egress

512 MB for network ports, 512 MB for access ports

3.84 GB dynamically allocated between ingress and egress

2 GB, with a minimum of 512 MB ingress and egress, and an additional 1 GB dynamically allocated

Show Answer Comment (0)

Question 204

Forwarding sub-classes are configured in the context of which QoS policy type?

Network

Scheduler

Slope

SAP-ingress

Network queue

Show Answer Comment (0)

Question 205

Which of the following is NOT a factor when deciding if a packet can be accepted into a queue?

Profile/priority state of a packet

Forwarding class

Queue depth

HPO setting

Show Answer Comment (0)

Question 206

Which of the following parameters is taken into account FIRST when a CFHP arbiter allocates bandwidth among its children policers?

PIR

CIR

Level

Weight

Show Answer Comment (0)

Question 207

Which of the following is an example of something that CAN be done with hierarchical policing (CFHP) but CANNOT be done with standalone policers?

Limiting the maximum forwarding rate of each individual policer and, at the same time, marking, packets as in-profile or out-of-profile.

Putting packets in a buffer as they are received, and marking packets as in-profile or out-of-profile as they are removed from the buffer.

Rate-limiting the collective output of several policers, and to reallocate bandwidth that is not utilized by some policers to other policers that need to use it.

Rate-limiting the collective output of several policers towards each egress FFPC, while maintaining control of the maximum overall forwarding rate.

Show Answer Comment (0)

Question 208

When we select the adaptation rule ''min'', how are the operational CIR/PIR rates of a queue calculated?

The administrative PIR values are ignored and both operational rates are set to the minimum residual rate allowed by the hardware.

The administrative PIR value is ignored and both operational rates are set to the administrative CIR value.

They are chosen as the largest multiple of the hardware rate step that is less than or equal to the corresponding CIR/PIR administrative value.

They are chosen as the smallest multiple of the hardware rate step that is greater than or equal to the corresponding CIR/PIR administrative value.

Show Answer Comment (0)

Question 209

If two queues complete for bandwidth in a hierarchical scheduler environment, which parameter is used by their parent scheduler to determine the priority with which each queue can use bandwidth above its committed rate?

level

cir-level

weight

cir-weight

Show Answer Comment (0)
