Question 181

(0)

If packets egressing a SAP do not match any criteria defined in the SAP-egress policy, which forwarding class will these packets be assigned to?

Question 182

(0)

Which of the following statements about behavior aggregate classification is TRUE?

Question 183

(0)

A SAP-ingress policy is configured so that ping traffic is classified as FC L1 and mapped to queue 3; however, all traffic is placed in queue 1. What is the most probable reason for this?

Question 184

(0)

Which of the following criteria is NOT used in the behavior aggregate classification option?

Question 185

(0)

How many bits in the IP ToS field define the packet's precedence?

Question 186

(0)

Which of the following is an advantage of using queue-groups on a service SAP?

Question 187

(0)

Refer to the exhibit. According to the SAP-ingress QoS policy shown, what is the maximum amount of memory that queue 5 can use from the shared buffer pool?

Question 188

(0)

By default, how does a hybrid port on a Nokia 7750 SR share its allocated buffer space between access and network pools?

Question 189

(0)

Which action should be taken to ensure that packets do not use the shared buffer space when put into a queue?

Question 190

(0)

Which priority-mode queue parameter may influence both the profile marking, and scheduling priority of a queue?

Question 181

If packets egressing a SAP do not match any criteria defined in the SAP-egress policy, which forwarding class will these packets be assigned to?

The default forwarding class defined in the SAP-egress policy.

The forwarding class inherited from network ingress classification.

Best Effort.

If there is no match, packets will be dropped.

Show Answer Comment (0)

Question 182

Which of the following statements about behavior aggregate classification is TRUE?

It sets both the forwarding class and the packet's dot1p, lsp-exp, precedence, or dscp field to the same value.

It groups all packets together into a single aggregate stream, and gives all packets the same treatment.

It copies the three most significant bits in the packet's dscp field into the forwarding class.

It assigns a forwarding class based on the packet's dot1p, lsp-exp, precedence, or dscp value.

Show Answer Comment (0)

Question 183

A SAP-ingress policy is configured so that ping traffic is classified as FC L1 and mapped to queue 3; however, all traffic is placed in queue 1. What is the most probable reason for this?

The default forwarding class for ICMP traffic is BE and cannot be changed.

The SAP has been shut down.

Queue 3 has no PIR or CIR configured, and thus cannot hold any packets.

The SAP-ingress policy has not been applied to the SAP.

Show Answer Comment (0)

Question 184

Which of the following criteria is NOT used in the behavior aggregate classification option?

dot1p

dst-mac

lsp-exp

dscp

Show Answer Comment (0)

Question 185

How many bits in the IP ToS field define the packet's precedence?

Show Answer Comment (0)

Question 186

Which of the following is an advantage of using queue-groups on a service SAP?

It enables CFHP.

It more scalable than using policers.

It allows a separate set of queues/policers for each VLAN on a port.

It allows a set of queues to be shared among multiple SAPs.

Show Answer Comment (0)

Question 187

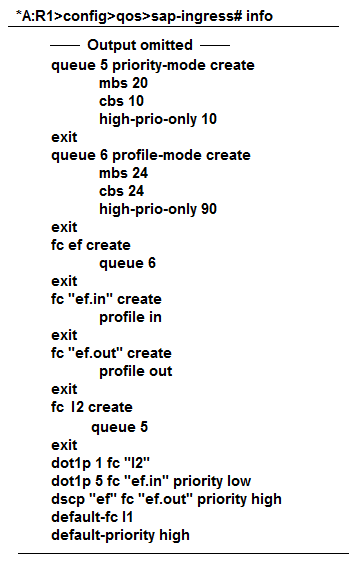

Refer to the exhibit.

According to the SAP-ingress QoS policy shown, what is the maximum amount of memory that queue 5 can use from the shared buffer pool?

1 kilobyte

2 kilobytes

10 kilobytes

20 kilobytes

Show Answer Comment (0)

Question 188

By default, how does a hybrid port on a Nokia 7750 SR share its allocated buffer space between access and network pools?

All buffer space is initially allocated to access pools, and some of it is reallocated to network pools if network interfaces are configured on it.

All buffer space is initially allocated to network pools, and some of it is reallocated to access pools if service SAPs are configured on it.

Buffer space is allocated 50% for access pools and 50% for network pools.

Buffer space is allocated 25% for access pools and 75% for network pools.

Show Answer Comment (0)

Question 189

Which action should be taken to ensure that packets do not use the shared buffer space when put into a queue?

Set the queue's CBS to 0

Set the queue's MBS equal to the CBS

Set the queue's high-priority-only equal to the MBS

Set the queue's MBS to 0

Set the queue's high-priority-only to 0

Show Answer Comment (0)

Question 190

Which priority-mode queue parameter may influence both the profile marking, and scheduling priority of a queue?

PIR

CIR

MBS

burst-limit

Show Answer Comment (0)
