Cisco 500-420 Practice Test - Questions Answers, Page 2

Controller-level and tier/node-level dashboards in AppDynamics are treated as separate entities. They are scoped differently, with controller-level dashboards providing a global view across the entire AppDynamics domain, and tier/node-level dashboards being specific to particular tiers or nodes within an application. Performance Analysts do not have the ability to cross-reference directly between these two sets of dashboards within the AppDynamics UI.

AppDynamics documentation on Dashboards: https://docs.appdynamics.com/latest/en/application-monitoring/custom-dashboards

To identify if automatic remediation actions have been taken for a health rule violation in AppDynamics, a Performance Analyst should expand the 'Description' field of the health rule violation event. This section will provide details on the actions executed as part of the automatic remediation process. These details help analysts understand the steps taken by the system to mitigate the issue without manual intervention.

Reference: AppDynamics documentation on Health Rule Violations and Automated Actions.

When new business transactions are not appearing on the Business Transaction Dashboard after deploying new code, developers should verify that there are no exclusion rules in place on the tier where the new code was deployed. Additionally, it is crucial to ensure that the Auto Discovery feature for servlets is enabled for Java agents, as this allows AppDynamics to automatically detect and name business transactions based on incoming requests to servlets. Both of these checks are necessary to ensure that new business transactions can be discovered and monitored.

Reference: AppDynamics documentation on Business Transaction detection and Java Agent configuration.

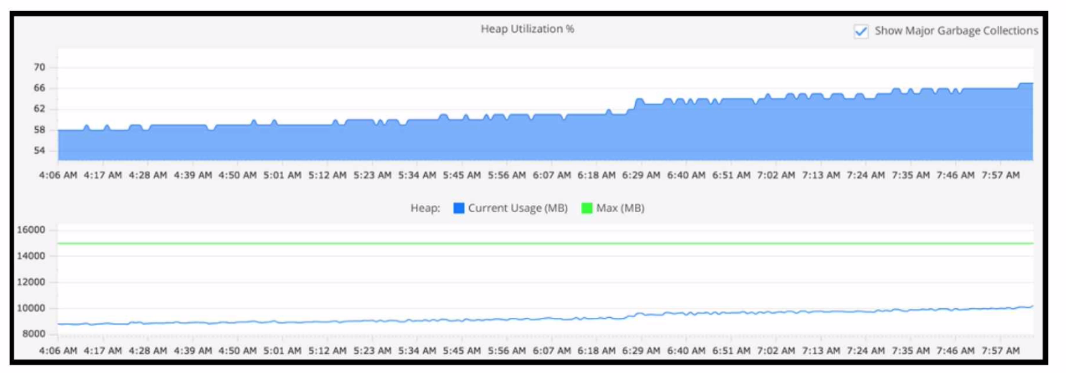

To confirm if a memory leak is occurring, one should refer to the Tiers and Nodes section of the AppDynamics Controller UI, navigate to the Memory tab, and observe the Heap Utilization over time in relation to the Heap's Current Usage (MB) versus the Maximum (MB) allocated. Consistent growth in heap utilization or an upward trend that does not decrement even after garbage collection indicates a potential memory leak.

When configuring an Information Point in AppDynamics, you can add match conditions to refine what gets measured. Match conditions based on a regex applied to the method allow you to specify which methods to include based on a regular expression pattern. Matching based on the invoked object allows you to specify which objects' methods are included, filtering the data according to the object type or instance. These conditions help in pinpointing specific methods or objects for which you want to collect runtime information.

Reference: AppDynamics documentation on Information Points and Match Conditions.

Backend calls in AppDynamics are the interactions that an application component has with external components or services. These can include calls to databases, remote service calls, and interactions between different tiers of an application.

A tier-to-tier request refers to any internal call that happens between different tiers (or nodes) within the same application. For example, a web tier calling an API service tier within the same application ecosystem.

A remote services call is an external call from an application to a service that resides outside of the application's environment, like a call to an external web service, REST API, or a third-party service provider.

AppDynamics documentation on Backend Detection: https://docs.appdynamics.com/21.6/en/application-monitoring/identify-backends

In the Browser Real User Monitoring (RUM) Dashboard, the Usage Stats section provides insights into user demographics, including the types of browsers and devices they are using. This section would help the Performance Analyst understand which browsers and devices are affected during a specific time period when there has been an increase in the Business Transaction error rate.

AppDynamics documentation on Browser RUM: https://docs.appdynamics.com/21.6/en/end-user-monitoring/browser-monitoring/browser-real-user-monitoring

When a Performance Analyst modifies an existing health rule that is already in a state of critical violation, the event that is typically triggered is 'Health Rule Violation Continues - Critical.' This event indicates that, despite the modification, the health rule is still being violated at a critical level. The system recognizes that the conditions for the health rule violation are still being met and continues to alert accordingly.

AppDynamics documentation on Health Rules and Events: Explains the different types of health rule events and the conditions under which they are triggered.

If the Average Response Time is increasing after the release of a new marketing offer, seeing an increase in Calls per Minute could quickly help the Performance Analyst determine that users may not be critically impacted. This increase may indicate that despite the higher average response time, more users are engaging with the application, possibly due to interest generated by the marketing offer. It suggests that the system is handling more load, which could be a factor in the increased response time.

AppDynamics documentation on Performance Metrics: Discusses the implications of various key performance indicators, including how an increase in Calls per Minute can be interpreted in the context of application performance.
