Avaya 72200X Practice Test - Questions Answers, Page 6

Question list

List of questions

Question 51

(0)

During Installation, through the exchange of security certificates, between which two entities does the Trust Management Service establish trust? (Choose two.)

Question 52

(0)

When does Communication Manager insert the shortcut flag during call processing?

Question 53

(0)

When one Avaya SIP Telephone (AST) user agent calls another AST user agent, Session Manager goes through different phases of processing the call. What is the maximum number of Phase Tags and what a

Question 54

(0)

In a SIP trace csapturing PPM messages, which device sends the getCallHistory PPM request, and what is it requesting?

Question 55

(0)

When a 96xx telephone with SIP firmware boots up, it goes through a number of steps. These steps include:

Question 56

(0)

You are configuring Shared Bandwidth Management for Call Admission Control (CAC) between Communication Manager (CM) and Session Manager (SM). Which two tasks must you perform to achieve this? (Choos

Question 57

(0)

Which event packages would you expect to see an AST Endpoint subscribe to?

Question 58

(0)

An IP (AST) user 1011111 and H.323 User 1011711 share a common Communication Manager (Evolution) server. Given the following actions:

Question 59

(0)

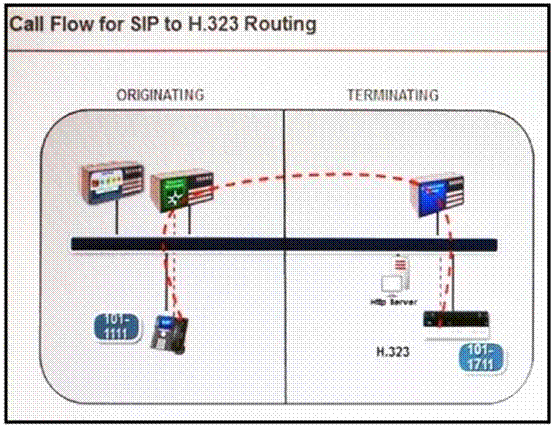

Refer to the exhibit. A SIP user is calling an H.323 user. In this call flow, during which phase does the Avaya Communication Manager (CM) Evolution Server handle the processing for each endpoin

Question 60

(0)

SIP user 1011111 is trying to call SIP user 1021111. If Session Manager cannot find a matching SIP Communication Profile for 1021111 in its SIP registry, what happens next?

Question 51

During Installation, through the exchange of security certificates, between which two entities does the Trust Management Service establish trust? (Choose two.)

Session Manager

Identity Management

System Manager

Communication Manager

Show Answer Comment (0)

Question 52

When does Communication Manager insert the shortcut flag during call processing?

During the termination phase (imsterm) of call processing

During the origination phase (imsorig) of call processing

During the initialization phase (imsinit) of call processing

During the dialing analysis phase (imsdialana) of call processing

Show Answer Comment (0)

Question 53

When one Avaya SIP Telephone (AST) user agent calls another AST user agent, Session Manager goes through different phases of processing the call.

What is the maximum number of Phase Tags and what are they called?

Four – imsorig, origdone, imsterm, termdone

Two – origappseq and termappseq

Three – ingress, process, egress

Two – imsorig and imsterm

Show Answer Comment (0)

Question 54

In a SIP trace csapturing PPM messages, which device sends the getCallHistory PPM request, and what is it requesting?

Avaya Aura® System Manager; the call log history from Communication Manager

The SIP endpoint; its call log to be retrieved from Session Manager

The Avaya Aura® Session Manager (SM) server; the call history from System Manager

The SIP endpoint; the contact list to be retireved from Session Manager

Show Answer Comment (0)

Question 55

When a 96xx telephone with SIP firmware boots up, it goes through a number of steps.

These steps include:

Phone Registration 2.Download PPM.

Obtain IP Address and http/https server address from DHCP Server.

Check if firmware upgrade is required and download 46xxsettings.txt file.

Send Subscribe (avaya-cm-feature-status) to Avaya Aura® Communication Manager (CM) via Avaya Aura® Session Manager (SM). What is the correct sequence of these steps?

4, 3, 1, 2, 5 B.3, 4, 1, 5, 2 C. 3,4, 2, 1, 5

3, 5, 1, 2, 4

Show Answer Comment (0)

Question 56

Match the Network Region used for the SIP users with the Domain in SM.

Create Locations in Session Manager.

Create Network Region Groups (NRG) in Communication Manager.

Specify the shared bandwidth limit on the Communication Manager (SIP) Entity screen.

Create a Bandwidth Share Group in SM.

Show Answer Comment (0)

Question 57

Which event packages would you expect to see an AST Endpoint subscribe to?

diag, avaya-cm-feature-status, avaya-ccs-profile, reg and message-summary

avaya-cm-feature-status, entity links, reg and message-summary

avaya-ccs-profile, network status and message-summary dialog

diag, avaya-cm-feature-status, avaya ccs profile and network status

entity links, avaya-cm-feature-status, avaya-ccs-profile and reg

Show Answer Comment (0)

Question 58

An IP (AST) user 1011111 and H.323 User 1011711 share a common Communication Manager (Evolution) server. Given the following actions:

CM will negotiate the codec for the H.323 endpoint based on CM configuration.

Session Manager verifies SIP user 1011111 in the registry and authenticates it. After authenticating the SIP user, Session Manager checks the SIP user’s profile for sequenced applications and routes the request to CommunicationManager.

Communication Manager performs feature processing and terminates the call to the H.323 endpoint. 4. SIP user 1011111 dials H.323 Ext. 1011711 and an INVITE request is sent to Session Manager.If SIP user 1011111 calls H.323 use 1011711, in which order will these actions take place?

4, 2, 1, 3 B.4, 3, 2, 1 C. 4,2, 3, 1

3, 4, 2, 1

Show Answer Comment (0)
