Home / Microsoft / AZ-700

Microsoft AZ-700 Practice Test - Questions Answers, Page 2

Question list

List of questions

Question 11

(0)

DRAG DROP You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements. Which three actions sho

Question 12

(0)

You need to provide connectivity to storage1. The solution must meet the PaaS networking requirements and the business requirements. What should you include in the solution?

Question 13

(0)

You need to provide access to storage2. The solution must meet the PaaS networking requirements and the business requirements. Which connectivity method should you use?

Question 14

(0)

HOTSPOT You need to implement name resolution for the cloud.liwareinc.com. The solution must meet the networking requirements. What should you do? To answer, select the appropriate options in the a

Question 15

(0)

You need to configure GW1 to meet the network security requirements for the P2S VPN users. Which Tunnel type should you select in the Point-to-site configuration settings of GW1?

Question 16

(0)

Your company has a single on-premises datacenter in New York. The East US Azure region has a peering location in New York. The company only has Azure resources in the East US region. You need to im

Question 17

(0)

You are planning an Azure Point-to-Site (P2S) VPN that will use OpenVPN. Users will authenticate by an on-premises Active Directory domain. Which additional service should you deploy to support th

Question 18

(0)

You plan to configure BGP for a Site-to-Site VPN connection between a datacenter and Azure. Which two Azure resources should you configure? Each correct answer presents a part of the solution. (Cho

Question 19

(0)

You fail to establish a Site-to-Site VPN connection between your company’s main office and an Azure virtual network. You need to troubleshoot what prevents you from establishing the IPsec tunnel. W

Question 20

(0)

You have an Azure virtual network and an on-premises datacenter. You are planning a Site-to-Site VPN connection between the datacenter and the virtual network. Which two resources should you inclu

Related questions

HOTSPOT You have an Azure subscription that contains the route tables and routes shown in the following table. The subscription contains the subnets shown in the following table. The subscription contains the virtual machines shown in the following table. There is a Site-to-Site VPN connection to each local network gateway. For each of the following statements, select Yes of the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

HOTSPOT You have art Azure subscription that contains the resources shown in the following table. You need to restrict access to storage1 and sqI1 by using service endpoints. The solution must meet the following requirements: * Allow access from Subnet1 to SQIDB1 * Implement service endpoint policies to restrict access to supported resources. * Allow access from Subnet1 to storage1 and the read-only replica of storage1 in the paired Azure region. What is the minimum number of service endpoints and service endpoint policies you should create? To answer, select the appropriate options m the answer area. NOTE: Each correct selection is worth one point.

You have two Azure App Service instances that host the web apps shown the following table. You deploy an Azure application gateway that has one public frontend IP address and two backend pools. You need to publish all the web apps to the application gateway. Requests must be routed based on the HTTP host headers. What is the minimum number of listeners and routing rules you should configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

HOTSPOT You have an Azure subscription that contains an app named Appl. App1 is hosted on the Azure App Service instances shown in the following table. You need to implement Azure Traffic Manager to meet the following requirements: • App1 traffic must be assigned equally to each App Service instance in each Azure region. • App1 traffic from North Europe must be routed to the Appl instances in the North Europe region. • App1 traffic from North America must be routed to the Appl instances in the East US Azure region.

HOTSPOT You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. You have the NAT gateway shown in the NATgateway1 exhibit, (Click the NATgateway1 tab) You have the virtual machine shown in the VM1 exhibit, (Click the VM1 tab) Subnet1 is configured as shown in the Subnet1 exhibit, (Click the Subnet1 tab) For each of the following statements, select Yes if the statement is true. Otherwise, select No

You have an Azure subscription that contains a user named Admin1 and a resource group named RG1. RG1 contains an Azure Network Watcher instance named NW1. You need to ensure that Admin1 can place a lock on NW1. The solution must use the principle of least privilege. Which role should you assign to Admin1?

HOTSPOT You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. You have the NAT gateway shown in the NATgateway1 exhibit. You have the virtual machine shown in the VM1 exhibit. Subnet1 is configured as shown in the Subnet1 exhibit. For each of the following statements, select Yes of the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

You need to connect Vnet2 and Vnet3. The solution must meet the virtual networking requirements and the business requirements. Which two actions should you include in the solution? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

You need to configure the default route on Vnet2 and Vnet3. The solution must meet the virtual networking requirements. What should you use to configure the default route?

HOTSPOT You need to meet the network security requirements for the NSG flow logs. Which type of resource do you need, and how many instances should you create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

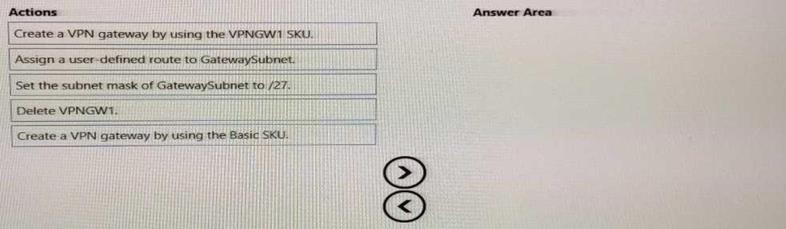

Question 11

DRAG DROP

You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements. Which three actions should you perform in sequence for Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Show Answer Show Case Study Comment (0)

Question 12

You need to provide connectivity to storage1. The solution must meet the PaaS networking requirements and the business requirements.

What should you include in the solution?

a service endpoint

Azure Front Door

a private endpoint

Azure Traffic Manager

Show Answer Show Case Study Comment (0)

Question 13

You need to provide access to storage2. The solution must meet the PaaS networking requirements and the business requirements. Which connectivity method should you use?

a private endpoint

Azure Firewall

Azure Front Door

a service endpoint

Show Answer Show Case Study Comment (0)

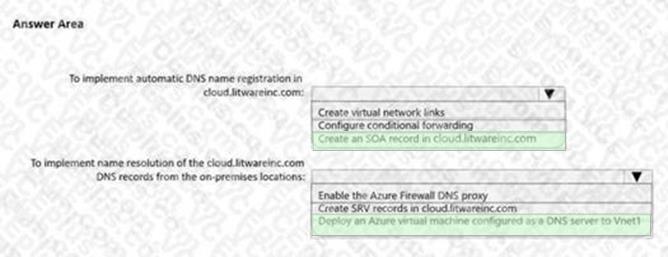

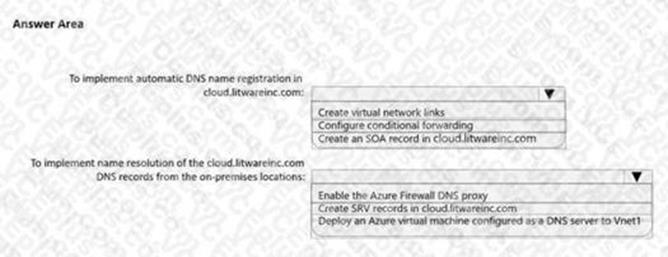

Question 14

HOTSPOT

You need to implement name resolution for the cloud.liwareinc.com. The solution must meet the networking requirements. What should you do? To answer, select the appropriate options in the answer area.

Show Answer Show Case Study Comment (0)

Question 15

You need to configure GW1 to meet the network security requirements for the P2S VPN users.

Which Tunnel type should you select in the Point-to-site configuration settings of GW1?

IKEv2 and OpenVPN (SSL)

IKEv2

IKEv2 and SSTP (SSL)

OpenVPN (SSL)

SSTP (SSL)

Show Answer Comment (0)

Question 16

Your company has a single on-premises datacenter in New York. The East US Azure region has a peering location in New York. The company only has Azure resources in the East US region.

You need to implement ExpressRoute to support up to 1 Gbps. You must use only ExpressRoute Unlimited data plans. The solution must minimize costs. Which type of ExpressRoute circuits should you create?

ExpressRoute Local

ExpressRoute Direct

ExpressRoute Premium

ExpressRoute Standard

Show Answer Comment (0)

Question 17

You are planning an Azure Point-to-Site (P2S) VPN that will use OpenVPN.

Users will authenticate by an on-premises Active Directory domain.

Which additional service should you deploy to support the VPN authentication?

an Azure key vault

a RADIUS server

a certification authority

Azure Active Directory (Azure AD) Application Proxy

Show Answer Comment (0)

Question 18

You plan to configure BGP for a Site-to-Site VPN connection between a datacenter and Azure.

Which two Azure resources should you configure? Each correct answer presents a part of the solution. (Choose two.) NOTE: Each correct selection is worth one point.

a virtual network gateway

Azure Application Gateway

Azure Firewall

a local network gateway

Azure Front Door

Show Answer Comment (0)

Question 19

You fail to establish a Site-to-Site VPN connection between your company’s main office and an Azure virtual network. You need to troubleshoot what prevents you from establishing the IPsec tunnel.

Which diagnostic log should you review?

IKEDiagnosticLog

RouteDiagnosticLog

GatewayDiagnosticLog

TunnelDiagnosticLog

Show Answer Comment (0)

Question 20

You have an Azure virtual network and an on-premises datacenter.

You are planning a Site-to-Site VPN connection between the datacenter and the virtual network.

Which two resources should you include in your plan? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

a user-defined route

a virtual network gateway

Azure Firewall

Azure Web Application Firewall (WAF)

an on-premises data gateway

an Azure application gateway

a local network gateway

Show Answer Comment (0)

Total 236 questions
