Each port-group on the S5200 series switches consists of 4 ports. This grouping allows for efficient management and configuration of the switch ports in sets.

Dell S5200 Series Switches Documentation

Dell Technologies InfoHub

The static route shown in the exhibit S* 12.0.0.0/16 via 192.168.45.254 Vlan45 is used to provide a route to the 12.0.0.0 network. This static route directs traffic destined for the 12.0.0.0/16 network through the gateway at 192.168.45.254, which is associated with VLAN 45. This configuration is typically used to ensure that traffic can reach a specific network via a defined path.

Dell Technologies SONiC Routing Guide

Dell Networking Configuration Guide

The command interface vxlan vtep-stacking followed by map vni 10010 vlan 100 maps the VLAN traffic that an SVLAN identifies to a VNI on a VTEP. In this context, SVLAN (Service VLAN) is being mapped to a VXLAN Network Identifier (VNI) for encapsulation and transport across the VXLAN tunnel.

Dell Technologies SONiC documentation

VXLAN Configuration Guide

When running symmetric Integrated Routing and Bridging (IRB) with two Virtual Forwarding Routers (VFRs), BGP must be configured twice. Each VFR will have its own BGP instance to handle the routing information.

Dell Technologies SONiC Routing Guide

Dell Networking Configuration Guide

Ingress VTEP performs a route lookup that is based on the destination IP address.

Ingress VTEP encapsulates the packet with VXLAN and sends it on the appropriate VNI segment.

Egress VTEP determines that the host is local to the VNI and switches the packet.

Egress VTEP bridges the packet after decapsulation.

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to understand the correct order of operations in asymmetric IRB (Integrated Routing and Bridging) frame encapsulation within a VXLAN environment.

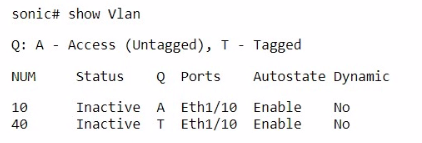

The show vlan command displays all configured VLANs on the device, including their status, ports, and other relevant details. It does not limit the display to only active VLANs or all possible VLANs but shows those that are currently configured.

Dell Technologies SONiC Command Reference Guide

Dell Networking Configuration Guide

The no vrrp 100 address-family ipv6 command deletes the VRRP (Virtual Router Redundancy Protocol) identifier (A) and the address-family configuration (D) for VRRP group 100. This effectively removes the VRRP configuration for the specified address family.

Dell Technologies SONiC documentation

VRRP Configuration Guide

The local timers in the BFD (Bidirectional Forwarding Detection) configuration show a detect multiplier of 4 and a receive interval of 300ms. The time taken to detect remote failures is calculated as detect multiplier receive interval = 4 300ms = 1200ms.

Dell Technologies SONiC documentation

BFD Configuration Guide

When RDMA over Converged Ethernet (RoCE) is enabled, Enhanced Transmission Selection (ETS) and Priority Flow Control (PFC) are two key elements that need to be configured. ETS allows for bandwidth allocation among different traffic classes, and PFC provides lossless Ethernet operation for specific traffic classes to support low-latency, high-performance network communication.

Dell Technologies SONiC documentation

RDMA over Converged Ethernet Configuration Guide
