Question 371

(0)

Which of the following elements together uniquely identify a LSA? (Choose three.)

Question 372

(0)

The address space 172.28.100.0/24 is currently used. If the subnet mask 172.28.100.0/30 is used to divide this address space into several subnets serving WAN links, how many subnets in total can the

Question 373

(0)

An OSPF neighbor relationship fails to be established and the display ospf error command output is as follows. Which of the following is the possible cause?

Question 374

(0)

OSPF supports two authentication modes: area authentication and interface authentication. The two authentication modes cannot be configured at the same time.

Question 375

(0)

A Router ID is optional in the OSPF configuration.

Question 376

(0)

Which statement about OSPF is false?

Question 377

(0)

A device can be assigned an IP address 192.168.13.175, with the mask being 255.255.255.240.

Question 378

(0)

Which of the following statements about OSPF authentication are false? (Choose two.)

Question 379

(0)

Which of the following rules should a network administrator obey when the network administrator uses the VLSM technology to plan subnets? (Choose three.)

Question 380

(0)

For network segment 192.168.2.16/28, how many hosts it can hold at most?

Question 371

Which of the following elements together uniquely identify a LSA? (Choose three.)

LS type

Link state ID

Advertising Router

LS Sequence number

Show Answer Comment (0)

The address space 172.28.100.0/24 is currently used. If the subnet mask 172.28.100.0/30 is used to divide this address space into several subnets serving WAN links, how many subnets in total can the address space be divided into?

126

254

Show Answer Comment (0)

Question 373

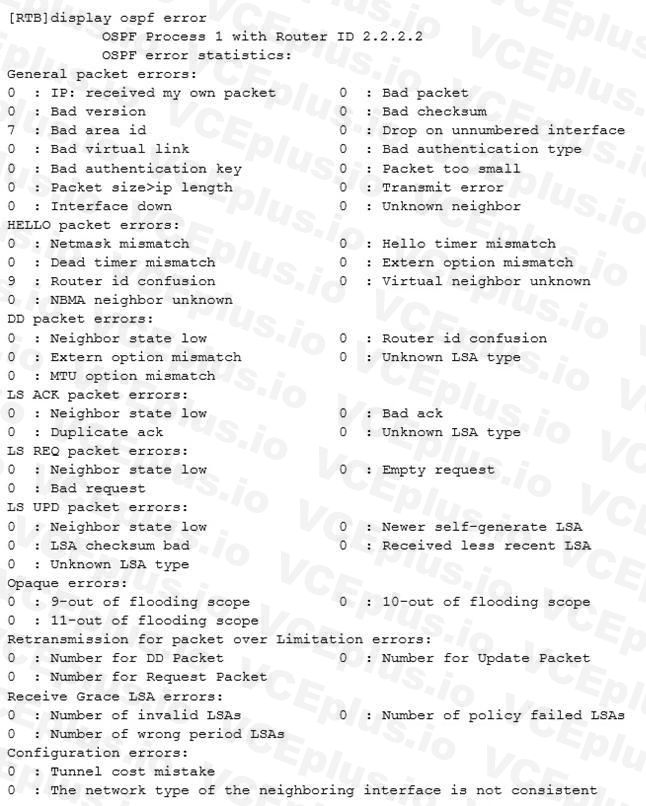

An OSPF neighbor relationship fails to be established and the display ospf error command output is as follows.

Which of the following is the possible cause?

Router IDs conflict.

Area IDs are mismatched.

Network masks are inconsistent.

Authentication types are inconsistent.

Show Answer Comment (0)

Question 374

OSPF supports two authentication modes: area authentication and interface authentication. The two authentication modes cannot be configured at the same time.

True

False

Show Answer Comment (0)

Question 375

A Router ID is optional in the OSPF configuration.

True

False

Show Answer Comment (0)

Question 376

Which statement about OSPF is false?

Hello packets are used to discover and maintain neighbor relationships. On a broadcast network or an NBMA network, Hello packets can also be used to elect a DR and a BDR.

DD packets describe summary LSDB information by carrying LSA headers.

The intervals at which two routers send Hello packets must be consistent; otherwise, a neighbor relationship cannot be established between them.

DD packets contain headers of all LSAs for periodic LSDB synchronization between OSPF neighbors.

Show Answer Comment (0)

Question 377

A device can be assigned an IP address 192.168.13.175, with the mask being 255.255.255.240.

True

False

Show Answer Comment (0)

Question 378

Which of the following statements about OSPF authentication are false? (Choose two.)

Entering a password in cipher text is allowed.

The ospf authentication-mode md5 1 huawei command and the ospf authentication-mode md5 1 plain huawei command have the same function.

If passwords are configured for both an area and an interface, the password configured for the area is used.

The ospf authentication-mode simple huawei command and the ospf authentication-mode simple plain Huawei command have the same function.

Show Answer Comment (0)

Question 379

Which of the following rules should a network administrator obey when the network administrator uses the VLSM technology to plan subnets? (Choose three.)

A subnet is composed of all summarized routes.

A subnet can address a host or be further subnetted.

The Update message of a routing protocol in use must carry subnet mask information.

The summarized networks must have the same high-order bit.

Show Answer Comment (0)
