Is this correct positioning of AtubaOS-CX switches in the data center?

Solution: Aruba CX 8325 switches are an appropriate choice for leaf switches in a leaf-spine topology that uses Virtual Extensible LAN (VXLAN) with Ethernet VPN (EVPN).

Is this correct positioning of AtubaOS-CX switches in the data center?

Solution: Aruba CX 6300 switches are an appropriate choice for leaf switches in a leaf-spine topology that uses Virtual Extensible LAN (VXLAN) with Ethernet VPN (EVPN).

Refer to the exhibit.

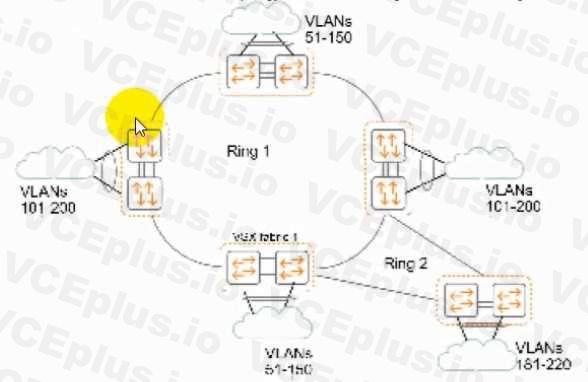

which shows the topology tot an Ethernet Ring Protection Switching (ERPS) solution.

Is this a valid design for the control and protected VLANs on the VSX fabric 1 switches?

Solution: Ring 1, instance 1:

control VLAN: 1000protected VLANs: 51-135 Ring l,Instance2:

control VLAN: 1001 protected VLANs: 136-220 Ring 2, Instance 1: control VLAN: 1000 protected

VLANs: 181 -200 Ring 2, Instance 2: control VLAN: 1003 protected VLANs: 201 -220

Refer to the exhibit.

which shows the topology tot an Ethernet Ring Protection Switching (ERPS) solution.

Is this a valid design for the control and protected VLANs on the VSX fabric 1 switches?

Solution: Ring l, instance 1:

control VLAN: 1000 protected VLANs: 51-135 Ring 1, Instance 2:

control VLAN: 1000 protected VLANs: 136-220 Ring 2, Instance 1: control VLAN: 1001 protected

VLANs: 181 -200 Ring 2, Instance 2: control VLAN: 1001 protected VLANs: 201 -220

You enter this command on an ArubaOS-CX switch:

Switch# show erps status ring 1

Is this what the specified status means?

Solution: The status is Protection, which means that the ring is up and fully connected with the RPL port blocked.

You enter this command on an ArubaOS-CX switch:

Switch# show erps status ring 1

Is this what the specified status means?

Solution: The status is Idle, which means that the ring is up and fully connected with the RPL port blocked.

The architect designs a spine and leaf network for a single data center that will use multiple leaf switches as Virtual Tunnel End Points (VTEP). The architect needs to select the type of Integrated Routing & Bridging (IRB) for the solution.

Is this statement about the IRB type true?

Solution: In the Asymmetric IRB egress VTEPs bridge the traffic to the destination networks.

The architect designs a spine and leaf network for a single data center that will use multiple leaf switches as Virtual Tunnel End Points (VTEP). The architect needs to select the type of Integrated Routing & Bridging (IRB) for the solution.

Is this statement about the IRB type true?

Solution: Asymmetric IRB requires a third L3 VNI to route packets between ingress and egress VTEPs.

Two ArubaOS-CX switches ate part of a Virtual Switching Extension (V5X) fabric. Is this a guideline for configuring the switches' link-up delay settings?

Solution: Set the link-up delay timer based on the number of MAC forwarding, ARP, and routing table entries.
