To configure user-based tunneling (UBT) on an AOS-CX switch, you need to specify the IP addresses of the mobility gateways that will receive the tunneled traffic from the switch 1. The primary controller is the preferred gateway for the switch to establish a tunnel, and the backup controller is the alternative gateway in case the primary controller fails or becomes unreachable 1. The IP addresses of the gateways should be their system IP addresses, which are used for inter-controller communication and cluster discovery 2.

In this scenario, the customer has a gateway cluster with two gateways, each with a system IP address on VLAN 4085. Therefore, the switch should use these system IP addresses as the primary and backup controllers for UBT. The IP addresses of the gateways on VLAN 20 and VLAN 4094 are not relevant for UBT, as they are used for user traffic and WAN connectivity, respectively 2. The VRRP IP address on VLAN 20 is also not applicable for UBT, as it is a virtual IP address that is not associated with any specific gateway 3.

Therefore, the best option is to use 10.20.4.21 as the primary controller and 10.20.4.22 as the backup controller for UBT on the switch. This will ensure high availability and cluster discovery for the tunneled traffic from the switch to the gateway cluster 12.

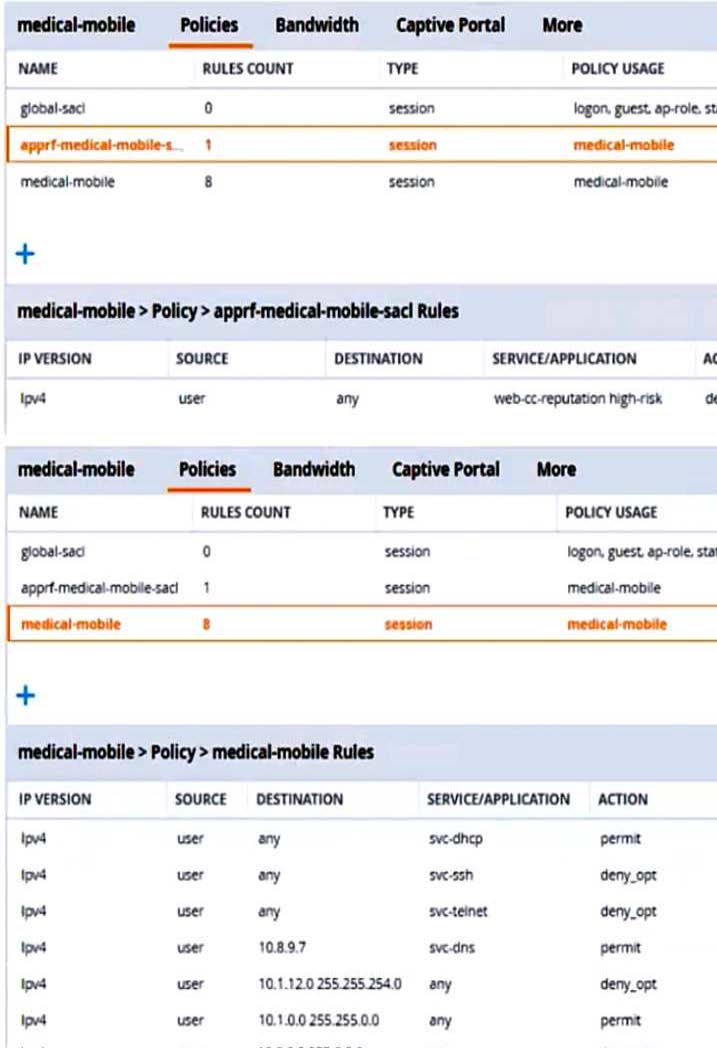

The subnet mask in rule 3 of the "medical-mobile" policy is currently 255.255.252.0, which means that the rule denies access to the 10.1.12.0/22 subnet as well as the adjacent 10.1.16.0/22 subnet 1.

This is not consistent with the scenario requirements, which state that only the 10.1.12.0/22 subnet should be denied access, while the rest of the 10.1.0.0/16 range should be permitted access.

To fix this issue, the subnet mask in rule 3 should be changed to 255.255.248.0, which means that the rule only denies access to the 10.1.8.0/21 subnet, which includes the 10.1.12.0/22 subnet 1. This way, the rule matches the scenario requirements more precisely.

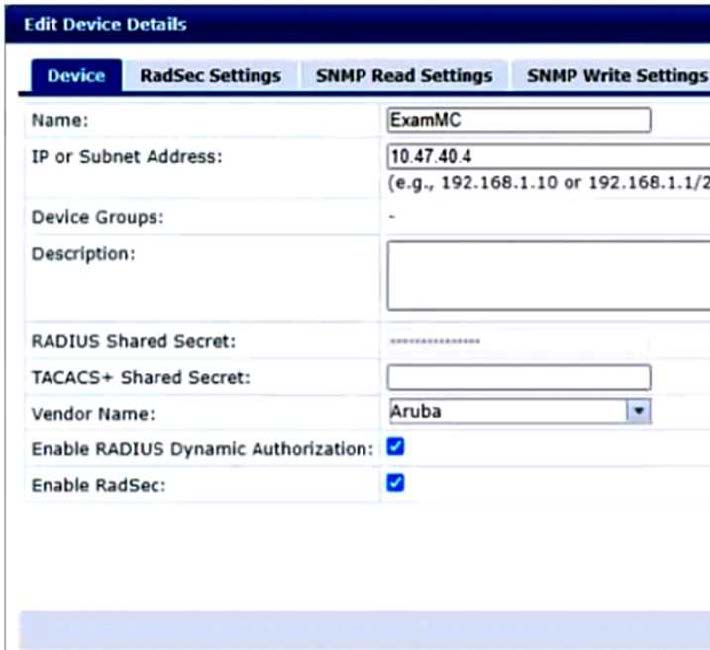

Dynamic authorization is a feature that allows CPPM to send change of authorization (CoA) or disconnect messages to the MC to modify or terminate a user session based on certain conditions or events 1. Dynamic authorization uses the RFC 3576 protocol, which is an extension of the RADIUS protocol 2.

To enable dynamic authorization on the MC, you need to configure the IP address and UDP port of the CPPM server as the RFC 3576 server on the MC 3. The default UDP port for RFC 3576 is 3799, but it can be changed on the CPPM server . The MC and CPPM must use the same UDP port for dynamic authorization to work properly 3.

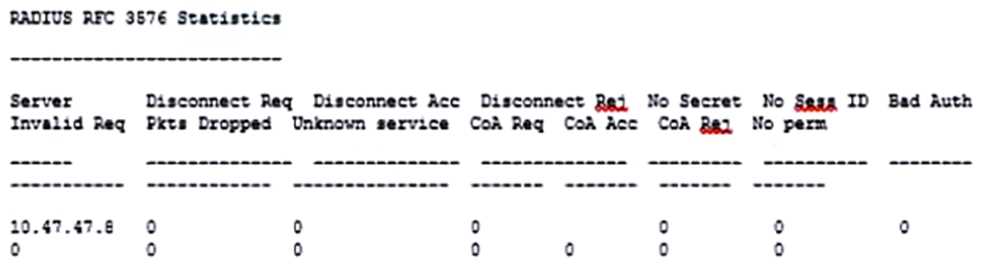

In this scenario, the MC is configured with the IP address of the CPPM server (10.47.47.8) as the RFC 3576 server, but it is using the default UDP port of 3799. However, according to the exhibit, the CPPM server is using a different UDP port of 1700 for dynamic authorization . This mismatch causes the CoA requests from CPPM to fail on the MC, as shown by the statistics .

To fix this issue, you need to change the UDP port in the MCs' RFC 3576 server config to match the UDP port used by CPPM, which is 1700 in this case. Alternatively, you can change the UDP port in CPPM to match the default UDP port of 3799 on the MC. Either way, you need to ensure that both devices use the same UDP port for dynamic authorization 3 .

AppRF and WebCC are features that allow the MCs to classify and control application traffic and web content based on predefined or custom categories 12. These features are required to meet the scenario requirements of denying access to all high-risk websites and denying access to the WLAN for a period of time if they send any SSH or Telnet traffic.

To enable AppRF and WebCC, you need to check the following settings:

On the global level, you need to enable AppRF and WebCC under Configuration > Services >

AppRF and Configuration > Services > WebCC, respectively 12.

On the role level, you need to enable AppRF and WebCC under Configuration > Security > Access Control > Roles > medical-mobile > AppRF and Configuration > Security > Access Control > Roles > medical-mobile > WebCC, respectively 12.

You also need to make sure that the MCs have valid licenses for AppRF and WebCC, which are included in the ArubaOS PEFNG license 3.

The correct answer is B. Create a new VLAN on the AOS-CX switch and configure that VLAN as the UBT client VLAN.

User-based tunneling (UBT) is a feature that allows the AOS-CX switches to tunnel the traffic from wired clients to a mobility gateway cluster, where they can be assigned a role and a VLAN based on their authentication and authorization 1. To enable UBT, the switches need to have a UBT zone configured with the IP addresses of the gateways, and a UBT client VLAN configured with the ubtclient-vlan command 2.

The UBT client VLAN is a special VLAN that is used to encapsulate the traffic from the tunneled clients before sending it to the gateways. The UBT client VLAN must be different from any other VLANs used on the switch or the network, and it must not be assigned to any ports or interfaces on the switch 2.

The UBT client VLAN is only used internally by the switch for UBT, and it is not visible to the clients or the gateways.

In this scenario, the customer wants to tunnel the clients that pass user authentication to the gateway cluster, where they will be assigned to VLAN 20. Therefore, the switch must have a UBT client VLAN configured that is different from VLAN 20 or any other VLANs on the network. For example, the switch can use VLAN 4000 as the UBT client VLAN, as shown in one of the web search results 3. The switch must also have a UBT zone configured with the system IP addresses of the gateways as the primary and backup controllers, as explained in question 3.

The other options are not correct or relevant for this issue:

Option A is not correct because assigning VLAN 20 as the access VLAN on any edge ports to which tunneled clients might connect would conflict with UBT. The access VLAN is the VLAN that is assigned to untagged traffic on a port, and it is used for local switching on the switch 4. If VLAN 20 is assigned as the access VLAN, then the traffic from the clients will not be tunneled to the gateways, but rather switched locally on VLAN 20. This would defeat the purpose of UBT and cause inconsistency in role and VLAN assignment.

Option C is not correct because VIA licenses are not required for UBT. VIA licenses are required for enabling VPN services on Aruba Mobility Controllers for remote access clients using Aruba Virtual Intranet Access (VIA) software . VIA licenses are not related to UBT or wired clients.

Option D is not correct because changing the port-access auth-mode mode to client-mode on any edge ports to which tunneled clients might connect would not affect UBT. The port-access auth-mode mode determines how a port handles authentication requests from multiple clients connected to a single port . Client-mode is the default mode that allows only one client per port, while multi-clientmode allows multiple clients per port. The port-access auth-mode mode does not affect how UBT works or how traffic is tunneled from a port.

The correct answer is D. Enabling alerts and email notifications for events related to gateway IPS engine utilization and errors.

Gateway IDS/IPS is a feature that allows the Aruba gateways to monitor and block malicious or unwanted traffic based on predefined or custom rules 1. The Fail Strategy is a setting that determines how the gateways handle traffic when the IPS engine fails or crashes 2. The Block option means that the gateways will stop forwarding traffic until the IPS engine recovers, while the Bypass option means that the gateways will continue forwarding traffic without inspection 2.

The Block option provides more security, but it also increases the risk of network outages if the IPS engine fails frequently or for a long time 2. To minimize this risk, it is recommended to enable alerts and email notifications for events related to gateway IPS engine utilization and errors 3. This way, the network administrators can be informed of any issues with the IPS engine and take appropriate actions to restore or troubleshoot it 3.

The other options are not correct or relevant for this issue:

Option A is not correct because configuring a relatively high threshold for the gateway threat count alerts would not help minimize unexpected outages caused by using the Block option. The gateway threat count alerts are used to notify the network administrators of the number of threats detected by the IPS engine, but they do not affect how the gateways handle traffic when the IPS engine fails 4.

Option B is not correct because making sure that the gateways have formed a cluster and operate in default gateway mode would not help minimize unexpected outages caused by using the Block option. The gateway cluster mode is used to provide high availability and load balancing for the gateways, but it does not affect how the gateways handle traffic when the IPS engine fails . The default gateway mode is used to enable routing and NAT functions on the gateways, but it does not affect how the gateways handle traffic when the IPS engine fails .

Option C is not correct because setting the IDS or IPS policy to the least restrictive option, Lenient, would not help minimize unexpected outages caused by using the Block option. The IDS or IPS policy is used to define what rules are applied by the IPS engine to inspect and block traffic, but it does not affect how the gateways handle traffic when the IPS engine fails 2. The Lenient option contains fewer and older rules than the Moderate or Strict options, which means that it provides less security and more false negatives .

Alert duration and threshold settings are used to control how often and under what conditions email notifications are sent for gateway IDS/IPS events 1. By adjusting these settings, the customer can reduce the frequency of repeat email notifications for the same threat, while still being informed of any critical or new threats.

To adjust the alert duration and threshold settings in Aruba Central, the customer can follow these steps 1:

In the Aruba Central app, set the filter to Global, a group, or a device.

Under Analyze, click Alerts & Events.

Click the Config icon to open the Alert Severities & Notifications page.

Select the Gateway IDS/IPS tab to view the alert categories and severities for gateway IDS/IPS events.

Click on an alert category to expand it and view the alert duration and threshold settings for each severity level.

Enter a value in minutes for the alert duration. This is the time period during which the alert is active and email notifications are sent.

Enter a value for the alert threshold. This is the number of times the alert must be triggered within the alert duration before an email notification is sent.

Click Save.

By increasing the alert duration and/or threshold values, the customer can reduce the number of email notifications for recurring threats, as they will only be sent when the threshold is reached within the duration. For example, if the customer sets the alert duration to 60 minutes and the alert threshold to 10 for a Critical severity level, then an email notification will only be sent if the same threat occurs 10 times or more within an hour.

An authentication source is a configuration element in CPPM that defines how to connect to an external identity provider and retrieve user or device information . CPPM supports various types of authentication sources, such as Active Directory, LDAP, SQL, Kerberos, and HTTP .

To authenticate wireless and wired clients to Azure AD, you need to set up an authentication source as HTTP type, referencing Azure AD's FQDN . This type of authentication source allows CPPM to use REST API calls to communicate with Azure AD and validate the user or device credentials . You also need to configure the OAuth 2.0 settings for the authentication source, such as the client ID, client secret, token URL, and resource URL .

To use information collected by Intune to make access control decisions, you need to set up another authentication source as HTTP type, referencing the Intune extension . This type of authentication source allows CPPM to use REST API calls to communicate with Intune and retrieve the device compliance status . You also need to configure the OAuth 2.0 settings for the authentication source, such as the client ID, client secret, token URL, and resource URL .

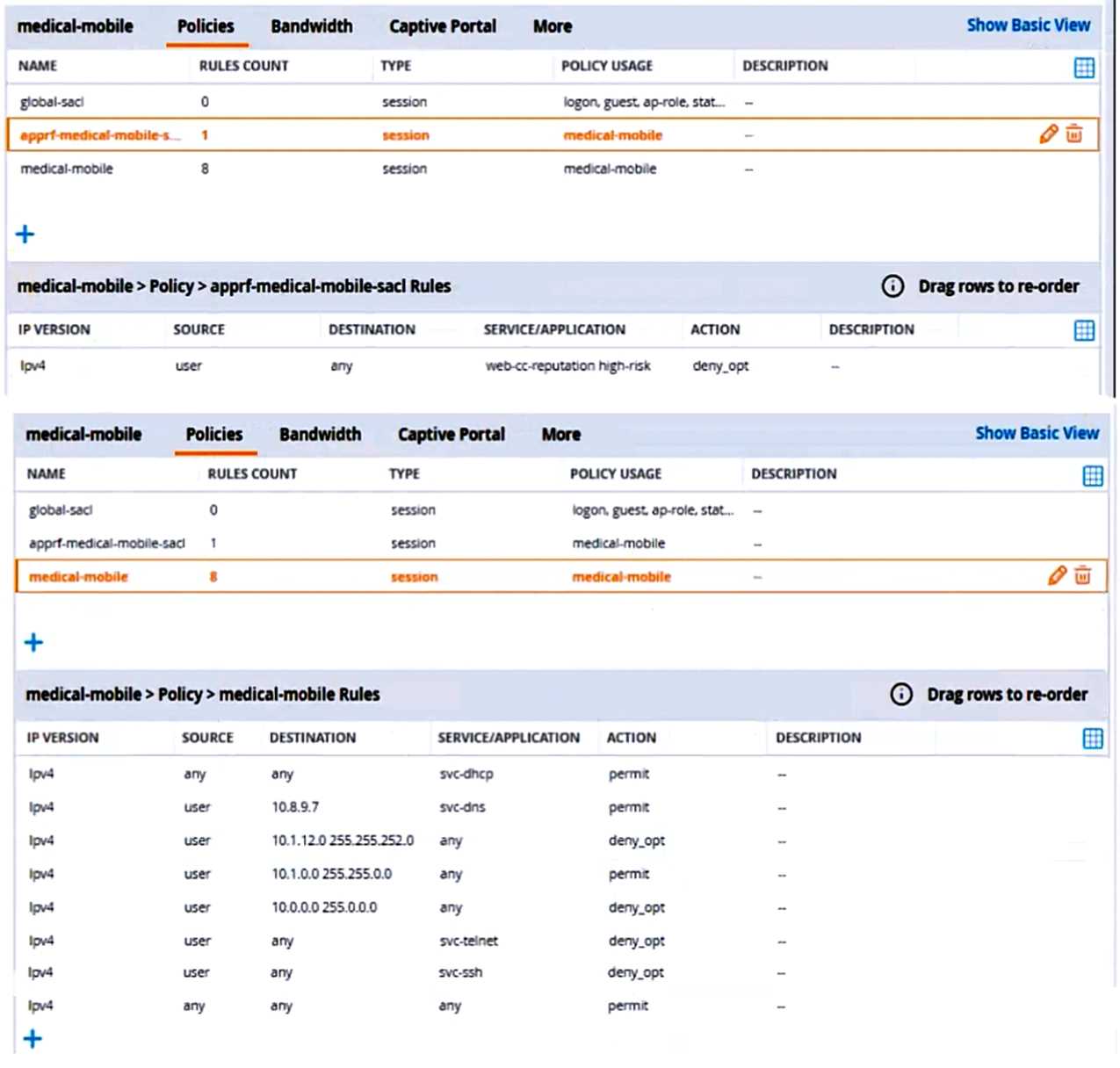

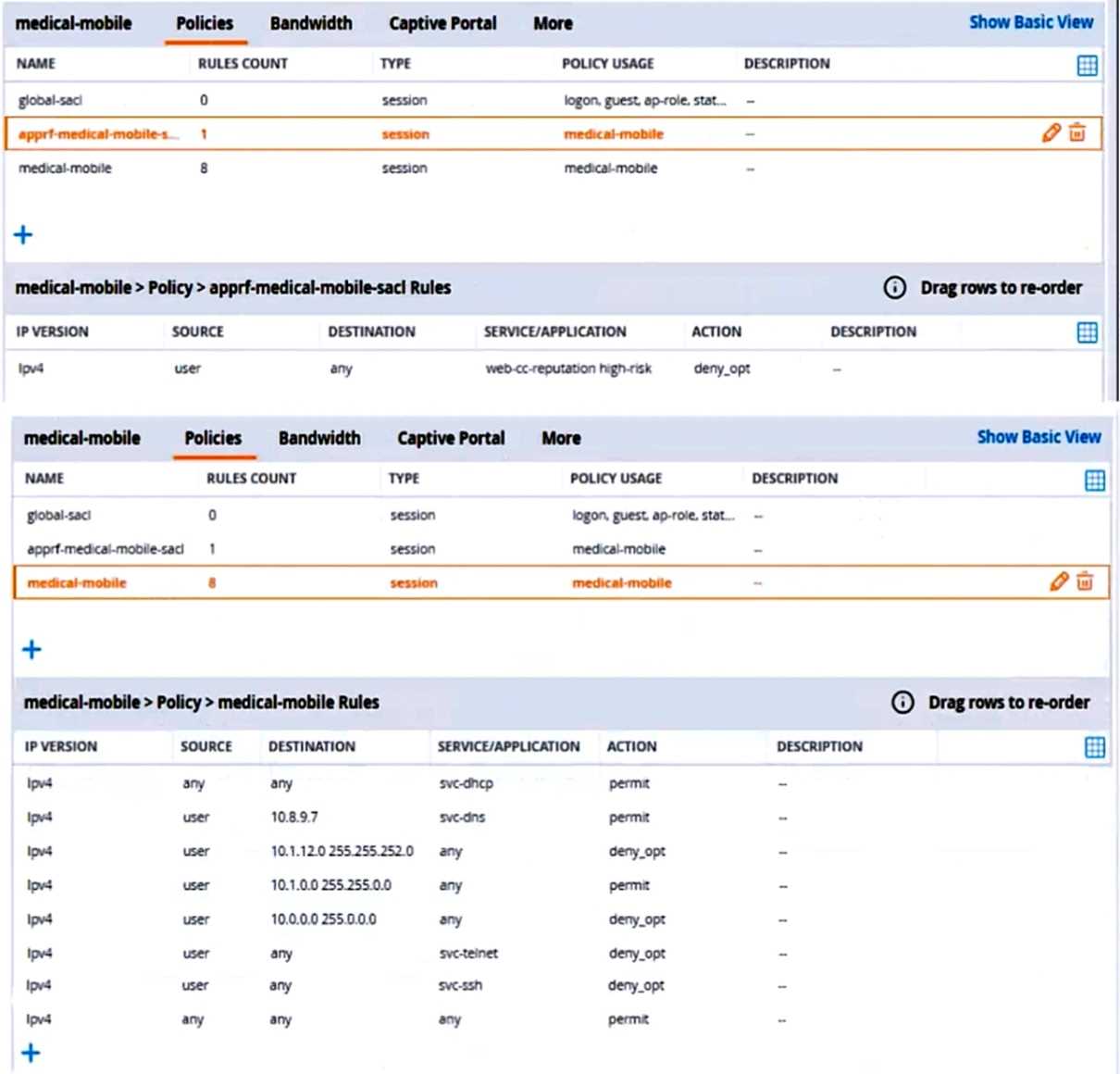

Rules 6 and 7 in the "medical-mobile" policy are used to deny access to the WLAN for a period of time if the clients send any SSH or Telnet traffic, as required by the scenario. However, these rules are currently placed below rule 5, which permits access to the Internet for any traffic. This means that rule 5 will override rules 6 and 7, and the clients will not be denied access to the WLAN even if they send SSH or Telnet traffic.

To fix this issue, rules 6 and 7 should be moved to the top of the list, before rule 5. This way, rules 6 and 7 will take precedence over rule 5, and the clients will be denied access to the WLAN if they send SSH or Telnet traffic, as expected.
