In the scenario described, the most significant issue with the core switch selection, according to Aruba Campus Access learning resources, is answer A: 'The core switch will not support the 25GbE downlinks to the distribution switches.' This is a critical consideration because the bandwidth capabilities between the core and distribution layers significantly impact the overall network performance and scalability. If the core switch cannot support 25GbE downlinks, it may create a bottleneck, preventing the distribution switches from operating at their full capacity and affecting the performance of connected devices and applications. Ensuring the core switch has the necessary port speeds and densities to support the intended design and traffic patterns is crucial in network design, as emphasized in Aruba's documentation on campus network architectures.

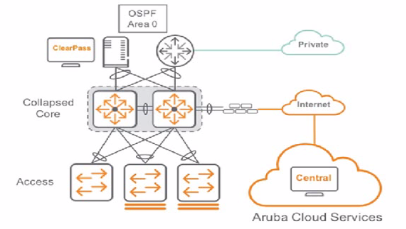

In a 3-tier network design consisting of core, aggregation, and access layers, the implementation of Virtual Switching Extension (VSX) at the core is considered a best practice when the aggregation layer functions primarily at Layer 3 with routing protocols like OSPF facilitating traffic forwarding between the core and aggregation layers. This design choice, as verified by Aruba Campus Access documents, leverages the high availability and redundancy features of VSX technology while maintaining efficient and scalable routing at the aggregation layer. Implementing VSX at the core in such a scenario ensures seamless failover and redundancy, minimizing the risk of downtime and ensuring consistent performance across the network. The core layer, equipped with VSX, provides a robust and resilient backbone for the network, facilitating efficient traffic management and routing decisions, which is critical for large-scale enterprise networks.

When designing a network and considering new Intermediate Distribution Frame/Main Distribution Frame (IDF/MDF) deployments, it's essential to gather information from various stakeholders to ensure the design meets all operational and organizational requirements. According to Aruba Campus Access learning resources, the Help Desk Manager and Network Operations Manager are crucial stakeholders in this process. The Help Desk Manager provides insights into common issues, user complaints, and service requests, which can influence network design decisions to improve user experience and operational efficiency. The Network Operations Manager, on the other hand, offers a technical perspective on network management, maintenance requirements, and operational challenges. Engaging with these stakeholders ensures that the network design is aligned with both user needs and technical operational standards, contributing to a more resilient, efficient, and user-friendly network infrastructure.

For a global cruise line company looking to refresh its fleet with a focus on sustainability and cost-effectiveness, while not changing its current security requirements, the most suitable option would be to standardize on Aruba 6300 switches for the access layer. The Aruba 6300 switches offer advanced security features and scalability, which is crucial for the dynamic and demanding environment of a cruise ship. Additionally, implementing a cluster of 9240 Gateways and central overlay networks based on User-Based Tunneling (UBT) will enhance the security of the wired network infrastructure. This approach aligns with the Aruba ESP (Edge Services Platform) architecture, providing a unified infrastructure that integrates security, AI-powered operations, and cloud-native agility. The central overlay networks will enable the cruise line to segment network traffic, apply consistent policies, and provide secure access across the fleet, meeting the increased security demands without compromising on performance or sustainability.

To demonstrate a solution to a customer, three platforms that can be effectively used are the Aruba CX Switch Simulator (Option B), Aruba Innovation Zone (Option C), and Aruba Demo Experience Platform (Option F). The Aruba CX Switch Simulator provides a virtual environment where customers can interact with the Aruba OS-CX interface, allowing them to explore features and configurations without the need for physical hardware. The Aruba Innovation Zone offers a space for experiencing the latest Aruba technologies and solutions in action, showcasing their capabilities in real-world scenarios. The Aruba Demo Experience Platform is designed to give customers a comprehensive look at Aruba's solutions, enabling interactive demos and simulations that highlight the benefits and functionalities of the products. These platforms provide valuable resources for customers to understand and evaluate Aruba solutions in a controlled and informative environment.

In the context of Aruba Central licensing for gateways, it is true that SD-WAN Gateway functionality requires a specific security licensing (Option B), which is essential for enabling advanced security features and capabilities in an SD-WAN deployment. This includes functionalities like firewall, threat management, and secure VPN connections. Additionally, Aruba SD-Branch Gateway licenses allow for the use of standard WLAN Gateway features within a campus environment (Option C). This means that with an SD-Branch Gateway license, the gateway can handle traditional WLAN management and security tasks, in addition to its SD-WAN capabilities, providing a unified solution for both branch and campus deployments.

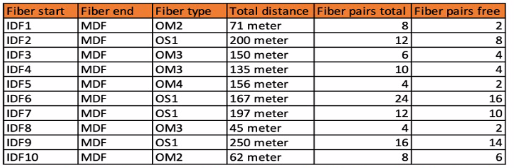

Option B is the most cost-effective solution, as it does not include long-range optics, which are unnecessary given the distances and fiber types specified. The 10GbE-SR optics are suitable for short-range connections up to 300 meters over OM3 fiber and would cover the needs of the longest fiber run mentioned, which is 250 meters. The 10GbE-LRM optics, while capable of reaching up to 220 meters over OM2 fiber, would not be necessary as the longest OM2 run is 71 meters, which is within the range of standard 10GbE-SR optics. Thus, Option B provides the required connectivity without incurring additional costs for long-range optics that are not needed given the fiber infrastructure of HQ2.

Based on the requirements provided by 'Don't Buy at Us,' the updated design needs to accommodate 25GbE uplinks and a minimum of 7 stacks of 48-port Aruba switches for the EMEA-DISTR. Option C is the most suitable based on best practices, as it proposes:

A core configuration consisting of two Aruba 8360-12C in VSX for the collapsed core with ISL of 2x100GbE DAC, which will provide robust core networking with high-speed interconnects, suitable for the demands of a regional distribution center and headquarters.

Aggregation with two stacks, each with 2 Aruba 8360-12C in VSX (ISL 2x100GbE DAC), accommodating the uplink capacity requirements.

Access stacks with a total of 17 stacks of Aruba 6300F 48-port 1GbE Class 4 PoE with 4-port SFP56 (each stack has 4 members, VSF with 50GbE VSF links, 2 x 25GbE uplinks per stack), which exceeds the minimum requirement of 7 stacks and provides the necessary uplink bandwidth.

This configuration supports the 25GbE uplink speeds, satisfies the required number of switch stacks for the EMEA distribution center, and is compatible with the existing 25GbE-certified fiber infrastructure at HQ2 and EMEA-DISTR.

The primary differences between OM4 and OM5 cabling include their support for transmission distances and the type of multimode fiber. OM4 fiber supports distances up to 100 meters when using 100 Gbps transceivers (Option A), which is suitable for most data center and enterprise networking applications. OM5, also known as Wide Band Multimode Fiber (WBMMF) (Option C), extends this capability by supporting higher wavelengths in the 850 to 950 nm range, allowing for more efficient multiplexing and potentially longer distances or higher bandwidths under certain conditions. This makes OM5 a more versatile and future-proof option for organizations looking to deploy advanced technologies like shortwave division multiplexing.
