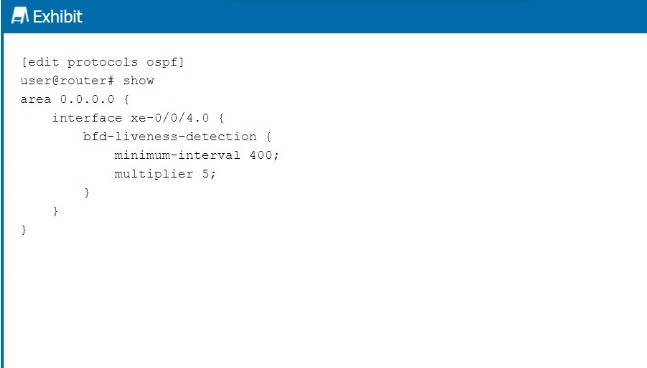

The exhibit shows the configuration of Bidirectional Forwarding Detection (BFD) for OSPF on interface xe-0/0/4.0, with the following parameters:

minimum-interval: 400 milliseconds

multiplier: 5

Step-by-Step Breakdown:

BFD Liveness Detection:

BFD is used to detect link failures at sub-second intervals, providing faster convergence times for routing protocols like OSPF. The minimum-interval is the time between BFD control packets (in milliseconds), and the multiplier indicates how many missed BFD packets trigger a failure.

Calculating Failure Detection Time:

The failure detection interval is calculated as:

FailureInterval=minimum-intervalmultiplier\text{Failure Interval} = \text{minimum-interval} \times \text{multiplier}FailureInterval=minimum-intervalmultiplier

In this case:

400milliseconds5=2000milliseconds(2seconds)400 \, \text{milliseconds} \times 5 = 2000 \, \text{milliseconds} (2 seconds)400milliseconds5=2000milliseconds(2seconds)

Conclusion:

If no BFD control packets are received within 2000 milliseconds (2 seconds), the interface will be considered down, triggering OSPF to recalculate routes.

Juniper

Reference:

BFD Configuration: BFD parameters such as minimum-interval and multiplier are used to fine-tune the failure detection time for faster convergence.

In Junos OS, the qualified-next-hop feature is used to specify an alternate next hop for a static route, along with a unique preference value.

Step-by-Step Breakdown:

Qualified-Next-Hop:

A qualified-next-hop allows you to define multiple next hops for a static route, each with its own preference. This provides flexibility by allowing the router to choose the best available next hop based on reachability and preference.

Use Case:

If the primary next hop becomes unreachable, the router can automatically switch to the alternate next hop defined by the qualified-next-hop with a higher preference value.

Command Example:

set routing-options static route 10.10.10.0/24 qualified-next-hop 192.168.1.1 preference 5

set routing-options static route 10.10.10.0/24 qualified-next-hop 192.168.1.2 preference 10

Preference:

The next hop with the lowest preference is chosen first. If it becomes unavailable, the router will use the higher preference next hop.

Juniper

Reference:

Qualified-Next-Hop: This feature is used to configure backup or alternate next hops for static routes in Juniper devices.

In the exhibit, BGP is configured with local AS 65101 and a neighbor at 172.16.1.1 in peer AS 65201. This setup involves two different Autonomous Systems (AS), indicating an External BGP (EBGP) configuration.

Step-by-Step Breakdown:

EBGP vs. IBGP:

EBGP is used between routers in different ASes. In this case, the local AS is 65101 and the peer AS is 65201, meaning the BGP session is EBGP.

IBGP is used between routers within the same AS, which is not applicable here as the AS numbers are different.

BGP Group Configuration:

The configuration does not require a type external parameter because Junos OS automatically recognizes the session as EBGP when the local and peer AS numbers are different.

The BGP session will operate as EBGP, and the configuration will commit successfully.

Juniper

Reference:

BGP Configuration: In Juniper, EBGP is automatically recognized when the local and peer AS numbers differ, without needing to specify type external.

In OSPF (Open Shortest Path First), areas are used to segment a network into smaller, more manageable pieces to improve scalability. By dividing a network into areas, OSPF can reduce the size of the link-state database (LSDB), which helps routers process updates more efficiently.

Step-by-Step Breakdown:

Purpose of OSPF Areas:

OSPF areas allow for hierarchical routing within the OSPF domain. Routers in the same area have identical LSDBs, but routers in different areas do not exchange full link-state information. Instead, they exchange summarized routes, which reduces the LSDB size and CPU/memory usage.

Benefits:

Reducing the LSDB size improves scalability and ensures faster convergence in larger networks. Area 0 is the backbone area, and all other areas must connect to it, forming a hierarchical structure.

Juniper

Reference:

OSPF Configuration: Areas in OSPF are configured to optimize network performance by limiting the scope of link-state advertisements (LSAs) to within an area.

IP fabrics are Layer 3-centric network designs often used in data centers due to their scalability, efficient routing, and loop-free architecture.

Step-by-Step Breakdown:

Layer 3 Load Balancing:

IP fabrics use Equal-Cost Multipath (ECMP) to distribute traffic across multiple paths, providing effective load balancing and improving bandwidth utilization. This capability is absent in traditional Layer 2 networks, which do not support ECMP for routing decisions.

Layer 2 Loops:

Layer 2 networks are prone to loops because of the lack of TTL (Time-to-Live) mechanisms. Spanning Tree Protocol (STP) is required to prevent loops, but it can introduce inefficiencies by blocking links. In contrast, IP fabrics based on Layer 3 protocols are loop-free and do not need STP.

Juniper

Reference:

IP Fabric: Juniper's IP fabric solutions offer efficient Layer 3 routing with built-in load balancing and loop prevention, making them ideal for modern data center architectures.

EVPN-VXLAN is an overlay technology used in data center networks to extend Layer 2 services over a Layer 3 network.

Step-by-Step Breakdown:

BGP Control Plane:

BGP (Border Gateway Protocol) is used as the control plane for EVPN-VXLAN. BGP advertises MAC addresses and IP address reachability information across the VXLAN network, enabling efficient multi-tenant Layer 2 connectivity over a Layer 3 infrastructure.

Encapsulation:

VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames into Layer 3 packets. This encapsulation allows Layer 2 traffic to be transported across a Layer 3 network, effectively creating a tunnel for Ethernet frames.

Juniper

Reference:

EVPN-VXLAN Configuration: Juniper supports EVPN-VXLAN with BGP as the control plane, allowing scalable Layer 2 connectivity over a routed infrastructure in modern data centers.

A generated route in Junos OS is configured under the [edit routing-options] hierarchy.

Step-by-Step Breakdown:

Generated Routes:

A generated route is created based on the presence of more specific routes in the routing table. It acts as a summary route and is generated when any of its contributing routes are active. This is commonly used to create aggregate routes in OSPF, BGP, or other protocols.

Configuration Hierarchy:

The configuration for generated routes is placed under [edit routing-options], where other static and routing policies are also defined.

Command Example:

set routing-options generate route 10.10.0.0/16

Juniper

Reference:

Routing Options: Juniper routers use the routing-options hierarchy to configure generated routes and other static routing behaviors.

MACsec (Media Access Control Security) provides data confidentiality, integrity, and origin authenticity at Layer 2, protecting against several types of threats.

Step-by-Step Breakdown:

Man-in-the-Middle Attack Protection:

MACsec encrypts traffic at Layer 2, preventing man-in-the-middle attacks where an attacker intercepts and manipulates traffic between two communicating devices. Since the data is encrypted, any intercepted packets are unreadable.

Protection Against Playback Attacks:

MACsec also protects against playback attacks by using sequence numbers and timestamps to ensure that old, replayed packets are not accepted by the receiver.

Juniper

Reference:

MACsec Configuration: Juniper devices support MACsec for securing Layer 2 communications, ensuring protection against replay and man-in-the-middle attacks in sensitive environments.

In the exhibit, we see a static route configuration with two possible next hops for the default route (0.0.0.0/0):

next-hop 172.25.20.254 with the default preference of 7.

qualified-next-hop 172.25.20.200 with a preference of 6.

Step-by-Step Breakdown:

Preference Value:

In Junos OS, the preference value is used to determine which route should be preferred in the routing table. The lower the preference value, the higher the priority for the route.

Comparison:

In this case:

The next hop 172.25.20.254 has a preference of 7.

The qualified-next-hop 172.25.20.200 has a preference of 6.

Preferred Next Hop:

Since 172.25.20.200 has a lower preference (6) compared to 172.25.20.254 (7), it will be the preferred next hop in the routing table, assuming both next hops are reachable.

Juniper

Reference:

Qualified Next Hop: In Junos, static routes with multiple next-hop options are selected based on the preference value, with the lower value being preferred.
