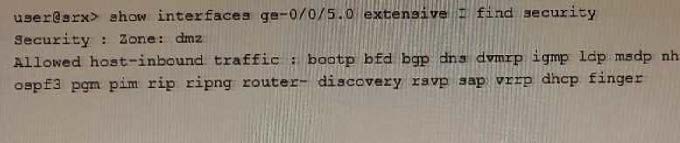

The exhibit shows the output of the "show interfaces ge-0/0/5.0 extensive" command on an SRX

Series device. The output includes a section called "Security" that lists the protocols that are allowed on the ge-0/0/5.0 interface. The protocols that are allowed on the ge-0/0/5.0 interface are:

OSPF

DHCP

NTP

It's important to notice that the output don't have IBGP, IPsec, so these protocols are not allowed on the ge-0/0/5.0 interface.

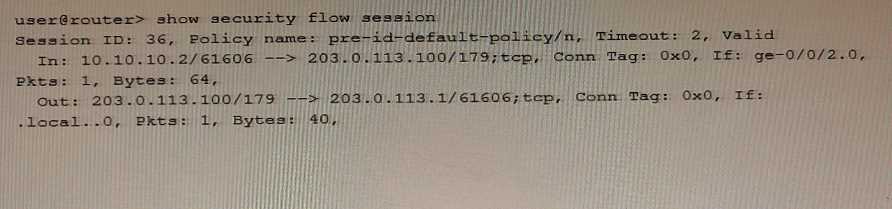

Source NAT is a type of NAT that is used to translate the source IP address and port number of a packet. This is typically used to allow multiple devices on a private network to access the internet using a single public IP address. In the exhibit, we can see that the source IP address and port number of the packet are being translated from 10.10.10.2/61606 to 203.0.113.100/179. This is a clear indication that Source NAT is being performed. Reference:

Network Address Translation Feature Guide SRX NAT with Illustrated Examples

In IPsec CoS-based VPNs, the number of IPsec Security Associations (SAs) associated with a peer is based on the number of forwarding classes configured for the VPN. The forwarding classes are used to classify and prioritize different types of traffic, such as voice and data traffic. Each forwarding class requires a separate IPsec SA to be established between the peers, in order to provide the appropriate level of security and quality of service for each type of traffic.

The SRX Series device in transparent mode uses packet flooding to learn about unknown devices in a network. Packet flooding is a process wherein the device sends out packets to every device it knows about or suspects in the network. When the packets are returned, the device can identify and classify the unknown devices in the network.

The solution to this problem is to enable address persistence. This will ensure that the same external IP address is used for multiple sessions between an internal host and an external host. This will result in only one authentication being required, as the same external IP address will be used for all sessions.

The command "show security dynamic-address category-name DS hield" will show the IP addresses that are part of the DS hield category. By filtering the output of this command with the "match 203.0.113.5" command, you can determine if the IP address 203.0.113.5 is part of the DS hield feed.

This command will check the feeds that are configured on SRX Series device and are associated to juniper ATP Cloud.

The command that will allow traffic to bypass the SRX Series device flow daemon based on the source address is set firewall family inet filter bypass_flowd term t1 then packet-mode. This command configures a stateless firewall filter named bypass_flowd that has one term t1. The term t1 can match the traffic based on the source address or any other criteria. The term t1 then applies the action packet-mode, which means that the traffic will be forwarded using packet-based processing and will not be sent to the flow daemon for stateful inspection. This feature is known as selective stateless packet-based forwarding and it allows you to use both flow-based and packet-based forwarding on the same device for different types of traffic. You can apply the firewall filter to the input or output direction of an interface to enable selective stateless packet-based forwarding for the traffic passing through that interface. Reference: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents:

https://www.juniper.net/documentation/en_US/junos/topics/concept/firewall-filter-option-filterbased-forwarding-overview.html

https://www.juniper.net/documentation/en_US/junos/topics/example/filter-based-forwardingexample.html

Juniper ATP Cloud is a cloud-based service that provides advanced threat prevention and detection for SRX Series devices. To enroll an SRX Series device with Juniper ATP Cloud, you need to have a valid license and authorization code, and you need to run a Junos OS op script on the device. The op script performs the following tasks:

Downloads and installs certificate authority (CA) licenses onto your SRX Series device.

Creates local certificates and enrolls them with the cloud server.

Performs basic Juniper ATP Cloud configuration on the SRX Series device.

Establishes a secure connection to the cloud server.

You can run the op script either by copying the CLI command from the Juniper ATP Cloud Web Portal and running it on the device, or by using the enroll command on the device. The op script is the only way to enroll an SRX Series device with Juniper ATP Cloud. You cannot enroll the device manually or by using other methods.

The other statements in the question are incorrect for the following reasons:

If a device is already enrolled in a realm and you enroll it in a new realm, none of the device data or configuration information is propagated to the new realm. This includes history, infected hosts feeds, logging, API tokens, and administrator accounts. You can view and change the realm association of a device from the Realm Management page in the Juniper ATP Cloud Web Portal.

The only way to enroll an SRX Series device is not to interact with the Juniper ATP Cloud Web Portal.

You can also use the enroll command on the device, which performs all the necessary enrollment steps without requiring you to access the Web Portal.

When the license expires, the SRX Series device is not disenrolled from Juniper ATP Cloud without a grace period. The device enters a grace period of 30 days, during which it can still send files to the cloud for inspection and receive threat intelligence feeds. After the grace period, the device is disenrolled and stops communicating with the cloud.

Reference:

How to Enroll Your SRX Series Firewalls in Juniper Advanced Threat Prevention (ATP) Cloud Using Policy Enforcer

Enroll an SRX Series Firewall using Juniper ATP Cloud Web Portal

ATP Cloud | Step 2: Up and Running

Enroll an SRX Series Firewall Using the CLI

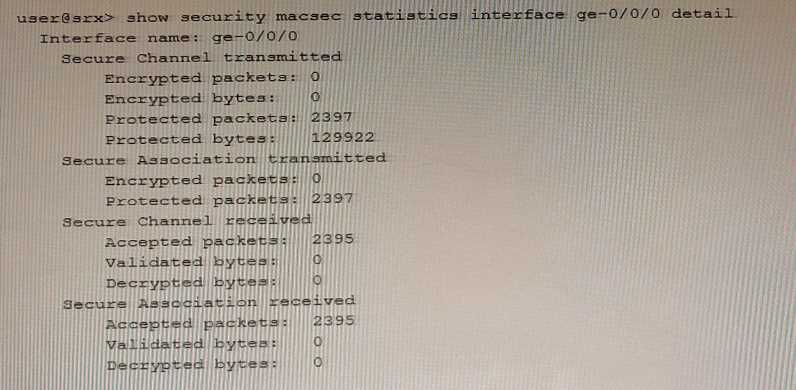

The exhibit shows the output of the show security macsec statistics interface ge-0/0/70 detail command on an SRX Series device. This command displays the statistics for the Media Access Control Security (MACsec) feature on the ge-0/0/70 interface. MACsec is a feature that provides point-topoint security on Ethernet links by using encryption and data integrity checks. MACsec uses two types of keys to secure the traffic: the Connectivity Association Key (CAK) and the Secure Association Key (SAK). The CAK is used for authentication and key exchange between the MACsec peers. The SAK is used for encryption and decryption of the MACsec traffic.

The two statements that are true based on the exhibit are:

The data that traverses the ge-0/0/70 interface is secured by a secure association key. This is because the exhibit shows that the interface has a Secure Channel (SC) and a Secure Association (SA) established. The SC is a logical connection between the MACsec peers that carries the encrypted traffic. The SA is a subset of the SC that contains the SAK and other parameters for encrypting and decrypting the traffic. The exhibit shows that the interface has encrypted and protected packets, which means that the traffic is secured by the SAK.

The data that traverses the ge-0/0/70 interface cannot be intercepted and read by anyone. This is because the exhibit shows that the interface has encryption enabled. The encryption option indicates whether the MACsec traffic is encrypted or not. If encryption is enabled, the traffic is encrypted by the SAK and cannot be viewed by anyone monitoring the link. If encryption is disabled, the traffic is only protected by the SAK and can be viewed by anyone monitoring the link.

Reference: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents:

https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-security-macsec-statistics-interface-detail.html

https://www.juniper.net/documentation/en_US/junos/topics/concept/security-macsecoverview.html
