An EVPN Type-4 route, also known as an Ethernet Segment (ES) route, is generated when a new Ethernet Segment Identifier (ESI) is configured. The ESI represents an Ethernet segment for multi-homing purposes in EVPN. When a new ESI is configured on an interface, it triggers the generation of an EVPN Type-4 route to advertise the Ethernet segment's existence and its multi-homed state to other VTEPs in the EVPN instance. This helps in providing redundancy and load balancing in a multi-homed EVPN environment.

EVPN Type 4 Route (Ethernet Segment Route) Explanation

VXLAN (Virtual Extensible LAN) is an overlay technology designed to support large-scale, multi-tenant environments. Unlike traditional VLANs which are limited to 4096 unique network identifiers, VXLANs can support up to 16 million unique network segments, providing significantly greater scalability. This is achieved through a 24-bit VXLAN Network Identifier (VNI). Additionally, being an overlay technology, VXLAN allows for the creation of virtualized Layer 2 networks over an existing Layer 3 infrastructure.

Reference: Juniper Networks Documentation, VXLAN Overview.

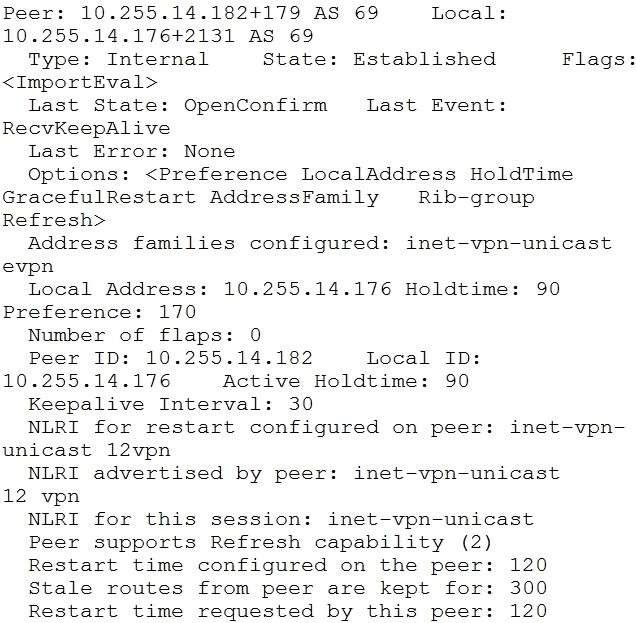

In a data center IP fabric scenario, Multi-Protocol Border Gateway Protocol (MP-BGP) is used to support Ethernet VPN (EVPN). EVPN is a next-generation solution for multipoint L2VPN services that combines both Layer 2 and Layer 3 attributes. MP-BGP is essential for EVPN as it provides the control plane for EVPN by advertising MAC addresses, IP address information, and VXLAN information.

Reference: Juniper Networks Documentation, EVPN Overview.

In a data center network, the vSRX, which is a virtual firewall provided by Juniper, offers microsegmentation capabilities. Microsegmentation is a method of creating secure zones in data centers and cloud deployments to isolate workloads from one another and secure them individually. vSRX is capable of enforcing security policies at a granular level in virtualized environments, which is essential for effective microsegmentation.

Reference: Juniper Networks vSRX Documentation.

For building an IP fabric underlay network in a data center, it is recommended that all spine devices are identical models, including the same installed line cards, to ensure uniformity and predictable performance. Additionally, each leaf device should have an identical uplink to every spine device to ensure consistent and predictable load-balancing behavior across the network. This uniformity in spine and leaf configurations helps in achieving optimal and predictable data paths, thereby enhancing overall network efficiency and stability.

Reference: Juniper Networks Technical Documentation, Data Center Design Considerations.

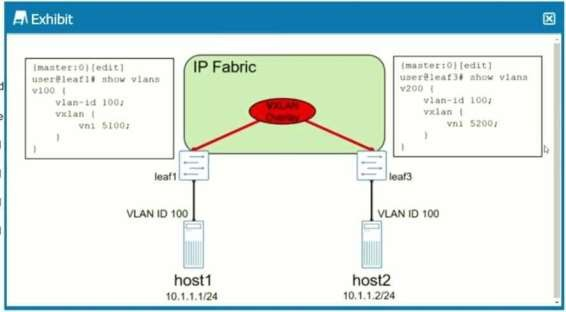

In VXLAN domains, when dealing with Layer 2 traffic, the original VLAN ID of the packet can be either transmitted within the VXLAN packet or discarded, depending on the specific implementation and configuration. When the VLAN ID is preserved, it allows for VLAN transparency, enabling the VXLAN to transport VLAN-tagged frames across the network. On the other hand, discarding the VLAN ID can simplify the encapsulation process but removes the original VLAN information from the packet.

Reference: Juniper Networks VXLAN Implementation Guide.

The MAC mass withdrawal feature in EVPN-VXLAN environments significantly improves network convergence during link failures. When a link failure occurs, instead of individually withdrawing each MAC address learned on the failed link, EVPN can send a single, consolidated message indicating that all MAC addresses associated with the Ethernet Segment Identifier (ESI) of the failed link are no longer reachable. This accelerates the convergence process by reducing the amount of control plane traffic needed to update the network state.

Reference: Juniper Networks EVPN-VXLAN Technical Documentation.
