Juniper JN0-682 Practice Test - Questions Answers, Page 16

Question list

List of questions

Question 151

(0)

You have deployed a VXLAN as shown in the exhibit Leaf1, leaf3, spine1, and spine2 have been configured as VTEPs. Host1 cannot communicate with host2. Referring to the exhibit, how would you solv

Question 152

(0)

Referring to the exhibit, each node in the IP fabric is peering to its directly attached neighbor using EBGP. Each node is peering using physical interface IP addresses. Leaf 2 and Leaf 3 are advert

Question 153

(0)

Which two statements are true Virtual Chassis? (Choose two.)

Question 154

(0)

In the exhibit, VM1 is part of the same VXLAN segment as VM3. Which type of message will VTEP B initially send to the RP so that VM3 can communicate with VM1?

Open VPLUS File

Convert VPLUS to PDF

Related questions

You are troubleshooting an L3VPN that is part of an EVPN/MPLS DCI. You notice that the EVPN overlay BGP session toward 10.29.50.4 is unable to establish. Why is the BGP session failing to establish?

Refer to the exhibit. Referring to the exhibit, which two statements are correct? (Choose two.)

Which two statements about a DHCP relay in an EVPN-VXLAN fabric are correct? (Choose two.)

Which two combinations are supported when configuring a Virtual Chassis Fabric? (Choose two.)

Which two statements are true Virtual Chassis? (Choose two.)

Referring to the exhibit, each node in the IP fabric is peering to its directly attached neighbor using EBGP. Each node is peering using physical interface IP addresses. Leaf 2 and Leaf 3 are advertising the 10.1.1/24 network into EBGP. Spine 2 must be configured so that it can load- share traffic destined to the 10 1.1/24 network over both next-hop A and next-hop B. Which two actions must be performed to accomplish this task? (Choose two.)

Which protocol is used between VCF member devices to create a loop-free topology?

Which two statements are correct about VXLANs? (Choose two.)

Which two statements define the use of route targets and route distinguishers in an EVPN? (Choose two.)

You have a two spine and four leaf CRB topology and you must ensure that the hosts connected to the leaf devices have reachability to all IRB interface addresses, including the local spine IRB addresses, and the virtual gateway address. Which two configuration parameters must be used to accomplish this task? (Choose two.)

Question 151

Report

You have deployed a VXLAN as shown in the exhibit Leaf1, leaf3, spine1, and spine2 have been configured as VTEPs. Host1 cannot communicate with host2.

Referring to the exhibit, how would you solve this problem?

A.

The VLAN ID on the connected to host2 must be changed to VLAN 100

B.

A DCI connected must be created between the VLANs

C.

Host1 and host2 must be placed in the same VRF

D.

A layer 3 VXLAN gateway must be configured on at least on at least one of the devices

Show Answer Comment (0)

Question 152

Report

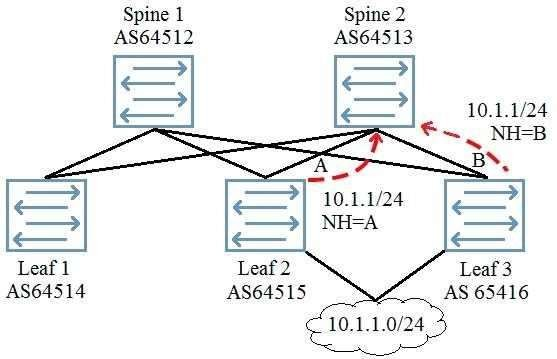

Referring to the exhibit, each node in the IP fabric is peering to its directly attached neighbor using EBGP. Each node is peering using physical interface IP addresses. Leaf 2 and Leaf 3 are advertising the 10.1.1/24 network into EBGP. Spine 2 must be configured so that it can load- share traffic destined to the 10 1.1/24 network over both next-hop A and next-hop B.

Which two actions must be performed to accomplish this task? (Choose two.)

A.

Use multipath multipath-As

B.

Use multihop

C.

Use advertise inactive

D.

Use a load-balancing policy applied to the forward table

Show Answer Comment (0)

Question 153

Report

Which two statements are true Virtual Chassis? (Choose two.)

A.

By default, Junos switches are in non-mixed mode virtual chassis.

B.

The request virtual-chassis mode fabric reboot command will set the Virtual Chassis to fabric mode with similar devices

C.

By default, Junos switches are in a mixes mode Virtual Chassis

D.

The request virtual-chassis mode fabric reboot command will set the Virtual Chassis to mixed mode.

Show Answer Comment (0)

Question 154

Report

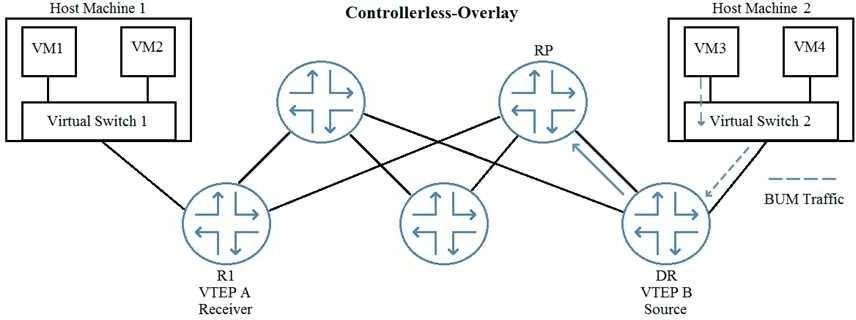

In the exhibit, VM1 is part of the same VXLAN segment as VM3.

Which type of message will VTEP B initially send to the RP so that VM3 can communicate with VM1?

A.

PIM join

B.

IGMP Join (*, G)

C.

IGMP Join (S,G)

D.

PIM register message

Show Answer Comment (0)

Total 154 questions
