Home / Juniper / JN0-682

Juniper JN0-682 Practice Test - Questions Answers, Page 11

Question list

List of questions

Question 101

(0)

You are deploying a switch using ZTP. Which two statements are true in this scenario? (Choose two.)

Question 102

(0)

You are asked to build a single export policy that can be applied to all devices to advertise only loopback IP addresses in the 172.16.0.0/24 subnet into your EBGP IP fabric. In this scenario, which

Question 103

(0)

The MC-LAG group shown in the exhibit is providing high availability services for the directly connected servers. The backup liveness detection is applied to the ICL-PL link, however, when one of th

Question 104

(0)

You are deploying a VXLAN using signaling overlay network in your new data center. You are able to establish your MP BGP peering session and see your EVPN routes, but traffic will not traverse the V

Question 105

(0)

What is the endpoint of a VXLAN tunnel?

Question 106

(0)

Host1 and host2 are connected to an EVPN signaled VXLAN overlay, and must have Layer 3 connectivity. The VNI and VLAN assignments are shown in the exhibit. In this scenario, which two statements

Question 107

(0)

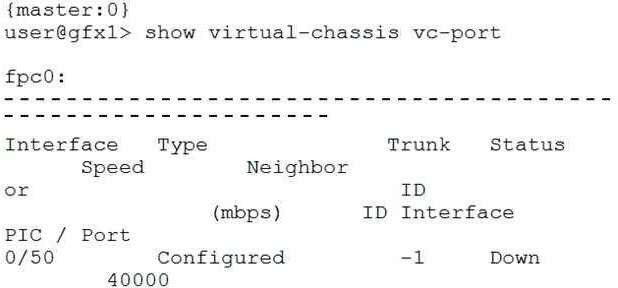

Referring to the exhibit, what would cause the problem on VCP 0/50?

Question 108

(0)

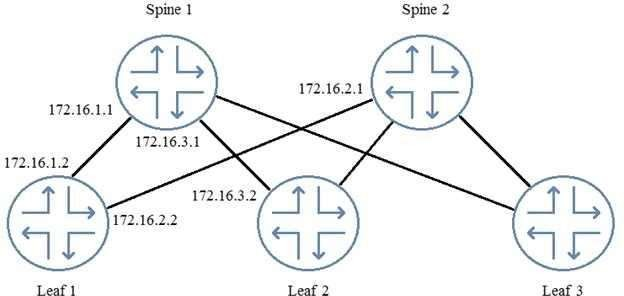

You are logged in to Leaf 1. When examining the routing table, you notice that you have no routes from Leaf 2. Referring to the exhibit, which two commands would you use to troubleshoot the probl

Question 109

(0)

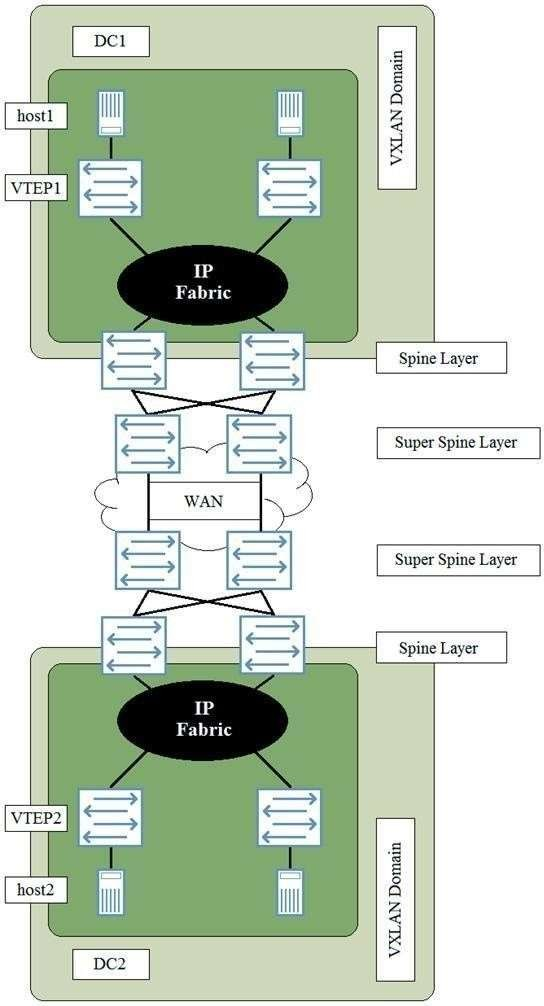

You have deployed two data centers that require a Layer 2 stretch between host1 and host2. Referring to the exhibit, what does a Layer 2 stretch require?

Question 110

(0)

What are three functions supported by the Contrail Command user interface?

Question 101

You are deploying a switch using ZTP.

Which two statements are true in this scenario? (Choose two.)

If the switch is already running the referenced image, no action is performed and the switch moves to the next ZTP step in the ZTP process.

Using DHCP Option 150. the DHCP server informs the switch of a software image name.

Using DHCP Option 43 sub option 01, the DHCP server informs the switch of the configuration file name.

If no configuration file is referenced in DHCP Options, the switch downloads a default configuration file from the storage server.

Show Answer Comment (0)

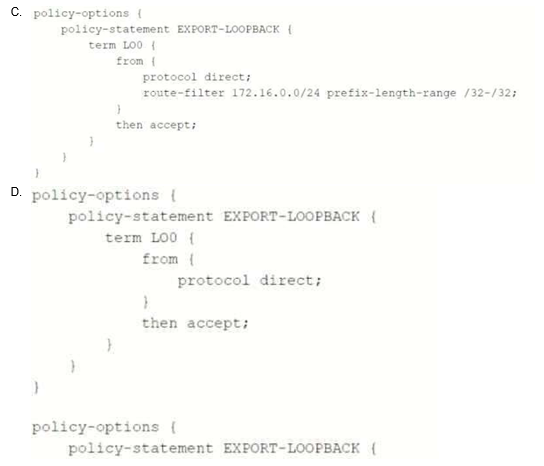

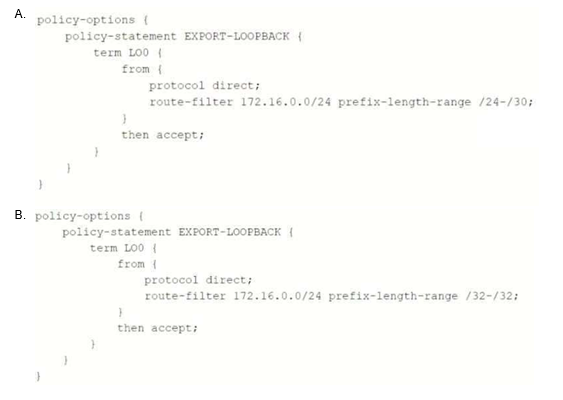

You are asked to build a single export policy that can be applied to all devices to advertise only loopback IP addresses in the 172.16.0.0/24 subnet into your EBGP IP fabric. In this scenario, which two solutions would accomplish this task? (Choose two.)

Option A

Option B

Option C

Option D

Show Answer Comment (0)

Question 103

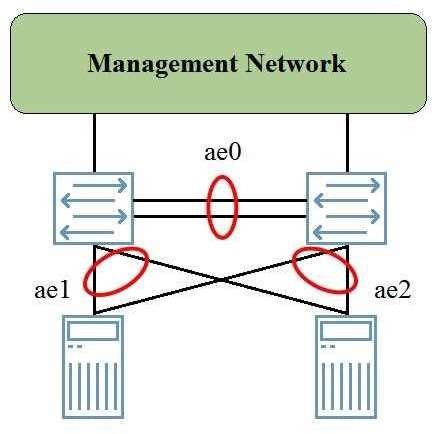

The MC-LAG group shown in the exhibit is providing high availability services for the directly connected servers. The backup liveness detection is applied to the ICL-PL link, however, when one of the members rebooted, there was traffic loss for a few seconds.

In this scenario, where should you apply the backup liveness detection?

On the management interfaces

On the ae2 interface

On the ae1 interface

On the ae0 interface

Show Answer Comment (0)

Question 104

You are deploying a VXLAN using signaling overlay network in your new data center. You are able to establish your MP BGP peering session and see your EVPN routes, but traffic will not traverse the VXLAN using signaling overlay network.

What is a solution to this problem?

Enable the mtu-discovery feature on the MP peering sessions between VXLAN ANs EVPN signaling peers.

Increase the protocol MTU on all devices participating in VXLAN using EVPN signaling

Increase the MTU on the logical VTEP source interface of all devices participating in VXLAN using EVPN signaling.

Increase the physical MTU on all ports on all devices participating in VXLAN using EVPN signaling.

Show Answer Comment (0)

Question 105

What is the endpoint of a VXLAN tunnel?

DLCI

VTEP

LSR

VCF

Show Answer Comment (0)

Question 106

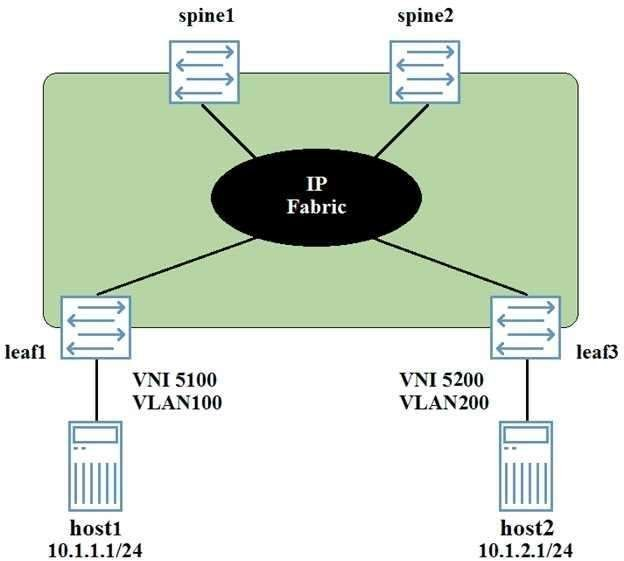

Host1 and host2 are connected to an EVPN signaled VXLAN overlay, and must have Layer 3 connectivity. The VNI and VLAN assignments are shown in the exhibit.
