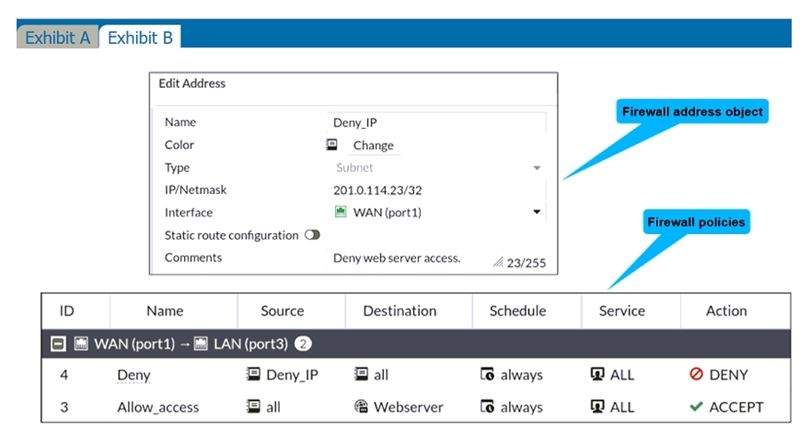

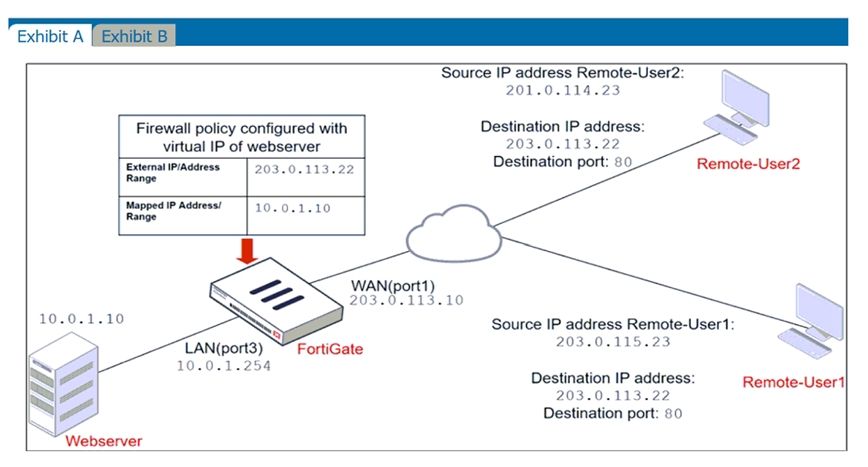

The exhibits show a network diagram and firewall configurations for a FortiGate unit that has two policies: Allow_access and Deny. The Allow_access policy allows traffic from the WAN (port1) interface to the LAN (port3) interface with the destination address of VIP and the service of HTTPS. The VIP object maps the external IP address 10.200.1.10 and port 10443 to the internal IP address 10.0.1.10 and port 443 of the Webserver. The Deny policy denies traffic from the WAN (port1) interface to the LAN (port3) interface with the source address of Deny_IP and the destination address of All.

In this scenario, the administrator wants to deny Webserver access for Remote-User2, who has the IP address 10.200.3.2, which is included in the Deny_IP address object. Remote-User1, who has the IP address 10.200.3.1, must be able to access the Webserver.

To achieve this goal, the administrator can make two changes to deny Webserver access for Remote-User2:

Set the Destination address as Webserver in the Deny policy. This will make the Deny policy more specific and match only the traffic that is destined for the Webserver's internal IP address, instead of any destination address.

Enable match-vip in the Deny policy. This will make the Deny policy apply to traffic that matches a VIP object, instead of ignoring it1. This way, the Deny policy will block Remote-User2's traffic that uses the VIP object's external IP address and port.

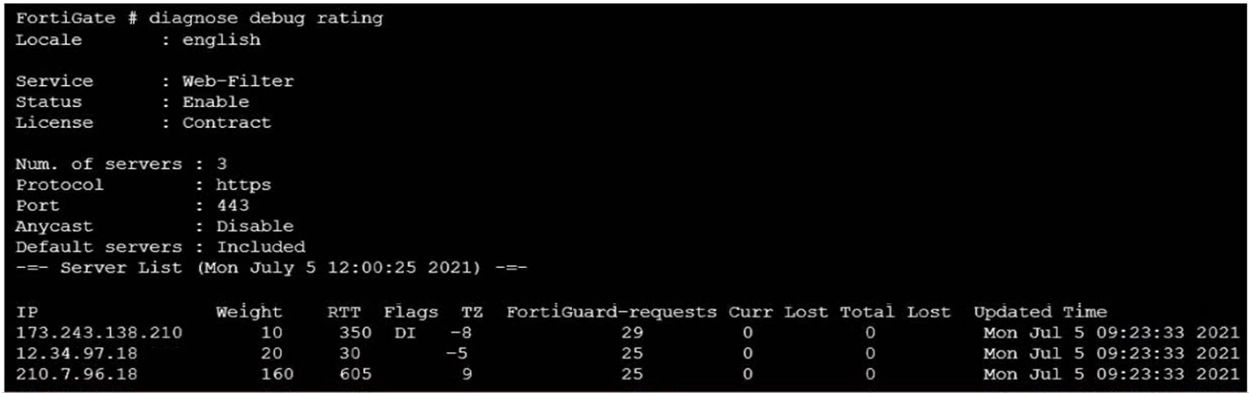

FortiGate Security 7.2 Study Guide (p.287-288): 'Flags: D (IP returned from DNS), I (Contract server contacted), T (being timed), F (failed)' 'By default, FortiGate is configured to enforce the use of HTTPS port 443 to perform live filtering with FortiGuard or FortiManager. Other ports and protocols are available by disabling the FortiGuard anycast setting on the CLI.'

https://community.fortinet.com/t5/FortiGate/Technical-Note-How-to-use-emac-vlan-to-share-the-same-VLAN/ta-p/192843?externalID=FD43883

When FortiGate is operating in NAT mode, it means that it uses network address translation (NAT) to modify the source or destination IP addresses of the traffic passing through it1. NAT mode allows FortiGate to hide the IP addresses of the internal network from the external network, and to conserve IP addresses by using a single public IP address for multiple private IP addresses1.

A virtual LAN (VLAN) subinterface is a logical interface that allows traffic from different VLANs to enter and exit the FortiGate unit2. A VLAN subinterface is created by adding a VLAN ID to a physical interface or an aggregate interface2. A VLAN ID is a numerical identifier that distinguishes one VLAN from another2.

In this scenario, there are two requirements for the VLAN ID of the VLAN subinterfaces added to the same physical interface:

The two VLAN subinterfaces must have different VLAN IDs. This is because the VLAN ID is used to tag the traffic with the appropriate VLAN information, and to separate the traffic into different VLANs2. If the two VLAN subinterfaces have the same VLAN ID, they will not be able to distinguish the traffic from each other, and they will not be able to forward the traffic to the correct destination.

The two VLAN subinterfaces can have the same VLAN ID, only if they belong to different VDOMs. This is because VDOMs are virtual instances of FortiGate that can have their own interfaces, policies, and routing tables3. Each VDOM operates independently from other VDOMs, and can have its own VLAN subinterfaces with different or identical VLAN IDs3. However, this requires inter-VDOM links to allow traffic between different VDOMs3.

https://docs.fortinet.com/document/fortigate/6.0.0/handbook/49719/configuring-sd-wan-load-balancing

https://kb.fortinet.com/kb/documentLink.do?externalID=12069

FortiGate Infrastructure 7.2 Study Guide (p.264): '...then FortiGate might drop interesting traffic because of the absence of active SAs. To prevent this, you can enable Auto-negotiate. When you do this, FortiGate not only negotiates new SAs before the current SAs expire, but it also starts using the new SAs right away.' 'Another benefit of enabling Auto-negotiate is that the tunnel comes up and stays up automatically, even when there is no interesting traffic. When you enable Autokey Keep Alive and keep Auto-negotiate disabled, the tunnel does not come up automatically unless there is interesting traffic. However, after the tunnel is up, it stays that way because FortiGate periodically sends keep alive packets over the tunnel. Note that when you enable Auto-negotiate, Autokey Keep Alive is implicitly enabled.'
