Fortinet NSE7_PBC-7.2 Practice Test - Questions Answers, Page 5

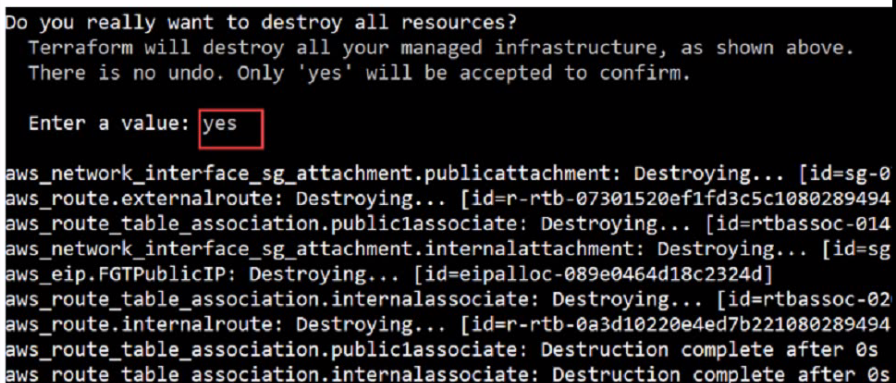

Confirming to delete all the resources in Terraform will have the following impact:

D) It destroys all the resources in the state file.

Terraform State File Role: The terraform.tfstate file contains a real-time mapping of the resources that Terraform manages, including their current configuration and relationships. This file tracks the actual state of resources provisioned by Terraform.

Impact of Destruction: When Terraform prompts for confirmation to destroy resources, and 'yes' is entered, Terraform reads the state file and systematically removes all the resources that are managed as part of that state. This is not limited to a specific .tfvars file, IAM user, or resource group---it is a global action that affects all resources tracked by the state file associated with the current Terraform workspace and configuration.

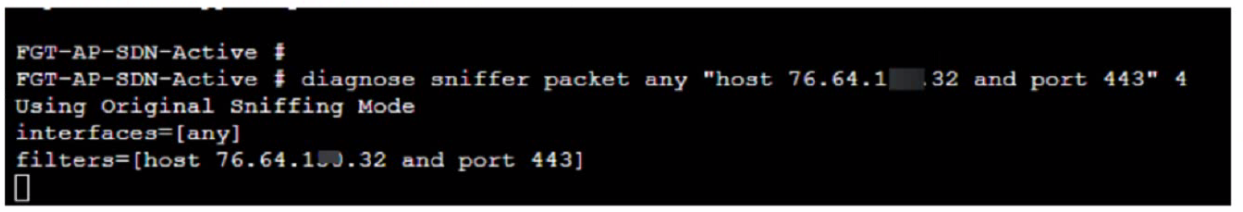

Considering the situation where the administrator is unable to access the FortiGate VM using its public IP address and no traffic is reaching the FortiGate's external interface, the administrator should check:

D) Check the inbound network security group rules.

Network Security Group Rules: AWS uses security groups as a virtual firewall that controls inbound and outbound traffic to AWS resources such as EC2 instances. If the FortiGate VM's public interface is not receiving HTTPS or SSH traffic, it's likely because the inbound security group rules associated with that interface are not allowing access on the necessary ports (HTTPS - port 443, SSH - port 22).

Troubleshooting: The administrator should verify that the security group rules for the FortiGate VM's network interface allow inbound traffic on the specific ports used for management access. If these rules are absent or misconfigured, the intended traffic will be blocked, resulting in the inability to connect.

When deploying resources in multiple places and regions in the public cloud using Terraform, the most efficient way is:

A) Use multiple terraform.tfvars files with a variables.tf file.

Terraform.tfvars File: This file is used to assign values to variables defined in your Terraform configuration. By having multiple .tfvars files, you can define different sets of values for different deployments, such as for different regions or environments, without changing the main configuration.

Variables.tf File: This file contains the definition of variables that will be used within your Terraform configuration. It works in conjunction with terraform.tfvars files, allowing you to parameterize your configuration so that you can deploy the same template in multiple environments with different variables.

In using Red Hat Ansible for changing the configuration of a FortiGate VM, the minimum number of files you must create and the file to configure the target FortiGate IP address are:

B) Create two files and use the hosts file.

Ansible Playbook File (YAML): The playbook file, which is typically a YAML file, contains the desired states and tasks that Ansible will execute on the target hosts.

Inventory File (Hosts): The inventory file, commonly named hosts, is where you define the target machines, including the FortiGate VM's IP address. Ansible uses this file to determine on which machines to run the playbook.

By creating these two files, you will have the necessary components to configure Ansible for the deployment. The playbook contains the automation tasks, and the hosts file lists the machines where those tasks will be executed.

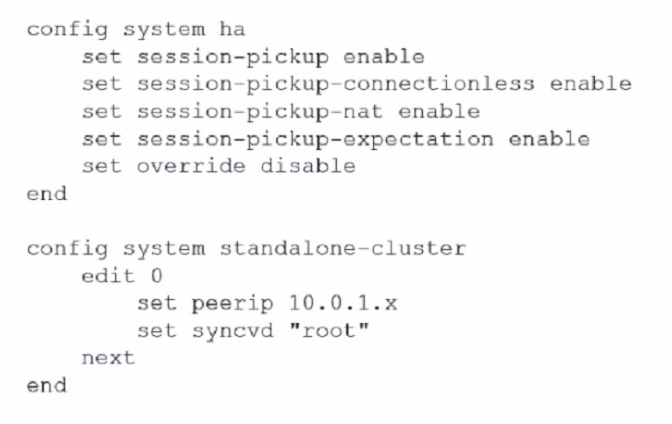

In an HA active-active load balance configuration with FortiGate VMs, especially in Microsoft Azure where FGSP (FortiGate Session Life Support Protocol) is used for session synchronization, the correct configuration for the peerip is:

D) The opposite FortiGate port 2 IP address.

HA Synchronization Requirements: FGSP requires direct communication between the FortiGates to synchronize the session table. This synchronization typically occurs over a dedicated HA link that connects the HA pair.

Asymmetric Traffic Considerations: FGSP allows asymmetric traffic to rejoin the correct session by synchronizing session information, including NAT and TCP sequence tracking between the FortiGate units in a cluster.

Configuration Specifics: For port 2, which is facing the internal load balancer, the peerip should be set to the corresponding port 2 IP address of the opposite FortiGate. This allows the internal interfaces to communicate directly with each other for session synchronization purposes, which is crucial in an active-active deployment to ensure sessions persist during failover scenarios.

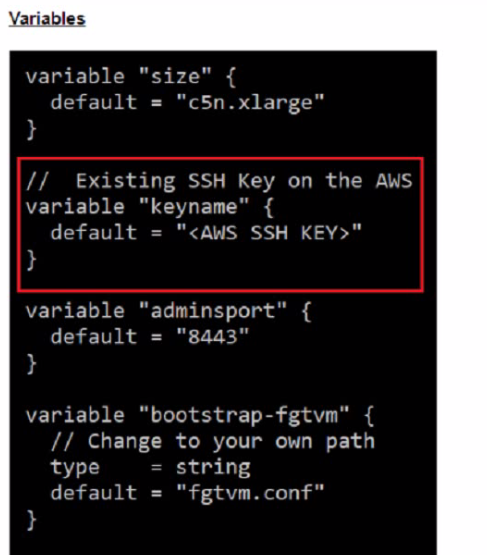

For deploying a FortiGate VM using Terraform in AWS, the administrator must use:

B) Use the Name of the key pair.

Terraform and AWS SSH Keys: When deploying instances in AWS using Terraform, it is required to specify the name of the SSH key pair to enable key-based authentication to the instance post-deployment.

Configuration Syntax: The variable keyname within the Terraform configuration should match the exact name of the SSH key pair as it is stored in AWS. This ensures that Terraform can reference the correct key during the deployment process to set up SSH access to the FortiGate VM.

Terraform Variables: The variable 'keyname' block in the Terraform configuration will look for the key pair name as it should be declared in the terraform.tfvars file or passed as a variable during execution. This does not require the key pair's ID or fingerprint, just its name.

When an administrator decides to use the 'Use managed identity' option for the FortiGate SDN connector with Microsoft Azure and faces a connection failure, the correct action to take is:

C) Make sure to enable the system assigned managed identity on Azure.

Managed Identity Configuration: The system assigned managed identity is a feature in Azure that provides an identity for the Azure service instance (in this case, the FortiGate SDN connector) within Azure Active Directory and eliminates the need for credentials to be stored in the configuration.

Troubleshooting Connection Issues: If the SDN connector is failing to connect, it could be because the system assigned managed identity has not been enabled or configured properly in Azure for the FortiGate service.

For configuring the failover settings on a FortiGate active-passive SDN connector solution in Microsoft Azure, the two mandatory settings required after the initial deployment are:

A) Subscription-id

D) Resource group name

Subscription ID: This is a unique identifier for your Azure subscription under which all resources are created and billed. FortiGate needs this to interact with the Azure resources associated with that subscription.

Resource Group Name: A resource group in Azure is a container that holds related resources for an Azure solution. The SDN connector requires the resource group name to correctly identify and manage the resources it should control, especially in a failover scenario.

To keep track of sensitive data files located in AWS S3 buckets and protect them from malware, the administrator should use:

C) FortiCNP DLP policies.

Data Loss Prevention (DLP): DLP policies are designed to detect and prevent unauthorized access or sharing of sensitive data. In the context of AWS S3, DLP policies can be used to scan for sensitive information stored in S3 objects and enforce protective measures to prevent data exfiltration or compromise.

FortiCNP Integration: FortiCNP is Fortinet's cloud-native protection platform that offers security and compliance solutions across cloud environments. By applying DLP policies within FortiCNP, the administrator can ensure sensitive data within S3 is monitored and protected consistently.
