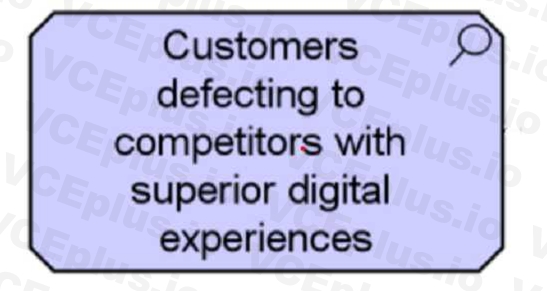

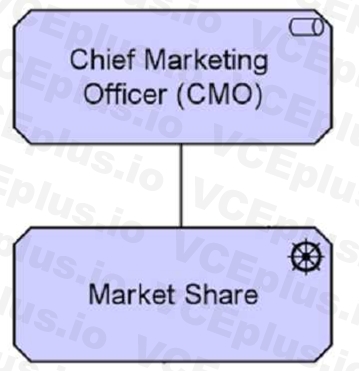

Based on the ArchiMate 3 documents or objectives, an assessment represents the result of an analysis of the state of affairs of the enterprise with respect to some driver. An assessment may reveal strengths, weaknesses, opportunities, or threats for some area of interest. An assessment is a motivation element that can be associated with other motivation elements such as stakeholders, drivers, goals, outcomes, etc. The notation for an assessment is a rectangle with a rounded top and a horizontal line inside it. The symbol in this question is an assessment that expresses the analysis of ArchiSurance’s situation.

Reference: ArchiMate® 3.2 Specification, Chapter 7 Strategy Elements, Section 7.2 Motivation Elements 1; Assessment ArchiMate | QualiWare Center of Excellence 2.

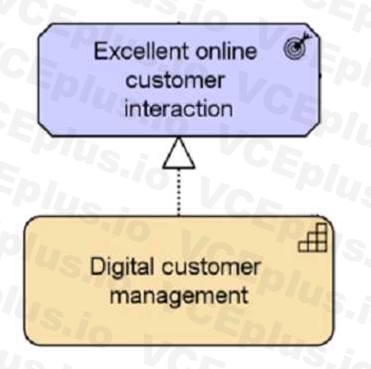

Based on the ArchiMate 3 documents or objectives, a capability represents an ability that an active structure element, such as an organization, person, or system, possesses. An outcome represents an end result that has been achieved. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. The diagram uses a realization relationship from the Digital customer management capability to the Excellent online customer interaction outcome to indicate that the capability realizes the outcome.

Reference: ArchiMate® 3.2 Specification, Chapter 7 Strategy Elements, Section 7.2 Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; Capability Map: Artifact of Vision Phase - Visual Paradigm Guides 2.

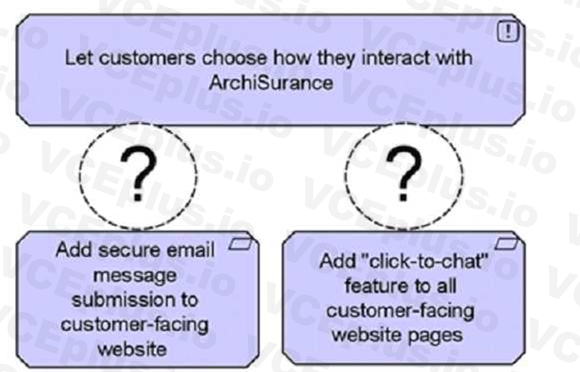

Based on the ArchiMate 3 documents or objectives, an aggregation relationship indicates that an element groups a number of other concepts. The aggregation relationship has been inspired by the aggregation relationship in UML class diagrams. Unlike composition, aggregation does not imply an existence dependency between the aggregating and aggregated concepts. The notation for an aggregation relationship is a solid line with an empty diamond at the end that points to the whole element. The diagram uses an aggregation relationship from the bottom elements to the top element to indicate that the top element groups the bottom elements.

Reference: ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; Structural Relationship: Part 3 - ArchiMate Resources for FREE 2.

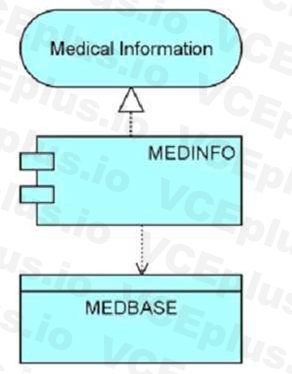

Based on the ArchiMate 3 documents or objectives, an application component represents a modular, deployable, and replaceable part of a software system that encapsulates its behavior and dat a. An application service represents an explicitly defined exposed application behavior. A data object represents data structured for automated processing. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. An access relationship models the ability of behavior and active structure elements to observe or act upon passive structure elements. The diagram uses a realization relationship from the MEDINFO application component to the Medical Information service to indicate that the application component realizes the service. The diagram also uses an access relationship from the MEDINFO application component to the MEDBASE data object to indicate that the application component accesses the data object.

Reference: ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.1 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.3 Behavior Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.3 Access Relationships 1; ArchiMate Example: Application Components - Visual Paradigm 2.

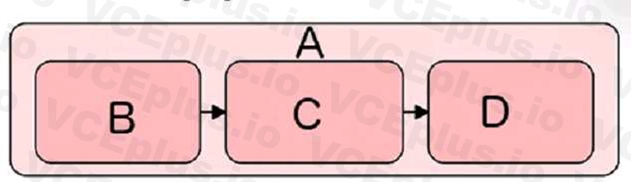

The diagram shows a work package, which is a grouping of behavior and/or structure elements that can be assigned to one or more performers. A work package can be used to model a project or a program, and it can contain deliverables, which are outcomes of the work package. The four elements (A, B, C, and D) are all deliverables that are part of the work package.

Reference: ArchiMate® 3.2 Specification, Chapter 10: Motivation Elements, Section 10.4 Work Package1; Chapter 11: Strategy Elements, Section 11.5 Deliverable2.

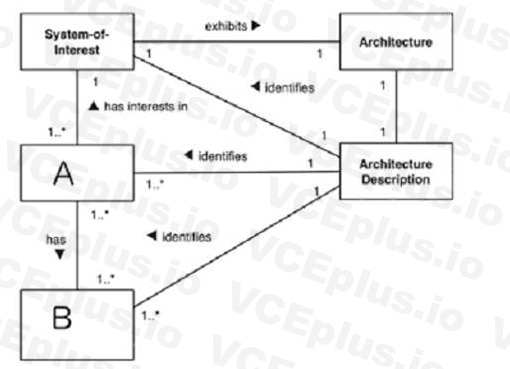

According to the conceptual model of architecture description from ISO/IEC 42010, an architecture view is a representation of a system from the perspective of a set of concerns. An architecture viewpoint is a specification of the conventions and rules for constructing and using an architecture view. A and B in the diagram correspond to these concepts respectively.

Reference: ISO/IEC/IEEE 42010: Conceptual Model1; ISO/IEC/IEEE 42010:2011 - Systems and software engineering — Architecture description2.

According to the ArchiMate language structure, a concept is either an element or a relationship. An element is either a behavior element, a structure element, a motivation element, or a composite element. A and B in the diagram correspond to these concepts respectively.

Reference: ArchiMate® 3.2 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure; ArchiMate® 3.0 Specification, Chapter 3: Language Structure, Section 3.2 Top- Level Language Structure.

According to the physical elements metamodel, a facility is a specialization of a node, which is an active structure element that represents a computational or physical resource that hosts, manipulates, or interacts with other computational or physical resources. A facility can be used to model physical buildings or locations.

Reference: Physical Layer: Part 1 - Metamodel1; ArchiMate® 3.0.1 Specification, Chapter 9: Physical Elements2.

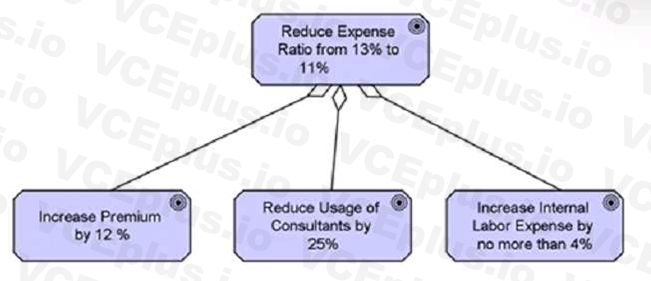

The diagram uses the ArchiMate notation for a goal element and an aggregation relationship. A goal element represents an end state that a stakeholder intends to achieve. An aggregation relationship indicates that a whole is composed of parts. In this case, the goal ‘Reduce Expense Ratio from 13% to 11%’ is composed of three sub-goals that contribute to its achievement.

Reference: ArchiMate® 3.2 Specification, Chapter 10: Motivation Elements, Section 10.1 Goal; Chapter 5: Relationships, Section 5.2 Aggregation.
