The typical physical connector used for a Gigabit Ethernet port is an RJ-45. This connector is standard for network cabling and provides the necessary performance for Gigabit Ethernet, which is also known as 1000BASE-T. RJ-45 connectors are used because they can support higher data rates compared to other connectors like RJ-11 or RJ-9, which are commonly used for telephone connections, and DB-25, which is an older serial port connector not suitable for high-speed Ethernet connections1.

Reference := 2: Ethernet Alliance - The Physical Layer of Ethernet 3: Altium - Gigabit Ethernet 101: Basics to Implementation 1: Ascent Optics - All You Need to Know About RJ45 Cables: Connectors, Interfaces, and... 4: Hardware Secrets - Gigabit Ethernet and How it works (a 2022 Guide)

Questions no : 12 Verified Answer: = B. switch-to-router, E. switch-to-server

Switch-to-Router: A switch connects devices within a network by using MAC addresses to forward data to the correct destination. A router, on the other hand, connects multiple networks and uses IP addresses to determine the best path for the data packets. Connecting a switch to a router requires a straight-through cable because they are different types of devices12.

Switch-to-Server: Servers are the powerful computers that provide resources, data, services, or programs to the client machines in the network. When connecting a switch to a server, a straight-through cable is used because the switch and the server are different types of devices with different functions within the network12.

The features associated withsingle-mode fiber-optic cableinclude:

Consists of a single strand of glass fiber: Single-mode fiber uses a single core (strand) of glass fiber to transmit light signals. This core is thinner than that of multimode fiber, allowing for greater transmission distances.

Carries a higher bandwidth than multimode fiber: Single-mode fiber can carry higher data rates over longer distances compared to multimode fiber. It is commonly used in long-haul communication links and high-speed networks.

Single-mode vs. Multimode Fiber

Fiber Optic Cable Types

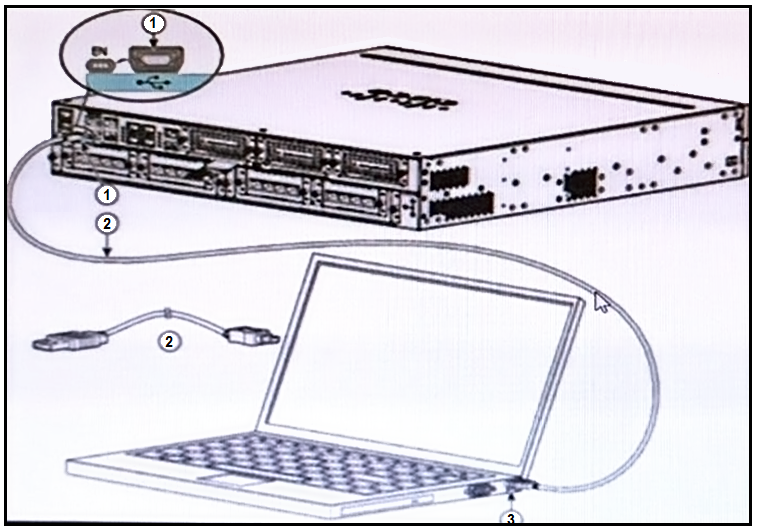

The image provided shows a networking device connected to a laptop via a console cable. Based on the visual indicators and standard port designs:

C . 3 is a USB 5-pin mini USB Type B port: The port labeled ''3'' on the laptop is smaller than a standard USB Type A port, which suggests it is a mini USB Type B port, commonly used for connecting to networking devices for console access.

E . 2 is a USB 5-pin mini USB Type B to USB Type A console cable: The cable labeled ''2'' has one end that fits into the mini USB Type B port on the laptop (as identified in point 1), and the other end, which is not clearly visible in the image, is inferred to be a USB Type A connector that would typically connect to a computer's USB port.

For 40 Gigabit Ethernet connectivity, the type of transceiver module used is QSFP+ (Quad Small Form-Factor Pluggable Plus). QSFP+ modules are designed to carry 40-Gigabit Ethernet signals over fiber-optic or copper networking cables. They provide high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. QSFP+ modules are an evolution of the SFP+ (Small Form-Factor Pluggable Plus) modules, offering four times the bandwidth capacity1.

The line speed of a DS0 in North America is:

C . 64 kbps

DS0, or Digital Signal 0, is a digital signaling standard in telecommunications characterized by its transmission rate of64 Kbps.It is the basic unit of data in digital networks and is used to transmit a single voice channel or data

To gain console access to a Cisco switch, two types of ports on a laptop can be used:DB-9andUSB.The DB-9 port is a traditional serial port that is often used with a DB-9 to RJ-45 console cable to connect to the switch's console port1.However, as modern laptops may not have a DB-9 port, aUSB to Serial adaptercan be used instead, which creates a virtual COM port that can be used to connect to the switch1. The USB port can also be used directly if the switch has a USB console port, which is common on newer Cisco devices. These ports allow for direct physical connection to the switch for configuration and management purposes.Reference:=Access the CLI via PuTTY using a Console Connection on 300 and 500 Series Managed Switches - Cisco,How to connect Switch with console port - Cisco Learning Network

SmartJacks are specialized devices used in telecommunications, particularly for T1/E1 lines. Here's why the correct answers make sense:

Signal Conversion: SmartJacks can convert between different signaling types (e.g., AMI to B8ZS). This is necessary because different telecommunication lines may use varying signaling standards.exclamation

Signal Regeneration: As signals travel over long distances, they can weaken and degrade.expand_more SmartJacks help regenerate the signal, ensuring that it maintains its strength and integrity throughout the transmission.expand_more

Why other options are incorrect:

Concentration point: SmartJacks are not primarily used as concentration points for dial-in/out connections.exclamation This function is typically handled by modems or other specialized devices.exclamation

Layer 2 operation: SmartJacks primarily operate at Layer 1 (Physical Layer) of the OSI model, focusing on the physical transmission of signals.

Channel Testing: While some SmartJacks may offer some basic channel testing capabilities, their primary functions are signal conversion and regeneration.

SmartJack (Wikipedia): https://en.wikipedia.org/wiki/Smartjack

This configuration describes a crossover cable. A crossover cable is used to connect two similar devices directly, such as two computers or two switches, without the need for an intermediate device like a router. The wires at one end of a crossover cable are in reverse sequence to the wires at the other end, which allows the transmit and receive signals to be properly aligned between the two devices. This is different from a straight-through cable, where the wire sequence is the same at both ends1.
