VMware 2V0-41.23 Practice Test - Questions Answers

According to the VMware NSX 4.x Professional documents and tutorials, BFD is a failover detection protocol that provides fast and reliable detection of link failures between two routing devices.BFD can be used with ECMP routing to monitor the health of the ECMP paths and trigger a route change in case of a failure12.BFD is supported by both BGP and OSPF routing protocols in NSX-T3.BFD can also be configured with different timers to achieve different detection times3.

Unicast is the traffic type that an NSX administrator should use for validating connectivity between App and DB virtual machines that reside on different segments.According to the VMware documentation1, unicast traffic is the traffic type that is used to send a packet from one source to one destination.Unicast traffic is the most common type of traffic in a network, and it is used for applications such as web browsing, email, file transfer, and so on2.To perform a traceflow with unicast traffic, the NSX administrator needs to specify the source and destination IP addresses, and optionally the protocol and related parameters1.The traceflow will show the path of the packet across the network and any observations or errors along the way3. The other options are incorrect because they are not suitable for validating connectivity between two specific virtual machines.Multicast traffic is the traffic type that is used to send a packet from one source to multiple destinations simultaneously2.Multicast traffic is used for applications such as video streaming, online gaming, and group communication4.To perform a traceflow with multicast traffic, the NSX administrator needs to specify the source IP address and the destination multicast IP address1.Broadcast traffic is the traffic type that is used to send a packet from one source to all devices on the same subnet2. Broadcast traffic is used for applications such as ARP, DHCP, and network discovery.To perform a traceflow with broadcast traffic, the NSX administrator needs to specify the source IP address and the destination MAC address as FF:FF:FF:FF:FF:FF1. Anycast traffic is not a valid option, as it is not supported by NSX Traceflow. Anycast traffic is a traffic type that is used to send a packet from one source to the nearest or best destination among a group of devices that share the same IP address. Anycast traffic is used for applications such as DNS, CDN, and load balancing.

The insertion point for East-West network introspection is the Guest VM vNIC. Network introspection is a service insertion feature that allows third-party network services to be integrated with NSX. Network introspection enables traffic redirection from the Guest VM vNIC to a service virtual machine (SVM) that runs the partner service.The SVM can then inspect, monitor, or modify the traffic before sending it back to the original destination1. The other options are incorrect because they are not the insertion points for East-West network introspection. The Tier-0 router is used for North-South routing and network services. The partner SVM is the service virtual machine that runs the partner service, not the insertion point. The host physical NIC is not involved in network introspection.References:Network Introspection Settings

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/installation/GUID-14183A62-8E8D-43CC-92E0-E8D72E198D5A.html

Two tools that are used for centralized logging in VMware NSX areSyslog ServerandVMware Aria Operations for Logs.Syslog Server is a standard protocol for sending log messages from various network devices to a centralized server1.VMware NSX supports syslog for long term retention of logs and all NSX components can send syslog messages to a configured syslog server2.VMware Aria Operations for Logs is a VMware product that provides intelligent log analytics for NSX3.It provides monitoring and troubleshooting capabilities and customizable dashboards for network virtualization, flow analysis, and alerts3. The other options are incorrect because they are not tools for centralized logging in VMware NSX.VMware Aria Operations is a VMware product that provides operations management and automation for NSX4, but it is not the same as VMware Aria Operations for Logs.VMware Aria Automation is a VMware product that provides automation and orchestration for NSX5, but it is not related to logging. VMware Aria Operations for Networks is not a valid product name.References:Syslog,NSX Logging and System Events,VMware vRealize Log Insight for NSX,VMware vRealize Operations Management Pack for NSX,VMware vRealize Automation

The sequence of commands that could be used to check the BGP connection status between the Tier-O Gateway and the upstream physical router on NSX Edge node isget gateways, vrf <number>, get bgp neighbor.These commands can be executed on the NSX Edge node CLI after logging in as admin6.The first command,get gateways, displays the list of logical routers (gateways) configured on the Edge node, along with their IDs and VRF numbers7.The second command,vrf <number>, switches to the VRF context of the desired Tier-O Gateway, where <number> is the VRF number obtained from the previous command7.The third command,get bgp neighbor, displays the BGP neighbor summary for the selected VRF, including the neighbor IP address, AS number, state, uptime, and prefixes received8. The other options are incorrect because they either use invalid or incomplete commands or do not switch to the correct VRF context.References:NSX-T Command-Line Interface Reference,NSX Edge Node CLI Commands,Troubleshooting BGP on NSX-T Edge Nodes

According to the VMware Knowledge Base article1, the CLI command to set the log level of the NSX Manager to debug mode is set service manager logging-level debug.This command can be used when the NSX UI is inaccessible or when troubleshooting issues with the NSX Manager1. The other commands are incorrect because they either use a wrong syntax or a wrong service name.The NSX Manager service name is manager, not nsx-manager2.The log level parameter is logging-level, not log-level3.

https://kb.vmware.com/s/article/55868

SNAT stands for Source Network Address Translation. It is a type of NAT that translates the source IP address of outgoing packets from a private address to a public address.SNAT is used to allow hosts in a private network to access the internet or other public networks1

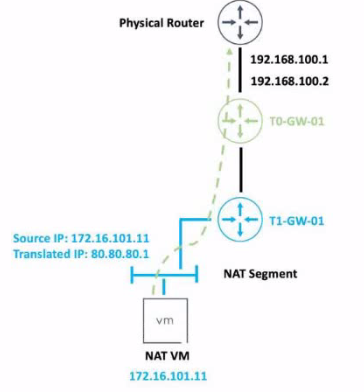

In the exhibit, the administrator wants to change the private IP address of the NAT VM 172.16.101.11 to a public address of 80.80.80.1 as the packets leave the NAT-Segment network. This is an example of SNAT, as the source IP address is modified before the packets are sent to an external network.

According to the VMware NSX 4.x Professional Exam Guide, SNAT is one of the topics covered in the exam objectives2

To learn more about SNAT and how to configure it in VMware NSX, you can refer to the following resources:

VMware NSX Documentation: NAT3

VMware NSX 4.x Professional: NAT Configuration4

VMware NSX 4.x Professional: NAT Troubleshooting5

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-7AD2C384-4303-4D6C-A44A-DEF45AA18A92.html

VMware NSX is a portfolio of networking and security solutions that enables consistent policy, operations, and automation across multiple cloud environments1

The VMware NSX portfolio includes the following solutions:

VMware NSX Data Center: A platform for data center network virtualization and security that delivers a complete L2-L7 networking stack and overlay services for any workload1

VMware NSX Cloud: A service that extends consistent networking and security to public clouds such as AWS and Azure1

VMware NSX Advanced Load Balancer: A solution that provides load balancing, web application firewall, analytics, and monitoring for applications across any cloud12

VMware NSX Distributed IDS/IPS: A feature that provides distributed intrusion detection and prevention for workloads across any cloud12

VMware NSX Intelligence: A service that provides planning, observability, and intelligence for network and micro-segmentation1

VMware NSX Federation: A capability that enables multi-site networking and security management with consistent policy and operational state synchronization1

VMware NSX Service Mesh: A service that connects, secures, and monitors microservices across multiple clusters and clouds1

VMware NSX for Horizon: A solution that delivers secure desktops and applications across any device, location, or network1

VMware NSX for vSphere: A solution that provides network agility and security for vSphere environments with a built-in console in vCenter1

VMware NSX-T Data Center: A platform for cloud-native applications that supports containers, Kubernetes, bare metal hosts, and multi-hypervisor environments1

VMware Tanzu Kubernetes Grid and VMware Tanzu Kubernetes Cluster are not part of the VMware NSX portfolio. They are solutions for running Kubernetes clusters on any cloud3

VMware Aria Automation is not a real product name. It is a fictional name that does not exist in the VMware portfolio.

https://blogs.vmware.com/networkvirtualization/2020/01/nsx-hero.html/
