How is multicast routing enabled on devices in the Cisco SD-WAN overlay network?
The WAN Edge routers originate multicast service routes to the vSmart controller via OMP, which then forwards joins for requested multicast groups based on IGMP v1 or v2 toward the source or PIM-RP as specified m the original PIM join message.
The vSmart controller originates multicast service routes to the WAN Edge routers via OMP, which then forwards joins for requested multicast groups cased on IGMP v1 or v2 toward the source or PlMRP as specified m the original PIM join message
The vSmart controller originates multicast service routes to the WAN Edge routers via OMP, which then forwards joins (or requested multicast groups based on IGMP v2 or v3 toward the source or PIM-RP as specified in the original PIM join message
The WAN Edge routers originate multicast service routes to the vSmart controller via OMP. which then forwards joins for requested multicast groups based on iGMP v2 or v3 toward the source or PIM-RP as specified in the original PIM join message
What is an attribute of TLOC'?
encryption
local preference
tag
service

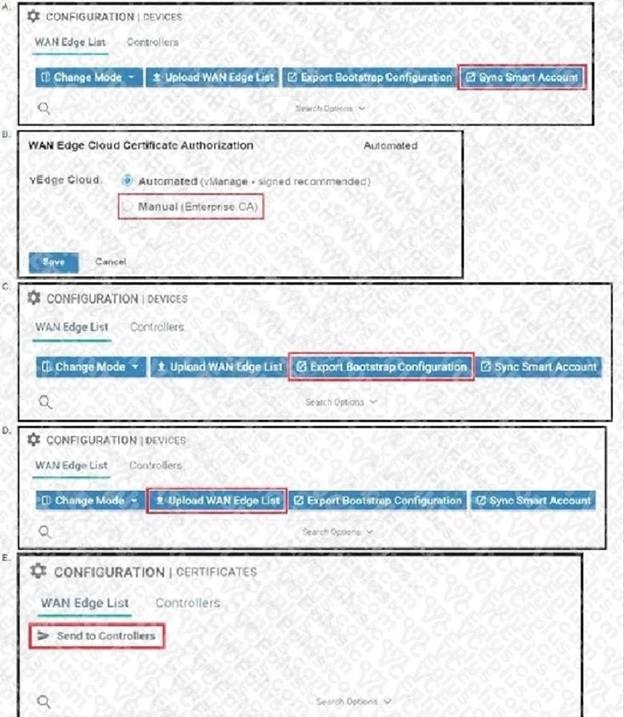

An administrator must deploy the controllers using the On-Prem method while vManage can access the PnP portal from inside How are the two WAN Edge authorized allowed lists to be made available to vManage? (Choose two)
Option A
Option B
Option C
Option D
Option E
An engineer must configure a centralized policy on a site in which all HTTP traffic should use thePublic Internet circuit if the loss on this circuit is below 10%. otherwise MPLS should be used Whichconfiguration wizard fulfils this requirement?
Create Applications or Groups of Interest > Configure Traffic Rules > Apply Policies to Sites and VPNs
Configure VPN Membership > Apply Policies to Sites and VPNs
Create Applications or Groups of interest > Configure Traffic Data > Apply Policies to Sites and VPNs
Configure Topology > Apply Policies to Sites and VPNs

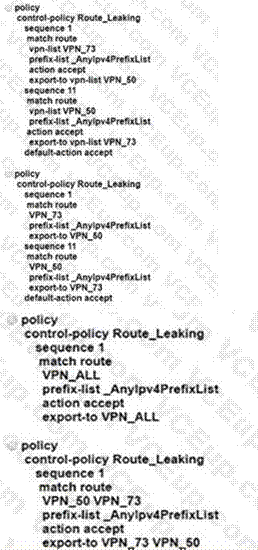

An enterprise has several sites with multiple VPNs that are isolated from each other A new requirement came where users in VPN 73 must be able to talk to users in VPN 50 Which configuration meets this requirement?
Option A
Option B
Option C
Option D
An engineer must use data prefixes to configure centralized data policies using the vManage policy configuration wizard. What is the first step to accomplish this task?
Create groups of interest
Configure network topology.
Configure traffic rules.
Apply policies to sites and VPNs.

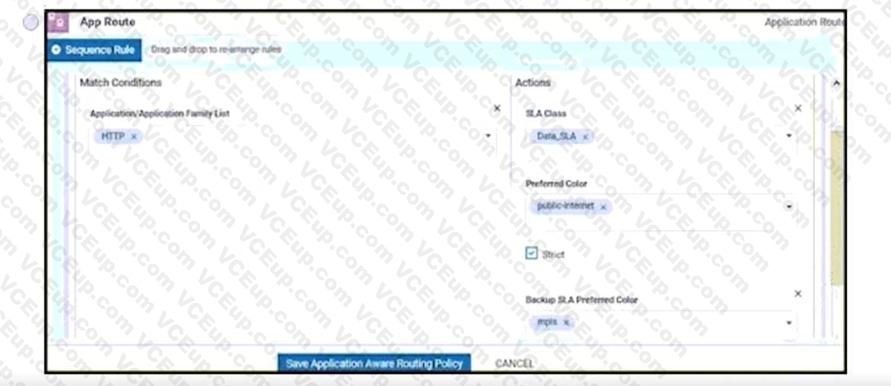

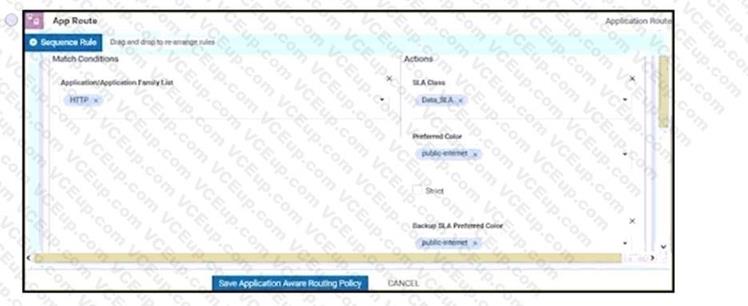

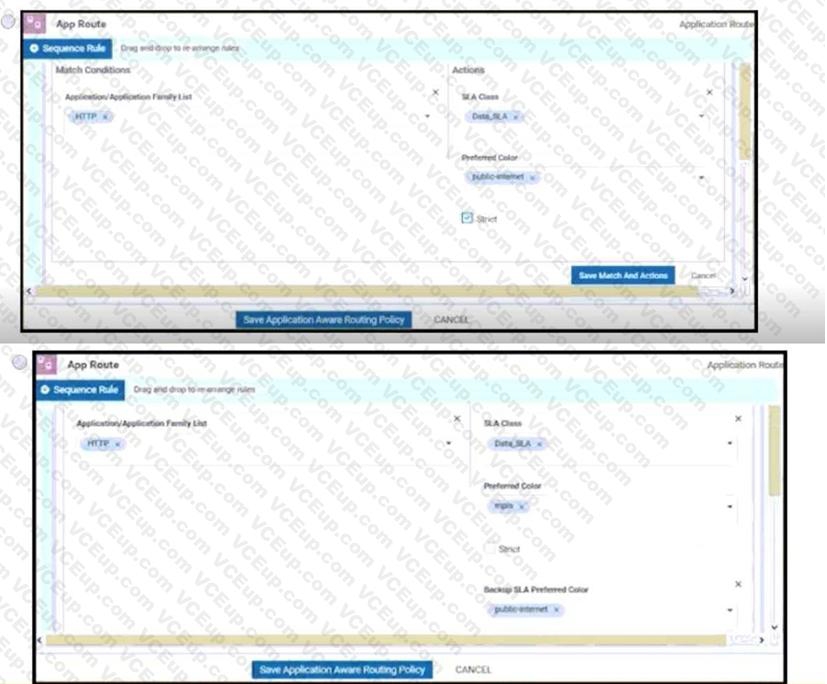

An engineer must improve video quality by limiting HTTP traffic to the Internet without any failover.
Which configuration in vManage achieves this goal?
Option A
Option B
Option C
Option D

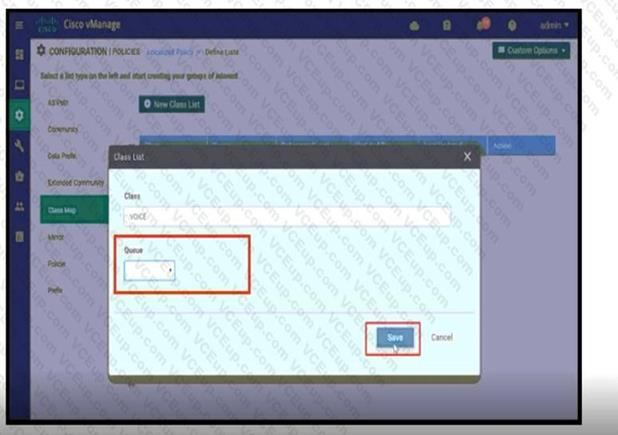

Refer to the exhibit. A network administrator is setting the queueing value for voice traffic for one of the WAN Edge routers using vManager GUI. Which queue value must be set to accomplish this task?
0
1
2
3
Refer to the exhibit The Cisco SD-WAN network is configured with a default full-mesh topology.
Islamabad HQ and Islamabad WAN Edges must be used as the hub sites. Hub sites MPLS TLOC must be preferred when forwarding FTP traffic based on a configured SLA class list. Which policy configuration does the network engineer use to call the SLA class and set the preferred color to MPLS?
Localized Policy, Route Policy
Centralized Policy, Traffic Policy
Localized Policy, Forwarding Class
Centralized Policy Topology
Which set of elements are verified by the controller to confirm the identity of edge devices?
certificates, organization name and serial number of the device
organization name serial number and system IP of the device
certificates, organization name, and vBond domain
certificates, system IP, and vBond domain
