How is an event monitored and reported for an individual device in the overlay network at site ID:S4300T6E43F36?
The device sends event notifications to vManage.
The device sends notifications to vSmart that sends them to vManage.
The device sends a critical alarm of events to vManage.
The device sends a critical alarm to vSmart that sends it to vManage.

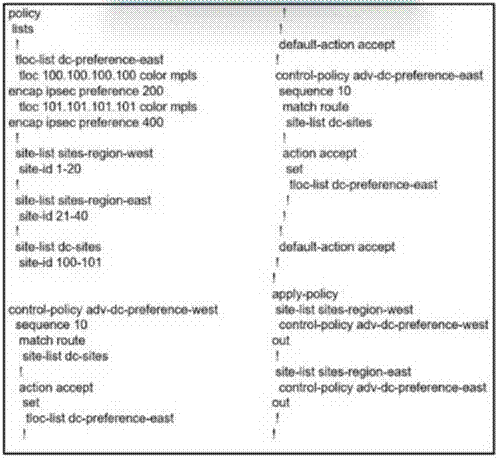

Refer to the exhibit.

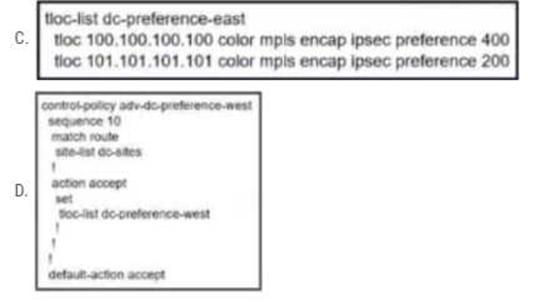

A customer wants to implement primary and secondary Cisco SD-WAN overlay routing for prefixes that are advertised for both data centers. The east data center (TLOC 101.101.101.101) is primary for east sites, and the west data center (TLOC 100.100.100.100) is primary for west sites. Which configuration change achieves this objective?

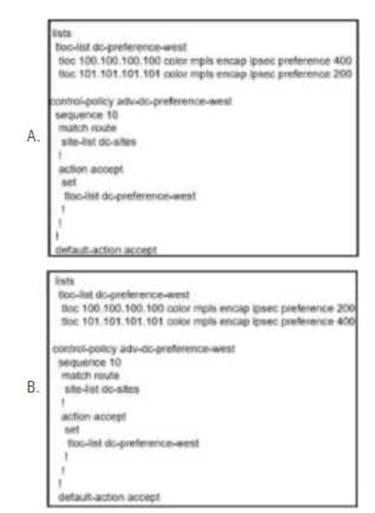

Option A
Option B
Option C
Option D
Which protocol is configured on tunnels by default to detect loss, latency, jitter, and path failures in Cisco SD-WAN?
TLS
BFD
OMP
BGP
How many subnets are necessary in Azure VNet for a WAN Edge device to function in the cloud deployment?
CSR is the WAN Edge device that is supported in the Microsoft cloud. The Microsoft underlay cloud fabric performs the management function.
There must be three subnets in VNet: management, public, and services.
One public subnet is required in VNet. The Microsoft underlay cloud fabric performs all of the routing functions for WAN Edge.
Public and services subnets are required in VNet. The Microsoft underlay cloud fabric performs the management function.

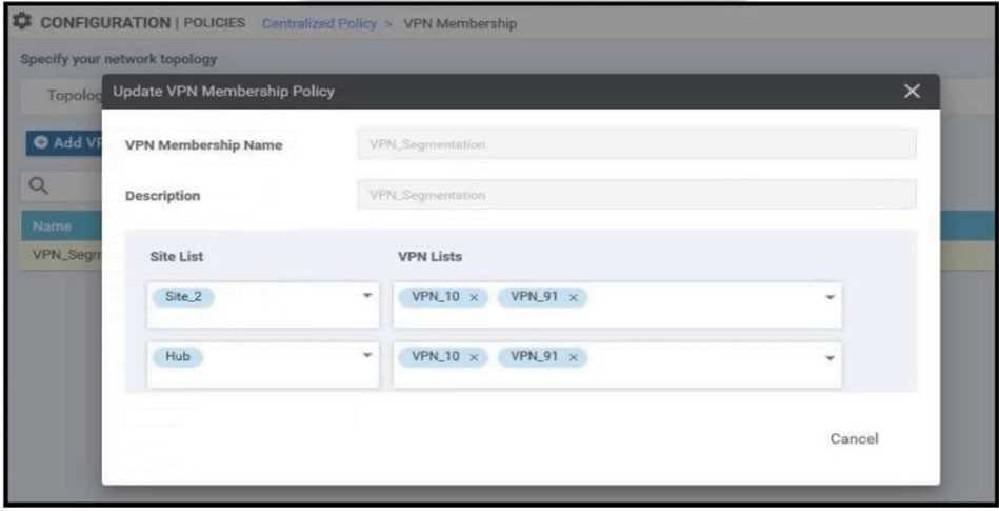

Refer to the exhibit.

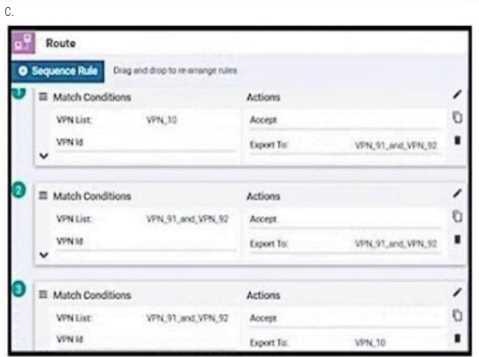

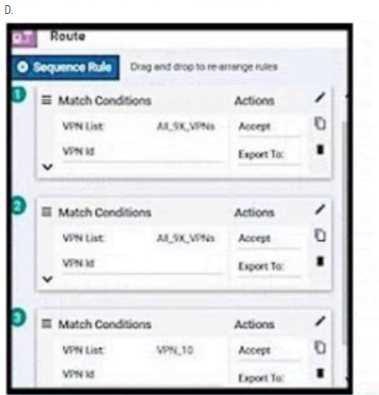

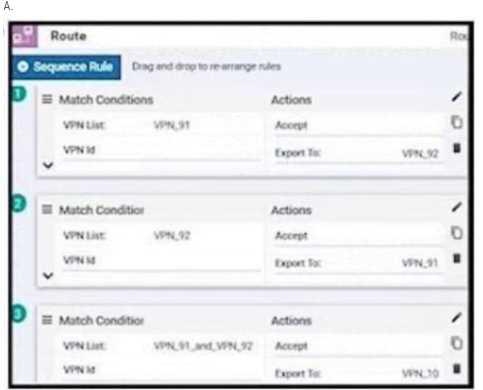

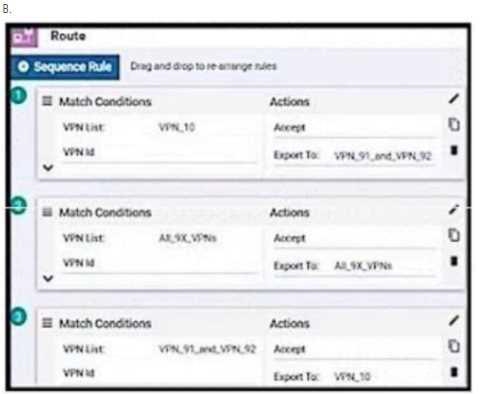

An enterprise has hub and spoke topology where it has several VPNs. An engineer must allow users in VPN91 to reach users in VPN92 and VPN10 to reach VPN91 and VPN92. Which configuration meets these requirements?
Option A
Option B
Option C
Option D

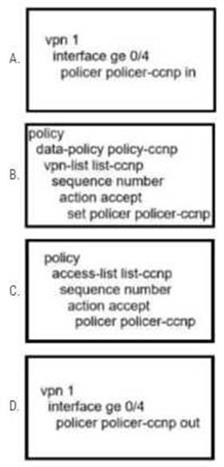

An administrator wants to create a policy to add a traffic policer called "politer-ccnp" to police data traffic on the WAN Edge. Which configuration accomplishes this task in vSmart?
Option A
Option B
Option C
Option D
Which table is used by the vSmart controller to maintain service routes of the WAN Edge routers in the hub and local branches?
RIB
FIB
OMP
TLOC

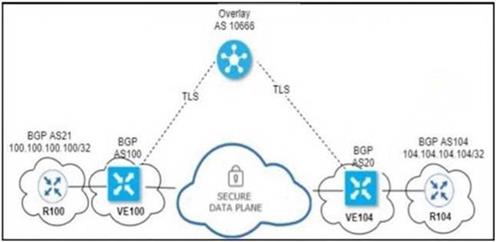

Refer to the exhibit.
An engineer configured OMP with an overlay-as of 10666. What is the AS-PATH for prefix 104.104.104.104/32 on R100?
100 10666
100 20 104
100 10666 20 104
100 10666 104
Which policy tracks path characteristics such as loss, latency, and jitter in vManage?
VPN
control
app-route
data
Refer to the exhibit.

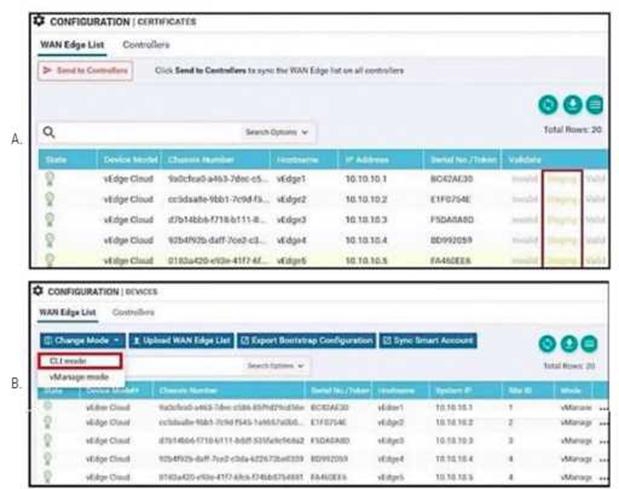

An organization is testing a Cisco SD-WAN solution and decided to have the control plane established first and not the data plane at the time of migration. Which configuration achieves this goal?

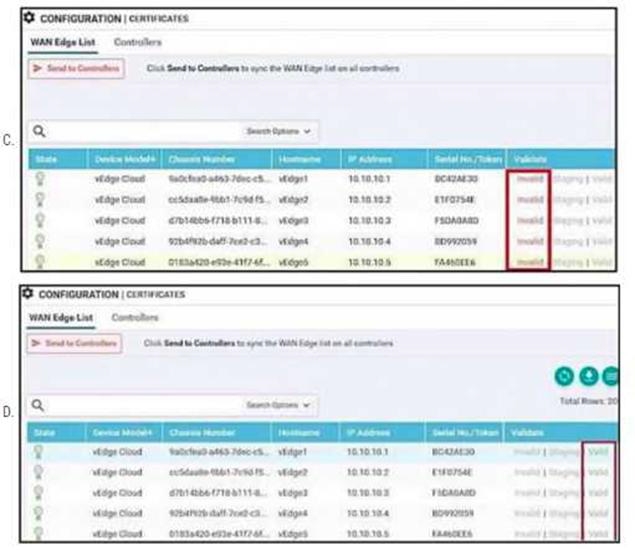

Option A
Option B
Option C
Option D
