Which protocol is used to propagate multicast join requests over the Cisco SD-WAN fabric?
ARP
Auto-RP
OMP
IGMP
Which two REST API functions are performed for Cisco devices in an overlay network? (Choose two)
distributing a Snort image among devices
attaching a device configuration template
managing connections for smart licensing
monitoring device certificates
querying a device and aggregating statistics
Which OMP route is selected for equal OMP route preference values on WAN Edge routers?
route with higher TLOC preference value
route with origin type of connected
route with origin type of static
route with lower TLOC preference value
Refer to the exhibit

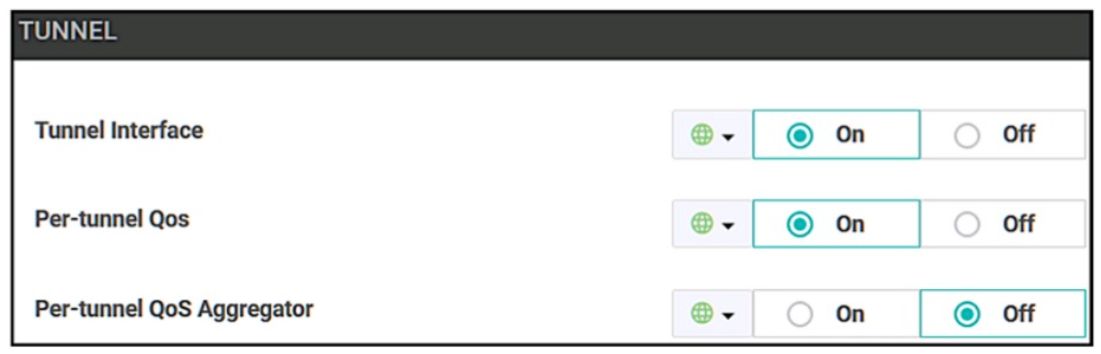

Refer to the exhibit A user has selected the options while configuring a VPN Interface Ethernet feature template What is the required configuration parameter the user must set in this template for this feature to function?
The 'IP MTU' field must be increased from the default value of 1500 to support the additional overhead.
The 'Shaping Rate (Kbps)' field must be configured with a value
The 'Adaptive QoS' field must be set to 'on'
The 'Bandwidth Downstream' field must be configured with a value
REST applications communicate over HTTP or HTTPS to make calls between network devices. Which two HTTPS standard methods are included? (Choose two.)
Array
DELETE
POST
Scalar
Object
Which set of platforms must he in separate VMS as of release 16.1?
vSmart and WAN Edge
WAN Edge and vBond
vManagc and vSmart
vBond and vSmart
Which platform cannot provide IPS and URL filtering capabilities?
Cisco CSR 1000V
Cisco ISR 1000
Cisco Catalyst 8300
Cisco ISR 4000
An enterprise has these three WAN connections:
public Internet
business internet
MPLS
An engineer must configure two available links to route traffic via both links. Which configuration achieves this objective?
Option A
Option B
Option C
Option D

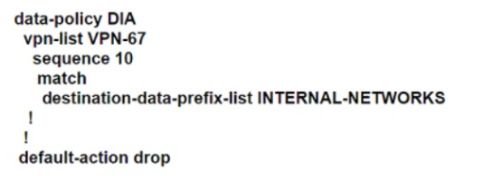

An engineer modifies a data policy for DIA in VPN 67. The location has two Internet-bound circuits. Only the web browsing traffic must be admitted for DIA. without further discrimination about which transport to use. Here is the existing data policy configuration:

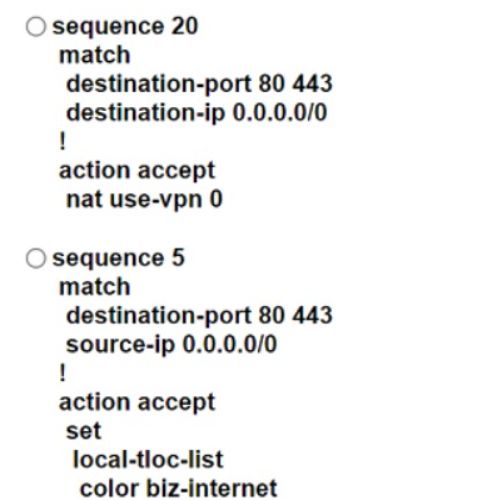

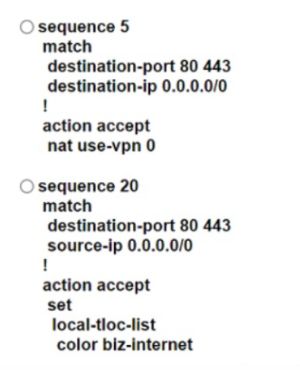

Which policy configuration sequence meets the requirements?
Option A
Option B
Option C
Option D
Which two vRoute attributes should be matched or set in vSmart policies and modified by data policies? (Choose two.)
site ID
preference
VPN
TLOC
origin
