An engineer must configure local redundancy on a site. Which configuration accomplish this task?
vpn 0 interface interface-name
tloc extension interlace name tloc extension interface interface name
vpn 0 tloc extension interface
interface-flame interface interface-name tloc-extension
Which type of policy must be applied on a WAN Edge application-aware firewall to control traffic between two or more VPNs?
service-insertion policy
data policy
firewall policy
control policy
Refer to the exhibit

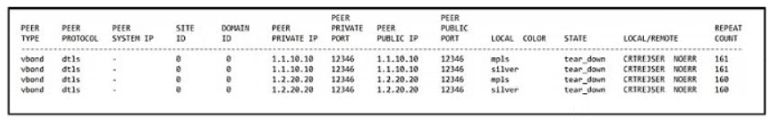

Refer to the exhibit A WAN Edge device was recently added to vManage but a control connection could not be established Which action resolves this issue?
Rectify the Rod CA certificate mismatch on WAN Edge devices
Install the bootstrap code on WAN Edge and check for CSR
Send the serial number to vBond from the vManage controller.
Resolve the ZTP reachability and rectify smart account credentials issue
What are the default username and password for vSmart Controller when it is installed on a VMware ESXi hypervisor'?
username Cisco password admin
username admin password Cisco
username Cisco password Cisco
username admin password admin
Which SD-WAN component allows an administrator to manage and store software images for SD-WAN network elements?
vGond controllers
WAN Edge routers
vSman controllers
vManage NMS
An engineer is applying QoS policy for the transport-side tunnel interfaces to enable scheduling and shaping for a WAN Edge cloud router Which command accomplishes the task?
cloud-qos-service-side
qos-scheduler QOS_0
qos-map QOS
rewrite-rule QOS-REWRITE
Refer to the exhibit
Refer to the exhibit The network team must configure application-aware routing for the Service VPN 50.0.0.0/16 The SLA must prefer MPLS for video traffic but the remaining traffic must use a public network What must be defined other than applications before the application-aware policy is create?
SLA Class, Site VPN. Prefix
Data Prefix, Site VPN TLOC
Application, SLA VPN. Prefix
Color, SLA Class, Sue, VPN
Which two different states of a WAN Edge certificate are shown on vManage? (Choose two.)
inactive
active
staging
invalid
provisioned
Which two mechanisms are used by vManage to ensure that the certificate serial number of the WAN Edge router that is needed to authenticate is listed in the WAN Edge Authorized Seal Number Hst' (Choose two)
Synchronize to the PnP
Manually upload it to vManage
The devices register to vManage directly as the devices come online
The vManage is shipped with the list
Synchronize to the Smart Account
Which protocol runs between the vSmart controllers and WAN Edge routers when the vSmart controller acts like a route reflector?
OMP outside the DTLS/TLS control connection
BGP inside the DTLS/TLS
IPsec inside the DTLS/TLS control connection
OMP inside the DTLS/TLS control connection
